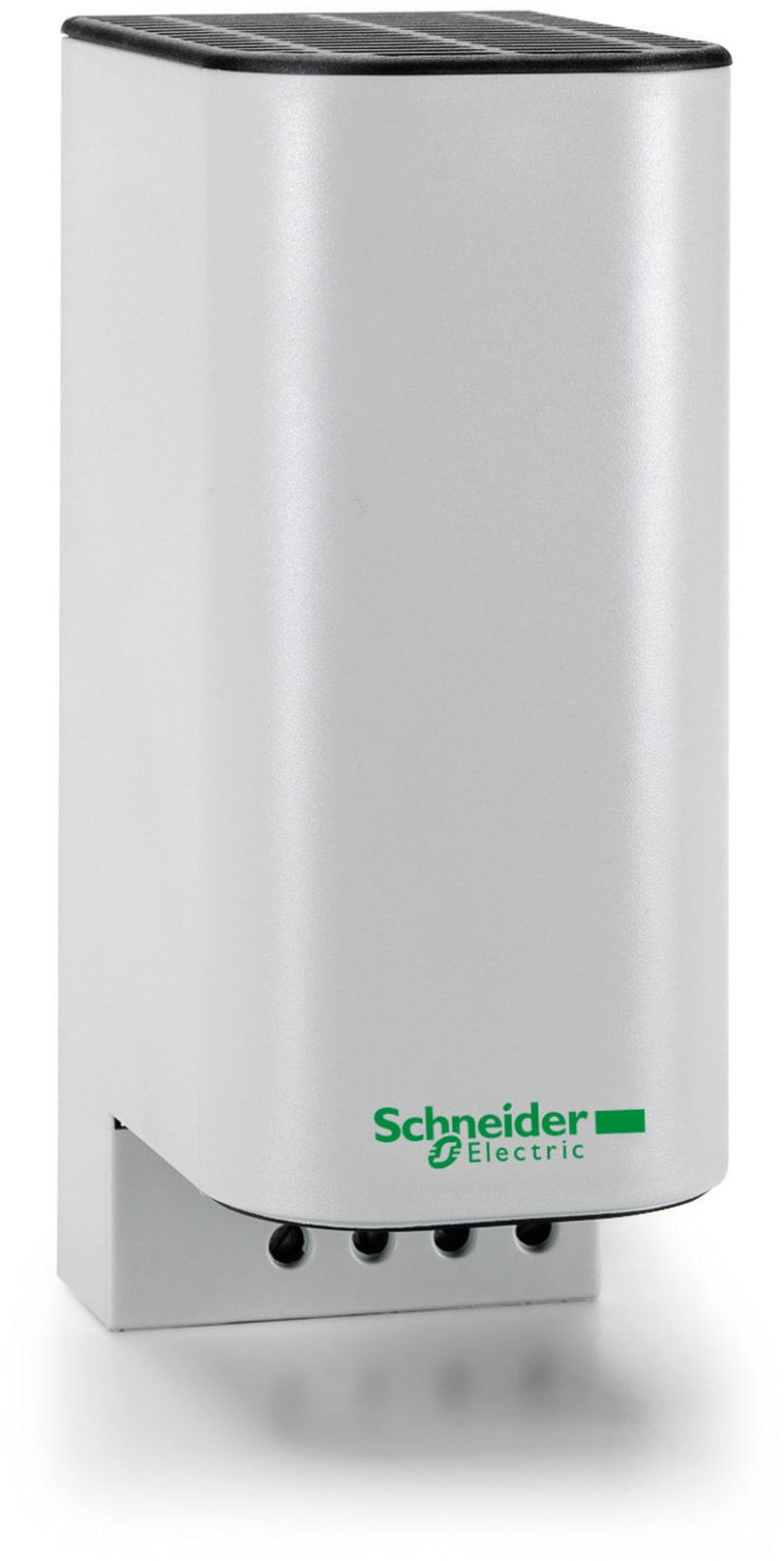

Schneider Electric ClimaSys PTC heating resistance 50W,270-420V insulate NSYCR50WU3C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR50WU3C Heating element 55W 270-420V AC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR50WU3C
- EAN / GTIN
- 3606480152306
- Sales unit
- pcs
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 50 W
- Input voltage
- 270...420 V AC/DC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- UL; VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 110 mm
- Width
- External: 60 mm
- Depth
- External : 90 mm
- Condition of use
- Electrical protection is needed; Air sealed enclosure; Heaters must be installed with a thermal controller
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 12.500 cm
- Package 1 Weight
- 338.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 40
- Package 2 Height
- 40.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 16.900 kg
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- AC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 55 W
- Operating voltage AC 50 Hz
- 270–420 V
- Operating voltage AC 60 Hz
- 270–420 V
- Continuous heating power at 10 °C
- 55 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152306
- SAP 1000089021
- Code 8838009
Product Documentation
