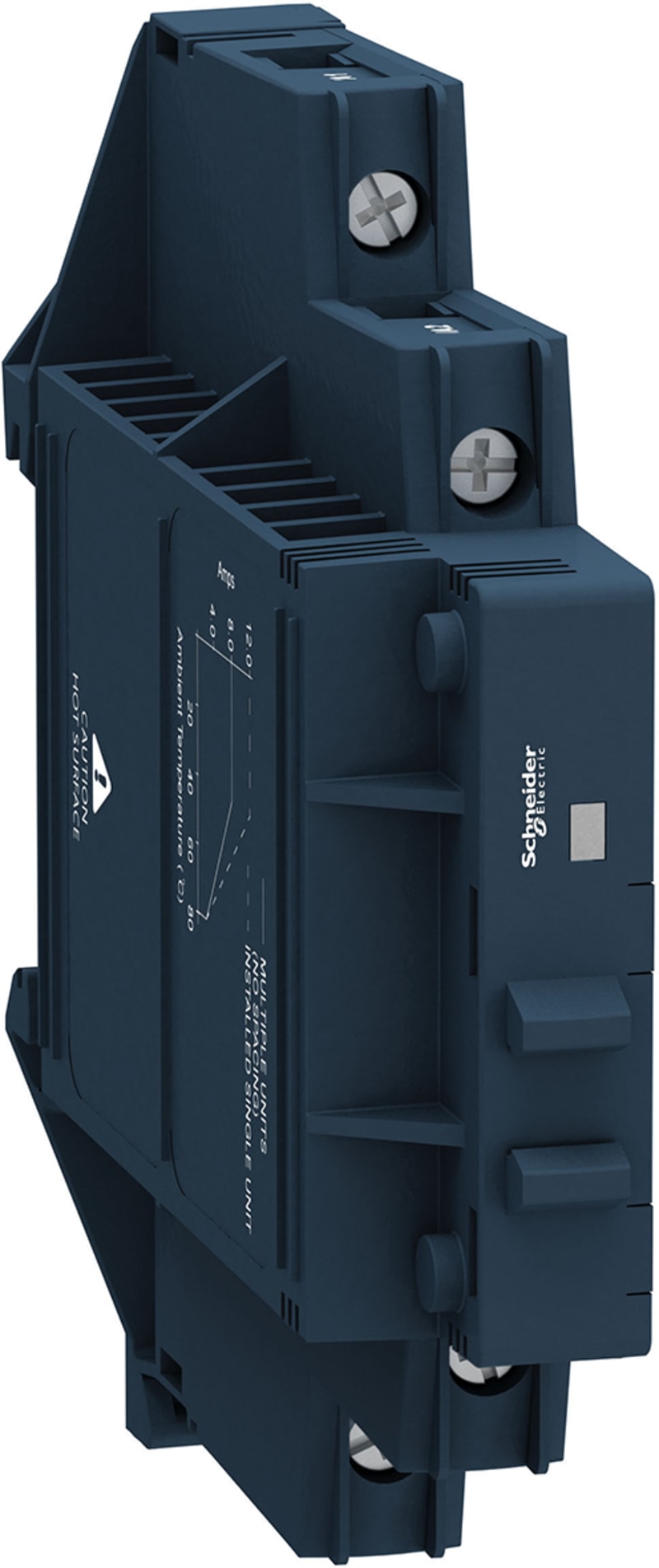

Schneider Electric Solid state modular relay, 12 A, zero voltage switching, input 200…265 V AC, output 24...280 V AC SSM1A112P7

Schneider Electric SSM1A112P7 1 phase SSR 280VAC 12A 230V.

Manufacturer part number (MPN)

SSM1A112P7 EAN / GTIN: 3606480579509 Sales unit: pcs Package quantity: 72 pcs Range of product: Harmony Solid State Relays Device short name: SSM Product or component type: Modular DIN rail relay Number of channels: 1 Number of phases: 1 phase Output switching mode: Zero voltage switching Product configuration type: Relay configuration Mounting support: Symmetrical DIN rail [In] rated current: 12 A Output voltage: 24...280 V AC [Uc] control circuit voltage: 200...265 V AC Tightening torque: 0.5...0.8 N.m for input; 0.5...0.8 N.m for output Connections - terminals: Screw terminals: 1 x 0.3...1 x 1.5 mm², (22 AWG...16 AWG) for input; Screw terminals: 1 x 0.3...1 x 2.5 mm², (22 AWG...14 AWG) for output maximum capacitance: 10 pF for input/output Insulation resistance: 1000 MOhm at 500 V DC Local signalling: LED (green) for input status minimum switching voltage: 200 V AC turn-on Maximum switching voltage: 90 V AC turn-off input current: 2.5…3.5 mA Solid state output type: SCR output; Zero voltage switching Load current: 0.15…12 A transient overvoltage: 600 V Surge current: 715 A for 16.6 ms; 750 A for 20 ms Maximum voltage drop: <1.3 V on-state Motor power hp: 0.33 hp 40 °C 240 V AC Maximum I²t for fusing: 2560 A².s for 10 ms at 50 Hz; 2330 A².s for 8.33 ms at 60 Hz Maximum leakage current: 0.1 mA off-state DV/dt: 500 V/µs off-state at maximum voltage Response time: 0.5 cycle (turn-on); 30 ms (turn-off) power factor: 0.5 (with maximum load) Overvoltage category: III Width: 18 mm Height: 90.3 mm test button: Without test button Depth: 83.7 mm Product weight: 0.09 kg Device presentation: Complete product Flame retardance: V0 conforming to UL 94 Dielectric strength: 4 kV AC for input/output; 4 kV AC for input or output to case Pollution degree: 2 Standards: IEC 60950-1; IEC 61000; IEC 62314 Product certifications: CSA; UL Marking: CE IP degree of protection: IP20 Ambient air temperature for operation: -30…80 °C Ambient air temperature for storage: -30…100 °C Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 2.5 cm Package 1 Width: 9.0 cm Package 1 Length: 9.5 cm Package 1 Weight: 92.0 g Unit Type of Package 2: S02 Number of Units in Package 2: 72 Package 2 Height: 15.0 cm Package 2 Width: 30.0 cm Package 2 Length: 40.0 cm Package 2 Weight: 6.996 kg Country of origin: MX Warranty (in months): 18 Voltage type for actuating: AC Rated operation current Ie at AC-1: 12 A Rated operation current Ie at AC-3: 12 A Rated operation current Ie at AC-51: 12 A Rated operation current Ie at AC-53a: 12 A Rated operation current Ie at AC-53b: 12 A Suitable for distribution board: Yes Switching at zero-crossing: No

HS Code

8536.41

• EAN 3606480579509
• SAP 1000665064
• Code 8672803
