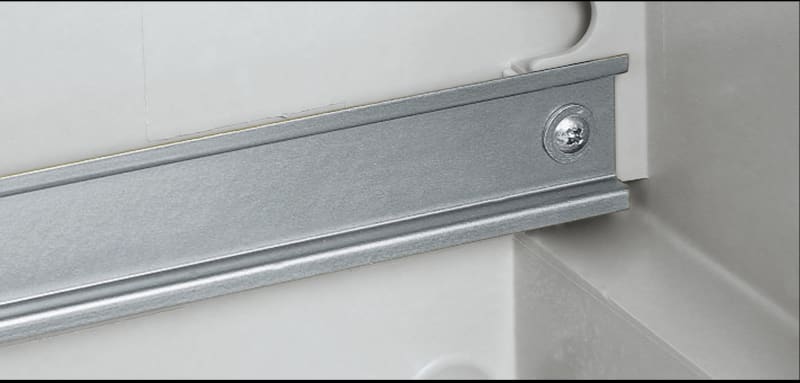

SYM.35MM RAILPLM75 (NSYCS500PLM)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCS500PLM Sym.35mm skinnePLM75.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCS500PLM
- EAN / GTIN
- 3606480191664
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Mounting support
- Plastic nut
- Range compatibility
- PanelSeT PLM
- Device composition
- 1 rail
- Quantity per set
- Set of 2
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By fixing element - rear of enclosure location
- Adjustment
- DIN rail adjustment in height, pitch 25 mm
- Length
- 510 mm
- Height
- 35 mm
- Width
- 7.2 mm
- thickness
- 1 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.000 cm
- Package 1 Width
- 3.500 cm
- Package 1 Length
- 52.000 cm
- Package 1 Weight
- 178.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 2
- Package 2 Height
- 2.000 cm
- Package 2 Width
- 5.000 cm
- Package 2 Length
- 52.000 cm
- Package 2 Weight
- 356.000 g
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/7.5 mm
- Surface protection
- Continuously galvanised
- Material thickness
- 1 mm
- Punch shape
- Round hole
- Drill hole distance centrically
- 480 mm
- Surface finishing
- Galvanised
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480191664
- SAP 1000151134
- Code 8117895
