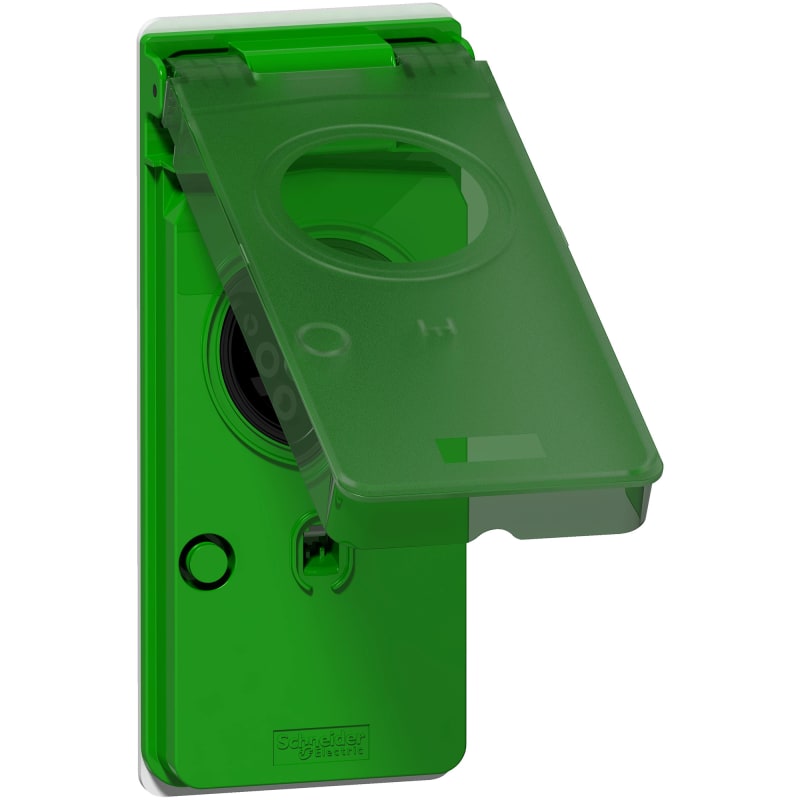

EV spare part T2S outlet with cover
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric EVP1PSS4 EVlink Parking T2S outlet with cover spare part.
Technical Specifications
- Manufacturer part number (MPN)
- EVP1PSS4
- EAN / GTIN
- 3606480785351
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- EVlink
- Product or component type
- Socket-outlet
- Socket-outlet type
- T2 with shutter
- Poles description
- 3P + N
- [Us] rated supply voltage
- 380...415 V AC 50/60 Hz
- Maximum supply current
- 32 A
- Range compatibility
- EVlink EVlink parking EVF2 charging station; EVlink EVlink parking EVW2 charging station; EVlink EVlink parking EVP2 enclosure
- Material
- Plastic
- Height
- 260 mm
- Width
- 110 mm
- Depth
- 80 mm
- Product weight
- 1.34 kg
- Colour
- Green
- IP degree of protection
- IP54 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Ambient air temperature for operation
- -30…50 °C
- Ambient air temperature for storage
- -40…80 °C
- Relative humidity
- 5…95 %
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- FR
- Model
- Charging socket outlet
- Standard
- Type 2
- Connection system
- Screw connection
- With interlocking actuator
- Yes
- With access interlocking
- Yes
- Nominal voltage
- 415 V
- Max. nominal current
- 32 A
- Type of current
- AC 3-phase
- Number of communication contacts
- 2
- Length of the fixed connection cable
- 0.12 m
- LED integrated
- Yes
- Cross section of the power contacts
- 10 mm²
- Surface treatment contacts
- Silver-plated
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606480785351
- SAP 1200401446
- Code 82425587
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-standing cabinet SFN 2000X1000X400 M.MOUNTING PL.
NSYSFN201040P
Schneider Electric
Schneider Electric Binary input REG-K/8X10, light grey MTN644592
Schneider Electric
PLUG 3L+N 110mm (AK5PC14)
Schneider Electric

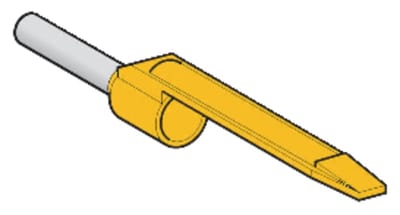

End ferrule 0,25 mm² wing norm
DZ5CA002
Schneider Electric

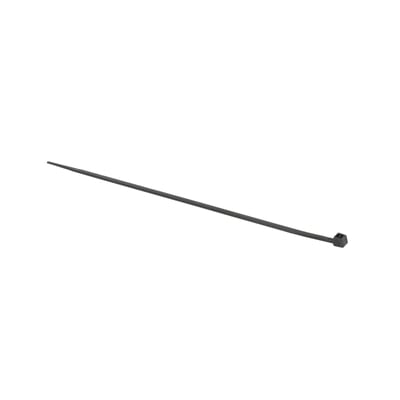

Schneider Electric Cable tie, Thorsman installation material, 120X2.5MM, black IMT46404
Schneider Electric

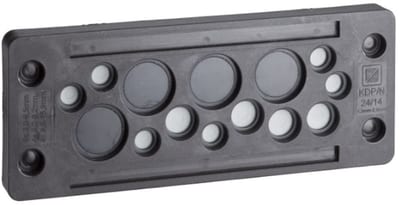

Schneider Electric PanelSeT IP65 cable-entry plate, 22 entries
NSYTSA2422SE
Schneider Electric

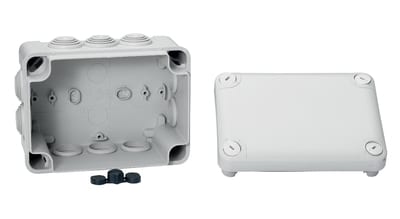

Connection Box 150X105X80 Grey
ENN05007
Schneider Electric

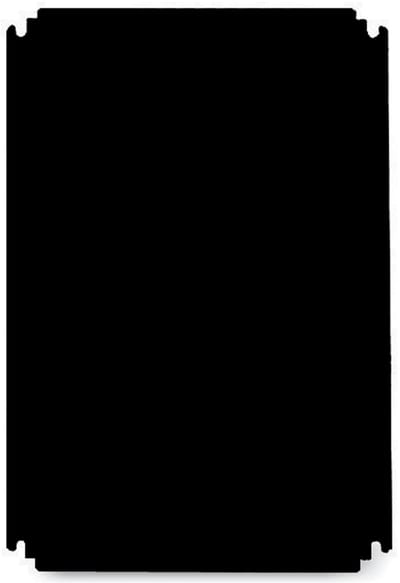

PLA712 bakelite mounting plate
