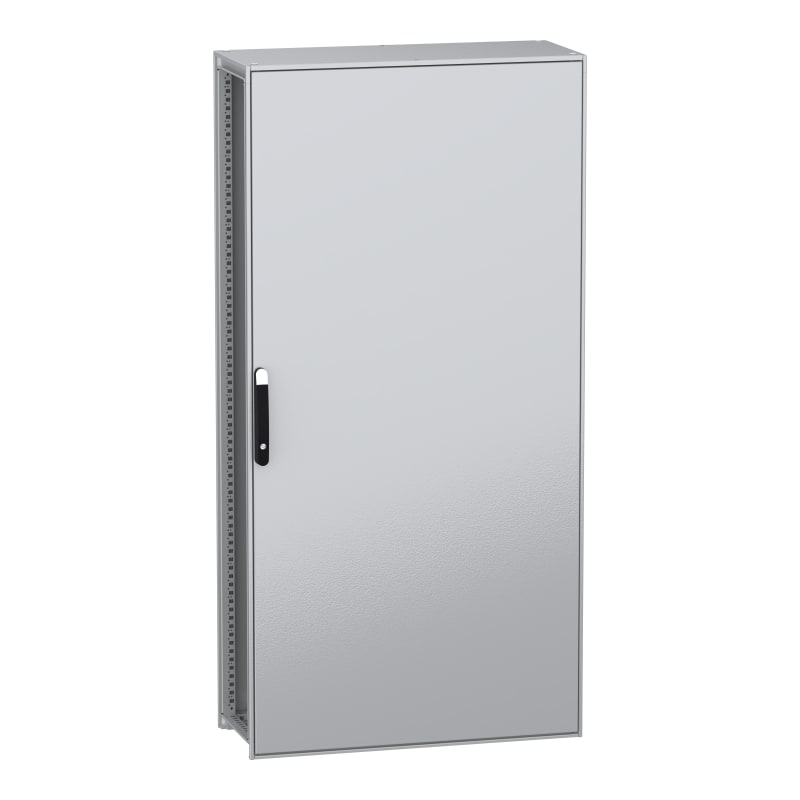

Floor-standing cabinet SFN 2000X1000X400 M.MOUNTING PL.

Schneider Electric NSYSFN201040P Floor-standing cabinet byggbart, PanelSeT SFN, with mounting plate, IP55, 2000x1000x400.

Manufacturer part number (MPN)

NSYSFN201040P

EAN / GTIN

3606486103395

Sales unit

pcs

Dimensions

2000×1000×400

Range

PanelSeT

Extended range

PanelSeT SFN

Application

Multi-purpose

Product or component type

Suitable enclosure

Enclosure nominal height

2000 mm

Enclosure nominal width

1000 mm

Enclosure nominal depth

400 mm

Enclosure mounting

Floor-standing

Device composition

2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 1 mounting plate

Structure type

Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure

Door opening side

Reversible (120 °)

Door type

Plain front

Mounting plate description

Plain

Type of gland plate

Without gland plate

Lock type

4 points lock, handle with 5 mm double bar insert front door

Number of doors

Front: 1 door(s)

Accessibility for operation

Rear; Sides of enclosure; Front

Removable parts

Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws

Material

Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass

Surface finish

Epoxy-polyester powder

Colour

Enclosure: grey (RAL 7035); Handle: black (RAL 9005)

Product weight

132.3 kg

Standards

IEC 62208; UL; CUL

NEMA degree of protection

NEMA 3R/12

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK10 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

2

Country of origin

FR

Warranty (in months)

18

Width

1000 mm

Height

2000 mm

Depth

400 mm

RAL-number

7035

With mounting plate

Yes

Number of locks

1

Suitable for wall mounting

No

EMC-version

No

With glazed door

No

Couplable

Yes

Impact strength

IK10

Degree of protection (IP)

IP55

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

Yes

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

Surface finishing

Powder coating

With rear door

No

Suitable for wall built-in

No

With cover

No

With door

Yes

Pitched roof

No

Pole fastening

No

Transparent cover

No

Suitable for outdoor installation

No

Floor standing wall model

Yes

Freestanding

No

Corner model

No

Intermediate mounting

Yes

HS Code

9403.20

• EAN 3606486103395
• SAP 1200727716
• Code 83867019
