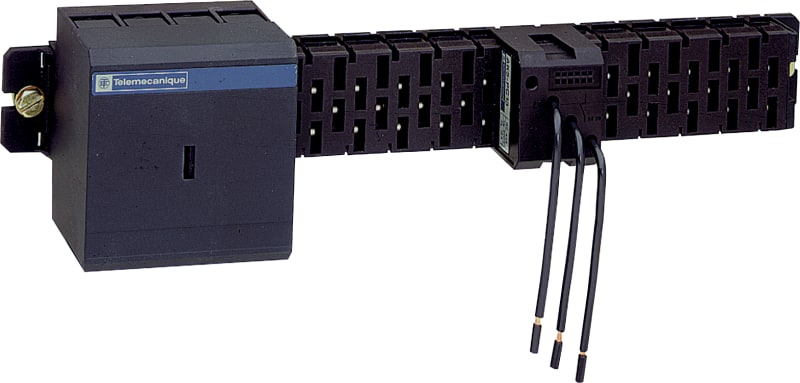

PLUG 3L+N 110mm (AK5PC14)

Schneider Electric AK5PC14 Busbar Plug 3L+N 11mm.

Manufacturer part number (MPN)

AK5PC14

EAN / GTIN

3389110576825

Sales unit

pcs

Package quantity

6 pcs

Range

Linergy

Product name

HK

Product or component type

Plug outlet

Poles description

3P + N

[Ith] conventional free air thermal current

16 A

I²t on activation

100000 A².s

Number of points

2

Number of cables

4 cable(s) 2.5 mm²

Cable length

0.2 m

Quantity per set

Set of 6

Width

36 mm

Height

46 mm

Depth

38 mm

Product weight

0.045 kg

[Ui] rated insulation voltage

600 V conforming to CSA; 600 V conforming to UL; 690 V conforming to IEC 60439-1

Peak current

25 kA

Standards

IEC 60439

Product certifications

DNV; LROS (Lloyds register of shipping); UL; CSA

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

90

Country of origin

FR

Warranty (in months)

18

Colour

Grey

RAL-number

7021

With locking

Yes

Protection

None

Number of conductors (without earthing)

4

Phase selection

No

Number of poles

3

Length

36 mm

Degree of protection (IP)

IP20

Branch off type

Cable

Rated voltage AC 50 Hz

400–690 V

Rated current AC 50 Hz

16 A

HS Code

8536.69

• EAN 3389110576825
• SAP 1000011982
• Code 894739
