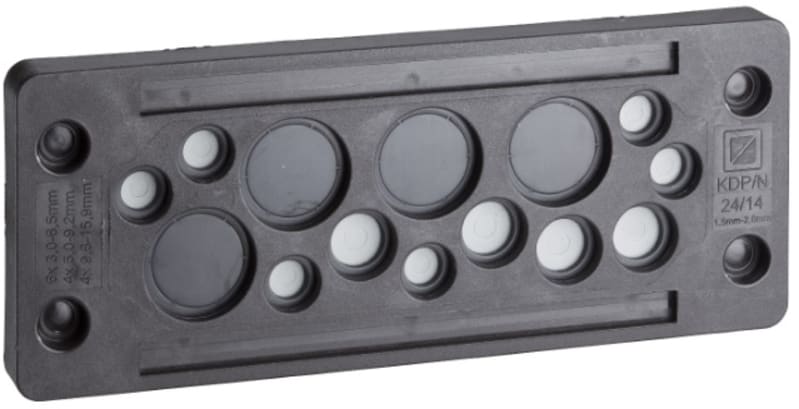

Schneider Electric PanelSeT IP65 cable-entry plate, 22 entries
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTSA2422SE is a PanelSeT quick cable-entry plate with 22 entries, supplied without connectors. It provides 4 entries for 5–9.2 mm cables, 16 for 3–6.5 mm cables and 2 for 8–12.5 mm cables. The polyamide plate mounts on the enclosure body or cable-gland opening and reaches IP65. Compatible with PanelSeT S3D, CRN, S3CM, SBM, PLA, PHD, PLM, PLS and S3HD enclosures.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTSA2422SE
- EAN / GTIN
- 3606480168222
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- PanelSeT
- Product or component type
- Quick entrance plate
- Accessory / separate part category
- Cable management accessory
- Device application
- Multi-purpose
- Range compatibility
- PanelSeT S3D compact enclosure; PanelSeT CRN compact enclosure; PanelSeT S3CM control enclosure; PanelSeT SBM SBM industrial box; PanelSeT PLA PLA suitable enclosure; PanelSeT PHD suitable enclosure; PanelSeT PLM PLM compact enclosure; PanelSeT PLS PLS insulating modular box; PanelSeT S3HD compact enclosure
- Device composition
- 1 fixing elements; 1 plate
- Quantity per set
- Set of 1
- Mounting support
- Body of enclosure; Cable gland plate
- Material
- Polyamide
- Fixing mode
- By fixing element
- Total cable entry number
- 22
- Cable entry number
- 4 x 5…9.2 mm; 16 x 3…6.5 mm; 2 x 8…12.5 mm
- Height
- Real: 14 mm
- Width
- Real: 146 mm; Cut-out: 112 mm; Fixing center: 130 mm
- Depth
- Real : 58 mm; Cut-out : 36 mm; Fixing centre : 32 mm
- Product weight
- 0.16 kg
- IP degree of protection
- IP65
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 400
- Country of origin
- FR
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606480168222
- SAP 1000402084
- Code 81113244
