Schneider Electric PratiKa socket - fast - straight - 16A - 3P + E - 380...415 V AC - panel PKY16G434
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY16G434 PratiKa socket outlet - fast - straight - 16 A - 3P + E - 380.415 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY16G434
- EAN / GTIN
- 3303432012076
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 400 V
- Rated current
- 16 A
- Range
- PratiKa
- Product or component type
- Socket
- Device short name
- PratiKa socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Straight
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 1…4 mm²
- Product weight
- 0.145 kg
- Base dimension
- 65 x 85 mm
- Height
- 85 mm
- Width
- 68 mm
- Depth
- 94 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432012076
- SAP 1200199264
- Code 82175270
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric IMT80278 Multifix 1M Concrete Wall Box, 32 mm, 6-Pipe Entry
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 200X4.8MM, black IMT46412
Schneider Electric
Head for XD4PA22 (ZD4PA22)
Schneider Electric
Schneider Electric Multi-color USB Programmable tower lights -60MM- steady/flashing LED-buzzer XVGU3SWV
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 300X3.6MM, clear IMT46417
Schneider Electric
Schneider Electric PratiKa plug - angled - 16A - 3P + E - 380...415 V AC - IP44 - wall-mounted PKX16W434
Schneider Electric

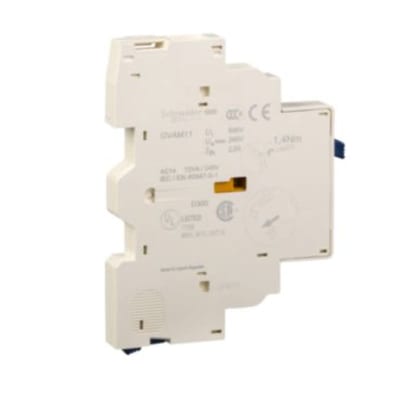

Auxiliary Cover 1C/O KORTSL. GV2
GVAM11
Schneider Electric

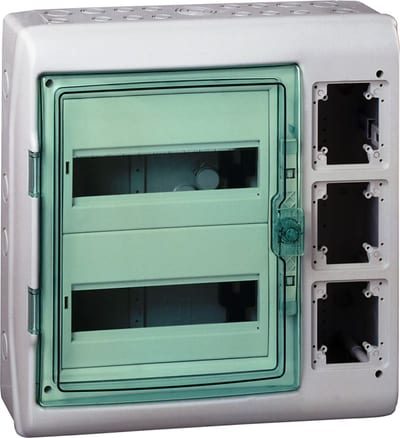

Kaedra IP65 2 rows with sidefelt
