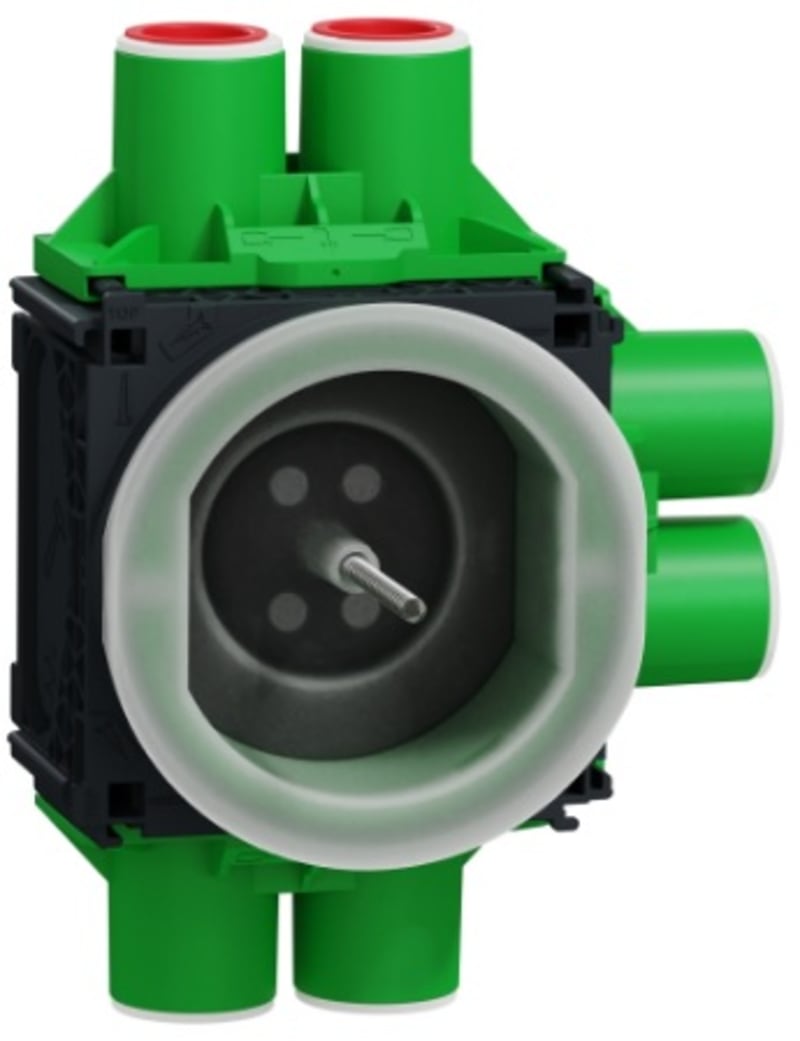

Schneider Electric IMT80278 Multifix 1M Concrete Wall Box, 32 mm, 6-Pipe Entry

Schneider Electric IMT80278 is a Multifix round wall-mount device box for single-module devices, designed for casting into concrete with 32 mm inlet spacing. It ships with a pouring cover and integrated nail-fixing lugs so the box can be positioned before concrete is placed. Six break-out inlets accept 16/20 mm installation conduit for termination flexibility, and a rotating carrier ring allows the finished device to be levelled on site. Typical use is in Nordic residential and commercial construction where switches and sockets are cast flush into concrete walls.

Manufacturer part number (MPN)

IMT80278

EAN / GTIN

3606481455826

Sales unit

pcs

Package quantity

35 pcs

With partition panel

No

Mounting method

Concrete building

Shape

Round

Construction type

Device connection box (round/square)

Model

Single

Provided with revolving ring

Yes

Couplable

Yes

Diameter

73 mm

Length

133 mm

Width

71 mm

Depth

58 mm

Inner depth

55 mm

For number of electric fittings

1

Mounting switching equipment

Screw or spread out

With screws

Yes

Housing feed-through by break-out opening

Yes

Housing feed-through by seal membrane

No

Housing feed-through by nozzle

Yes

Housing feed-through by step membrane

No

For tube diameter

16/20 mm

Pipe locking

Yes

Pipe locking optional

No

Inlet from the rear

Yes

Number of inlets

6

Number of included spouts

6

Material

Plastic

Halogen free

Yes

Surface protection

Untreated

Colour

Grey

Degree of protection (IP)

IP30

Cover model

Suitable for snap-in connector (manufacturer specific)

Transparent cover

No

Cover attachment

Snapped on

Sealable

No

Circuit integrity

None

With screening

No

Air tight

No

Clamp position fixed

No

Luminaire hook mounting

No

Nozzle

None

With nail lugs

No

Country of origin

Poland

HS Code

3925.90
