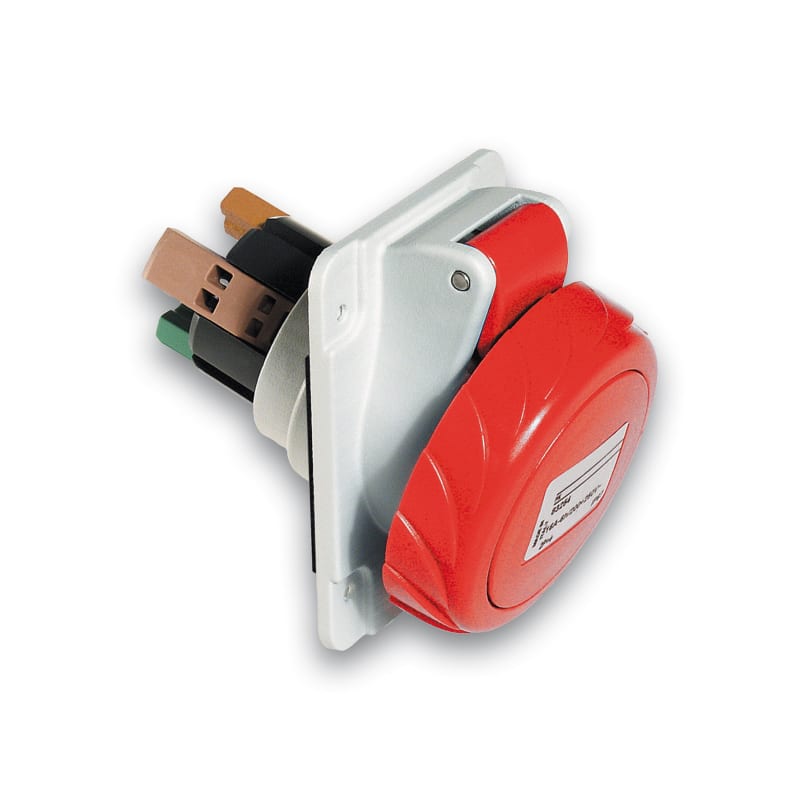

Schneider Electric PratiKa socket - fast - angled - 16A - 3P + N + E - 380...415 V AC - panel PKY16F735
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKY16F735 PratiKa socket outlet - fast - angled - 16A - 3P + N + E - 380.415 V AC - panel.
Technical Specifications
- Manufacturer part number (MPN)
- PKY16F735
- EAN / GTIN
- 3303432011338
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 400 V
- Rated current
- 16 A
- Range
- Mureva
- Product or component type
- Socket
- Device short name
- Mureva socket
- Plug, socket category
- Low voltage
- Poles description
- 3P + N + E
- Network type
- AC
- Outlet standard
- Industrial
- mounting mode
- Panel-mounted
- Plug, socket, control station shape
- Angled
- [In] rated current
- 16 A
- [Ue] rated operational voltage
- 380...415 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 6 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 1…2.5 mm²
- Product weight
- 0.225 kg
- Base dimension
- 90 x 100 mm
- Height
- 100 mm
- Width
- 90 mm
- Depth
- 106 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Red
- Standards
- IEC 60309-2; IEC 60309-1
- IP degree of protection
- IP67 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-1
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Ambient air temperature for operation
- 35 °C ( 86400 s )
- Country of origin
- IT
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3303432011338
- SAP 1200199254
- Code 82175279
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Wind sensor with 0-10 V interface and heating, polar white MTN663592
Schneider Electric
Schneider Electric variable speed drive, Altivar Machine ATV320, 5.5kW, 200 to 240V, 3 phases, compact ATV320U55M3C
Schneider Electric
Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120H, 3P, 80A, D curve, 15000A (IEC/EN 60898-1), 15KA (IEC/EN 60947-2) A9N18512
Schneider Electric
Schneider Electric Socket, Mureva PK, wall-mounted, angled, 32A, 3P+E, 400V, IP44 PKF32W434
Schneider Electric
Schneider Electric front connections, 630 A to 1000 A, fixed ComPact NS type N/H/NA, top mounting, 3 poles
33598
Schneider Electric
Schneider Electric APC Easy UPS On-Line SRV 1000 VA/900 W Tower, 230 V
SRV1KI-E
Schneider Electric
Linergy FM (Multiclip)4P 63A 1/2-row G/P
LVS04008
Schneider Electric

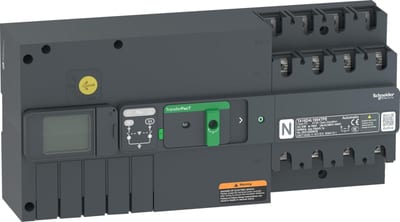

Schneider Electric transfer switch, TransferPacT Active automatic, 160A, 400V, 4P, LCD,frame 160A TA16D4L1604TPE
