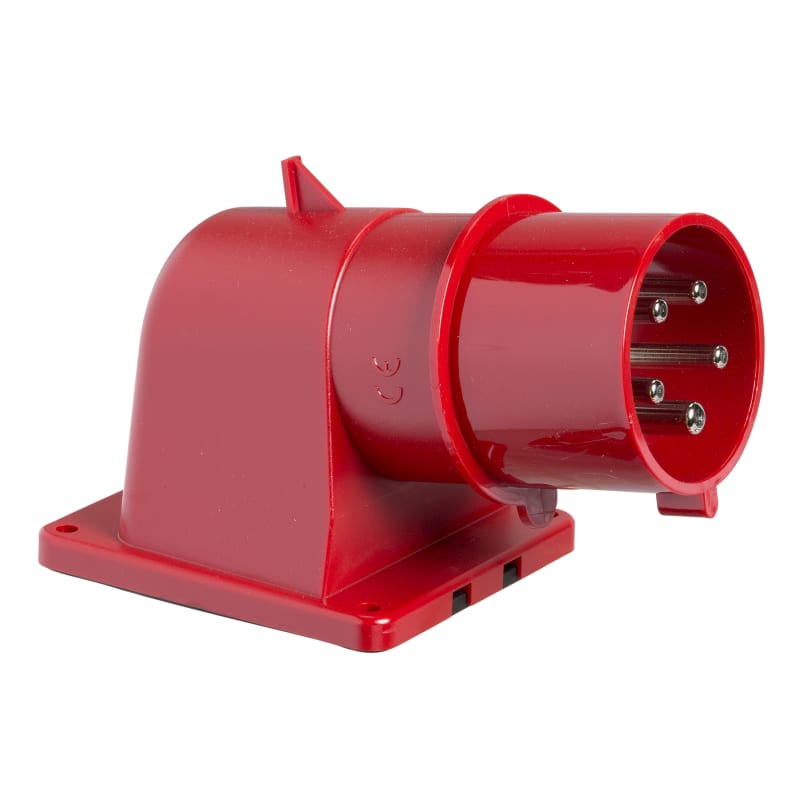

Wall-Mounted Appliance Inlet,16A 4P+J 400VIP44
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 81809 PratiKa appliance inlet wall-mounted - 16 A - 3P + N + E - 380.415 V AC - IP44.
Technical Specifications
- Manufacturer part number (MPN)
- 81809
- EAN / GTIN
- 3303430818090
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Construction type
- Built-up device plug
- Number of poles
- 5
- Material
- Plastic
- IEC-amperage
- 16 A
- Connection system
- Screwed terminal
- Insert direction
- Right-angled
- Phase inverter
- No
- Degree of protection (IP)
- IP44
- Military model
- No
- Clock hour position
- 6 h
- Identification colour
- Red
- Voltage according to EN 60309-2
- 400 V (50+60 Hz) red
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303430818090
- SAP 1200500583
- Code 82623484
Product Documentation
More from Schneider Electric
Schneider Electric

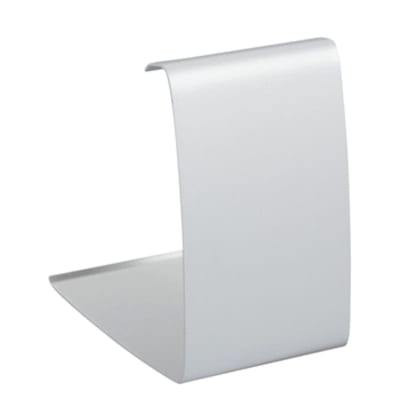

Levelling piece US161-3AN
5590070
Schneider Electric

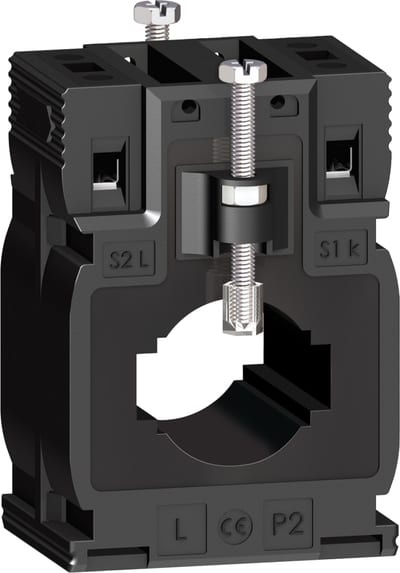

Schneider Electric current transformer tropicalised DIN mount 300 5 cables d. 27 - bars 10X32 15X25 METSECT5MA030
Schneider Electric

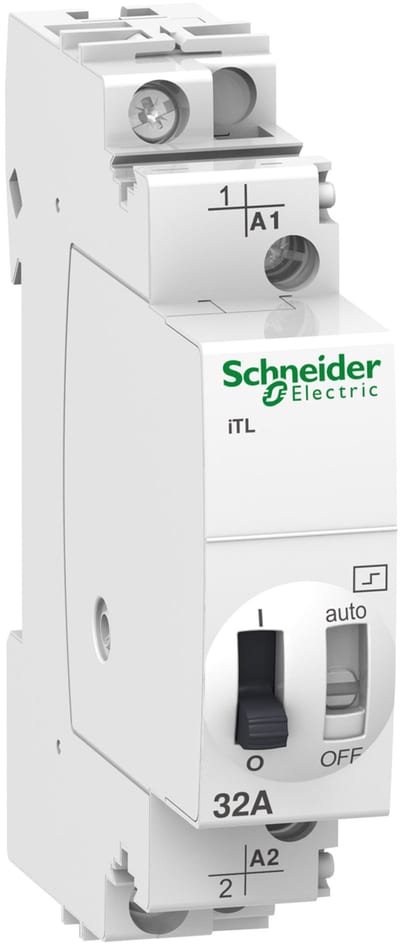

Schneider Electric impulse relay iTL - 1P - 1NO - 32A - coil 110 VDC - 230...240 VAC 50/60Hz A9C30831
Schneider Electric
Schneider Electric ARGUS Presence HF High Bay - 2CH CCT551023
Schneider Electric

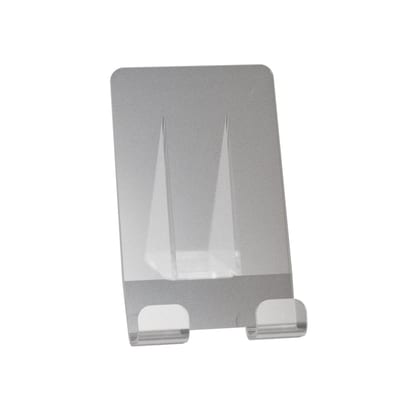

Telefonholder for desk unit
INS44077
Schneider Electric

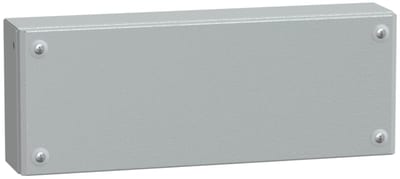

Schneider Electric Metal industrial box plain door H150XW400XD80 IP66 IK10 RAL 7035 NSYSBM15408
Schneider Electric

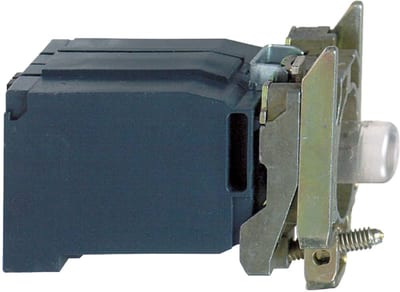

Schneider Electric light block with body/fixing collar with BA9S incandesc. bulb 230…240V ZB4BV4
