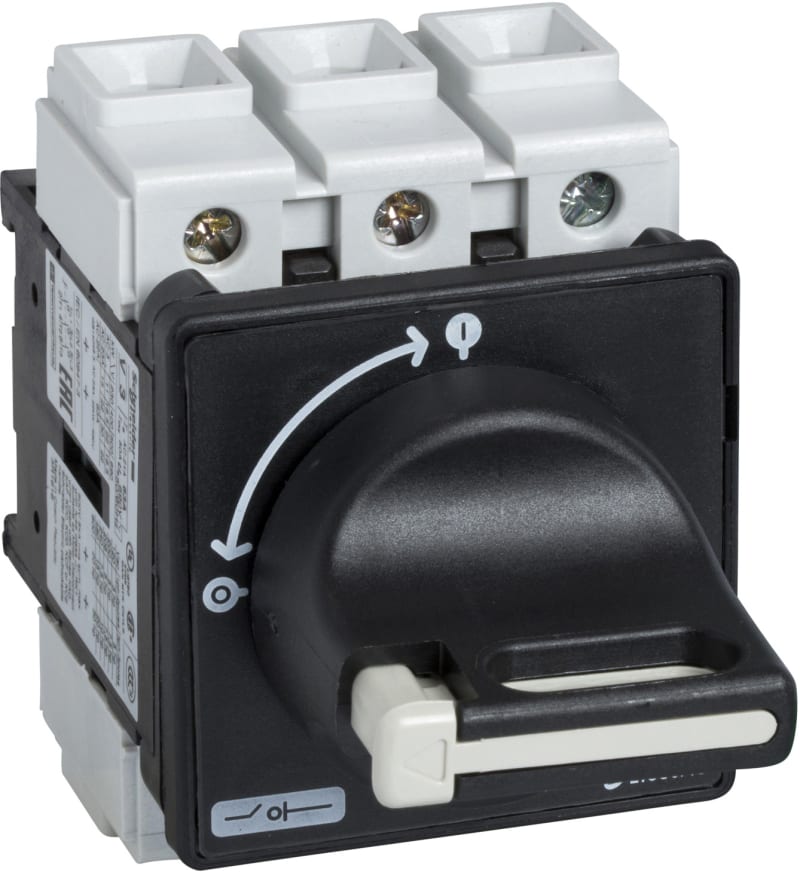

Schneider Electric TeSys Vario - switch disconnector - 12 A - on door VBD02

Schneider Electric VBD02 Main switch Black 12A.

Manufacturer part number (MPN)

VBD02

EAN / GTIN

3389110724905

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Range

TeSys

Product Name

TeSys VARIO

Device Short Name

VBD

Device Application

Preventive maintenance

Product Type

Switch disconnector

Device Composition

Handle; Switch

Mounting Support

Handle: door; Switch: door

Mounting Method

Hole with 22.5 mm for handle

Performance Level

High performance

Number of Poles

3P

Contact Type and Composition

3 NO

[Ue] IEC Rated Operational Voltage

690 V AC 50/60 Hz

IEC Rated Operational Power in W

3 kW at 400...415 V (AC-3); 4 kW at 500 V (AC-3); 1.5 kW at 230...240 V (AC-3); 5.5 kW at 500 V (AC-23A); 5.5 kW at 690 V (AC-3); 7.5 kW at 690 V (AC-23A); 3 kW at 230...240 V (AC-23A); 4 kW at 400...415 V (AC-23A)

[Ie] Rated Operational Current

8.1 A AC-23 Ue: 400 V

[Ith] Conventional Free Air Thermal Current

12 A

[Ithe] Conventional Enclosed Thermal Current

10 A

Making Capacity ( I Rms)

120 A at 400 V AC-21A; 120 A at 400 V AC-22A; 120 A at 400 V AC-23A

Breaking Capacity

120 A at 400 V (AC-21A); 120 A at 400 V (AC-22A); 120 A at 400 V (AC-23A)

Rated Conditional Short Circuit Current

10 kA at 400 V - associated fuse 12 A aM; 10 kA at 400 V - associated fuse 12 A gG

[Icm] Rated Short Circuit Making Capacity

1 kA at 400 V at Ipeak

[Icw] Rated Short Time Withstand Current

300 A at 400 V duration: 1 s

[Uimp] Rated Impulse Withstand Voltage

8 kV

Suitability for Isolation

Yes

Network Type

AC; DC

Intermittent Duty Class

30

Control Type

Rotary handle

Rotary Handle Mounting Style

Direct

Handle Color

Black

Handle Front Plate Color

Black

Rotary Handle Padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

Mechanical Durability

100000 cycles

Electrical Durability

100000 cycles AC-21; 30000 cycles DC-1; 30000 cycles DC-2; 30000 cycles DC-3; 30000 cycles DC-4; 30000 cycles DC-5

IEC Terminal Connection

Power circuit: screw clamp terminals10 mm² - solid; Power circuit: screw clamp terminals6 mm² - flexible - with cable end

Tightening Torque

Power circuit: 2.1 N.m - on screw clamp terminals

Base Dimension

60 x 60 mm

Height

74 mm

Width

60 mm

Product Weight

0.215 kg

Standards

IEC 60947-3

Product Certifications

UL; CCC; GL; CSA; UKCA

Degree of Protection

IP20 conforming to IEC 60529; IP65

Protective Treatment

TC

Mechanical Robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient Air Temperature for Operation

-20…50 °C

Fire Resistance

960 °C conforming to IEC 60695-2-1

Compatibility Code

Main switch disconnector

Number of Units in Package 1

1

Number of Units in Package 2

24

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90
