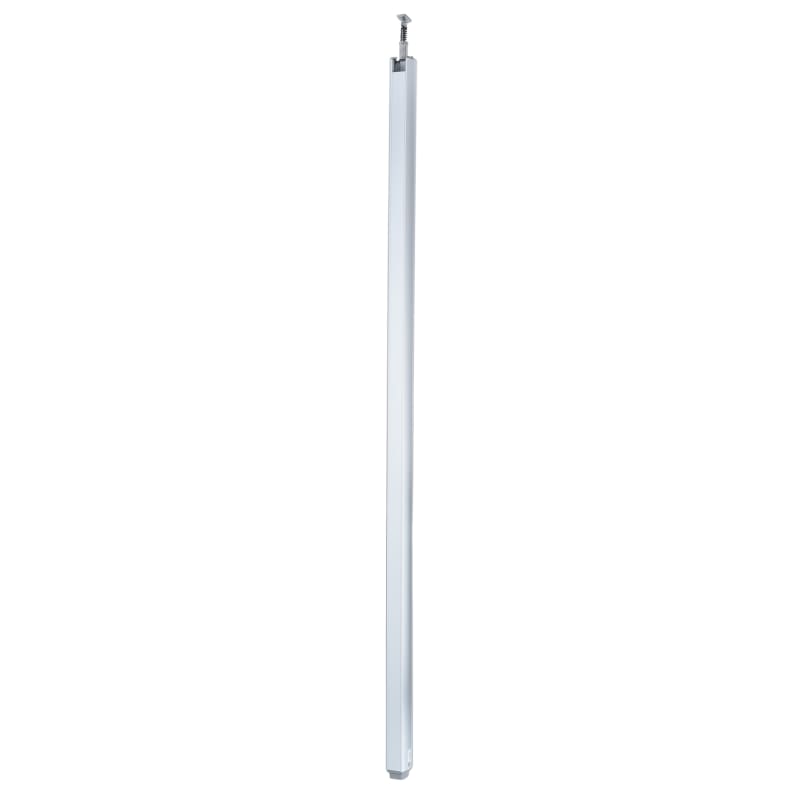

Schneider Electric Pole, OptiLine 45, tension-mounted, two-sided, 2700-3100 mm, aluminium ISM20106
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM20106 OptiLine 45 Service Pole double-sided Innspent 2,7-3,1 m Aluminium Anodised.
Technical Specifications
- Manufacturer part number (MPN)
- ISM20106
- EAN / GTIN
- 3606480029622
- Sales unit
- pcs
- Range
- OptiLine
- Product name
- OptiLine 45
- Shape
- Oval
- Cabling installation system
- Pole
- Product type
- Pole
- Device presentation
- Empty
- Type of pole
- Two-sided
- Pole/post surface finish
- Anodized
- Pole fixing mode
- Tension-mounted
- Adjustment
- Adjustable in height: 400 mm
- Colour tint
- Aluminium
- Additional information
- Adjustability of ceiling fixing 400 mm
- Front opening size
- 45 mm
- Quantity package 1 / unit
- Set of 1
- Height
- 2700…3100 mm
- Depth
- 90 mm
- Width
- 116 mm
- Cover type
- 2 closed cover cover 45 mm in aluminium anodized
- Useful cross section
- 696 mm²
- Compartment partitioning
- 2 compartments
- Material
- Aluminium
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 60598-2-2; IEC 1084-2-4; NF C 68-102; SS 424 10 32
- Operating temperature
- -25…60 °C
- IP degree of protection
- IP30
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Warranty (in months)
- 18
- Pillar shape
- Oval
- Model
- Double-sided
- Pre-wired
- No
- Adjustable
- Yes
- Height levelling
- 400 mm
- Column height
- 2700–3100 mm
- Column depth
- 116 mm
- Column width
- 90 mm
- Number of usable covers
- 2
- Cover width
- 45 mm
- Type of fastening
- Telescope
- Place variable
- No
- Ceiling mounting
- Yes
- Cable entry
- Top/bottom
- Through-going profile
- Yes
- Material installation column
- Aluminium
- Material installation column halogen free
- Yes
- Surface protection column
- Anodised
- Material cover
- Aluminium
- Material cover halogen free
- Yes
- Cover surface
- Anodised
- Colour top cover
- Aluminium
- RAL-number cover
- 9006
- Number of partitions
- 2
- Usable cross section
- 696 mm²
- Suitable for ceiling mounting
- Yes
- Suitable for floor mounting
- Yes
- Country of origin
- Sweden
Standards & Compliance
- HS Code
- 7616.99
Cross References
- EAN 3606480029622
- SAP 1200557547
- Code 82906357
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modicon TM3 - 8 analog inputs (spring) 24VDC TM3AI8G
Schneider Electric
Coil D-Contactor 230V 50/60Hz
LXD3P7
Schneider Electric

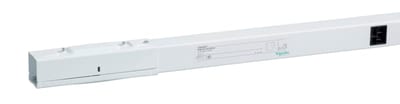

Schneider Electric Straight length, Canalis KBB, 40 A, 2 circuits L+N+PE, 3 tap-off units, 2 m, white KBB40ED22203W
Schneider Electric

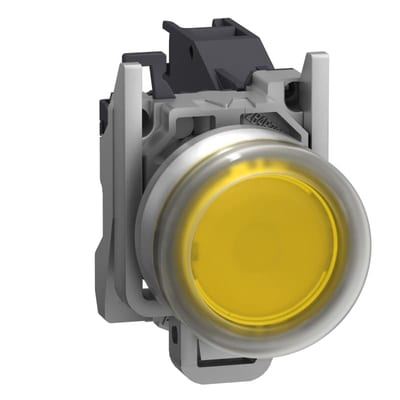

Schneider Electric Complete push button, Harmony XB4, Explosive atmosphere, pushbutton yellow with boot and legend insertion XB4BP581GEX
Schneider Electric
Schneider Electric Miniature plug-in relay, 6 A, 4 CO, LED, 110 V DC RXM4AB2FD
Schneider Electric

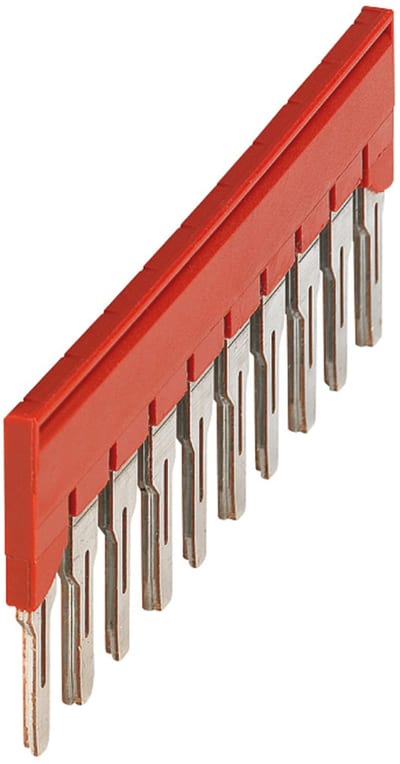

Jumper link 10 pole for 6mm² - red
NSYTRAL610
Schneider Electric

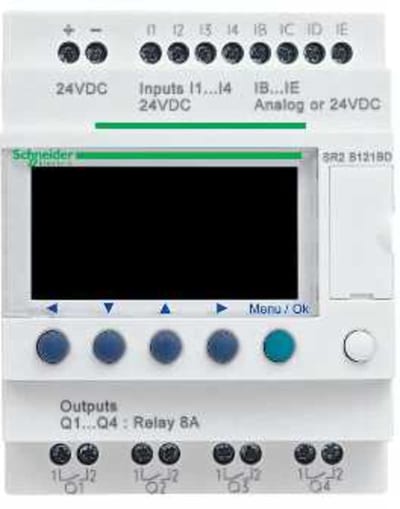

Schneider Electric compact smart relay Zelio Logic - “discovery” pack - 12 I O - 100..240V AC SR2PACKFU
Schneider Electric

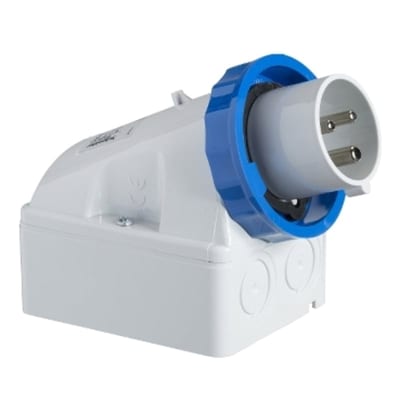

Wall-mounted. App.innt. 32A 2P+J 230V
