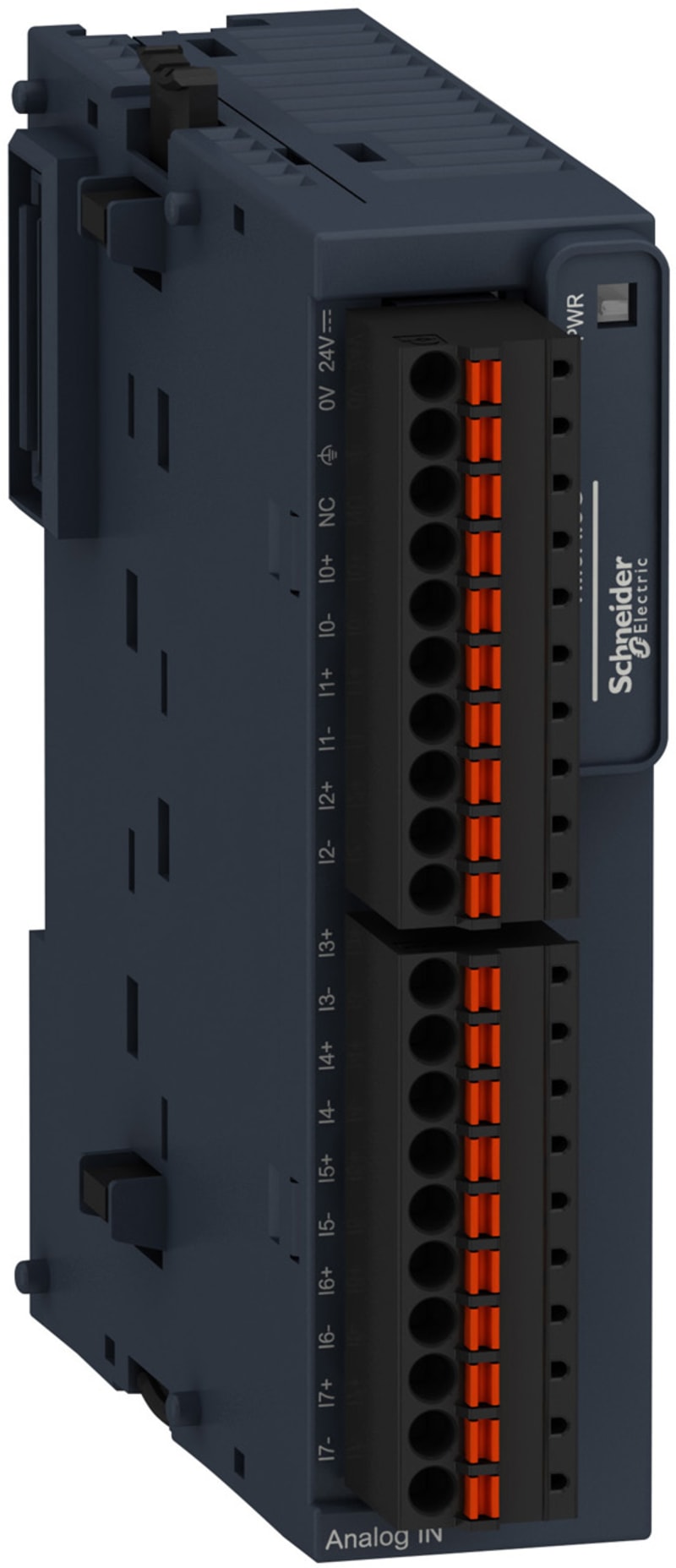

Schneider Electric Modicon TM3 - 8 analog inputs (spring) 24VDC TM3AI8G

Schneider Electric TM3AI8G accessories Modicon PLC - 8 analogue inputs, spring terminal.

Manufacturer part number (MPN)

TM3AI8G

EAN / GTIN

3606480648939

Sales unit

pcs

Package quantity

9 pcs

Range of product

Modicon TM3

Product or component type

Analog input module

Range compatibility

Modicon M221; Modicon M241; Modicon M251; Modicon M262

Analogue input number

8

Analogue input type

Current 4...20 mA; Current 0...20 mA; Voltage 0...10 V; Voltage - 10...10 V

Analogue input resolution

12 bits; 11 bits + sign

Permissible continuous overload

13 V, analogue input type: voltage; 40 mA, analogue input type: current

Input impedance

= 1 MOhm

Sampling duration

1 ms

Conversion time

1 ms + 1 ms per channel + 1 controller cycle time

Absolute accuracy error

+/- 1 % of full scale; +/- 0.2 % of full scale at 25 °C

Repeat accuracy

+/-0.5 %FS

Cross talk

<= 1 LSB

Type of cable

Twisted shielded pairs cable <30 m for input circuit

Electrical connection

10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs and supply; 10 x 1.5 mm² removable spring terminal block with pitch 3.81 mm adjustment for inputs

LSB value

2.44 mV, 0...10 V; 4.88 mV, - 10...10 V; 4.88 µA, 0...20 mA; 3.91 µA, 4...20 mA

Insulation

Between input and supply at 1500 V AC; Between input and internal logic at 500 V AC

Immunity to microbreaks

10 ms

Temperature drift

+/- 0.01 %FS/°C

Non-linearity

+/- 0.2 %FS

Typical current consumption

40 mA at 5 V DC full load; 35 mA at 5 V DC no load; 30 mA at 24 V DC no load; 40 mA at 24 V DC full load

Local signalling

1 LED green for PWR

Mounting support

Top hat type TH35-15 rail conforming to IEC 60715; Top hat type TH35-7.5 rail conforming to IEC 60715; plate or panel with fixing kit

Height

90 mm

Width

23.6 mm

Depth

70 mm

Product weight

0.1 kg

IP degree of protection

IP20

Marking

CE

Product certifications

CE; UKCA; RCM; EAC; CULus; CULus HazLoc

Standards

IEC 61131-2

Electromagnetic emission

Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to IEC 55011; Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to IEC 55011

Ambient air temperature for operation

-10…55 °C (horizontal installation); -10…35 °C (vertical installation)

Ambient air temperature for storage

-25…70 °C

Relative humidity

10…95 % without condensation

Operating altitude

0...2000 m

Pollution degree

2

Vibration resistance

3.5 mm (f = 5…8.4 Hz) on DIN rail; 3 gn (f = 8.4…150 Hz) on DIN rail

Shock resistance

15 gn for 11 ms

Number of Units in Package 1

1

Number of Units in Package 2

9

Number of Units in Package 3

288

Country of origin

JP

Warranty (in months)

18

Power consumption

1.1 W

Number of analogue inputs

8

Analogue inputs configurable

No

Analogue outputs configurable

No

Input, current

Yes

Input, voltage

Yes

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

No

Resolution of the analogue inputs

12 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Resolution of the analogue outputs

12 Bit

Type of electric connection

Spring clamp connection

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
