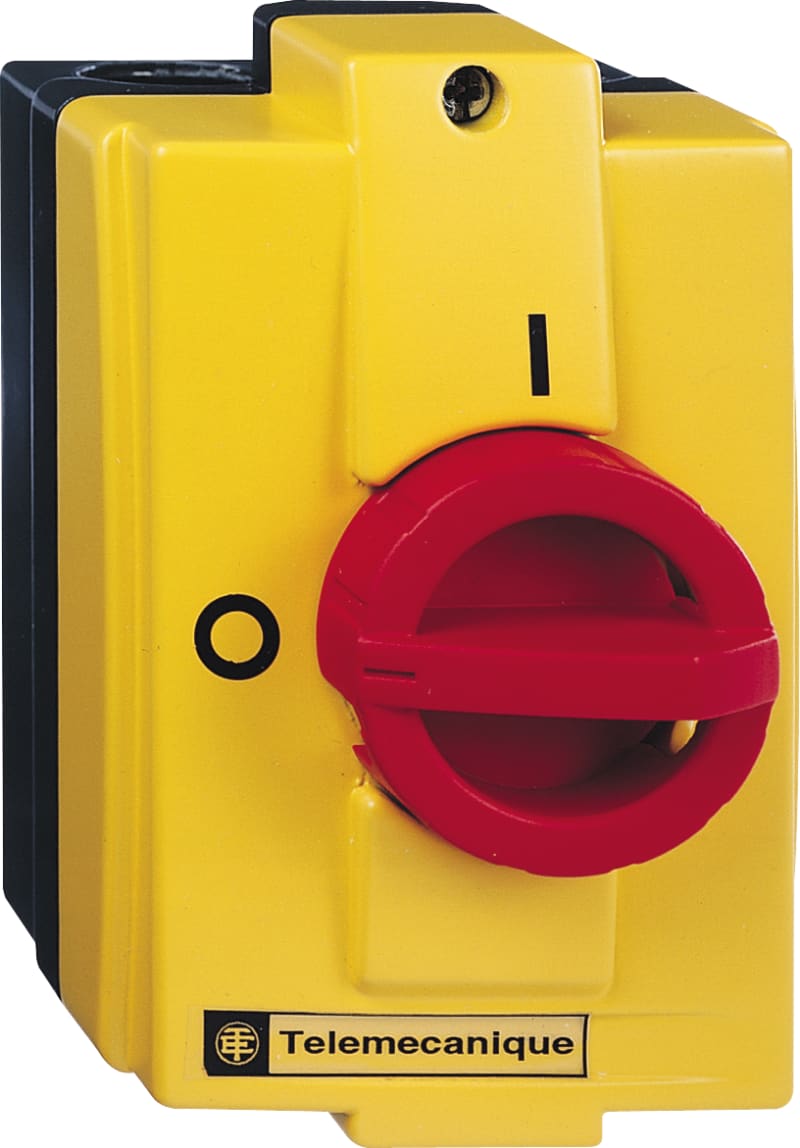

Schneider Electric TeSys Vario enclosed, emergency stop switch disconnector, 16A, IP55 VCFN20GE

Schneider Electric VCFN20GE Safety switch Enclosed 16A.

Manufacturer part number (MPN)

VCFN20GE

EAN / GTIN

3389110759990

Sales unit

pcs

Package quantity

7 pcs

Range

TeSys

Product name

TeSys Mini-VARIO

Device short name

VCFN

Product or component type

Emergency stop switch disconnector

Performance level

Standard

Poles description

3P

Control type

Rotary handle

Handle colour

Red

Handle front plate colour

Yellow

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

[Ue] rated operational voltage

690 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ithe] conventional enclosed thermal current

16 A

[Ie] rated operational current

11 A (AC-23A) at 400 V

Rated operational power in W

5.5 kW at 400 V (AC-23); 4 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity ( I Rms)

200 A at 400 V AC-21A; 200 A at 400 V AC-22A; 200 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

0.5 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

140 A at 400 V duration: 1 s

Rated conditional short-circuit current

6 kA at 400 V - associated fuse 20 A aM; 6 kA at 400 V - associated fuse 20 A gG

Breaking capacity

200 A at 400 V (AC-21A); 200 A at 400 V (AC-22A); 200 A at 400 V (AC-23A)

Mechanical durability

50000 cycles

Electrical durability

30000 cycles DC-1...5; 50000 cycles AC-21

Suitability for isolation

Yes

Connections - terminals

Control circuit: connector cable(s) 4 mm² flexible with cable end; Control circuit: connector cable(s) 4 mm² solid

Tightening torque

Control circuit: 0.7 N.m - on connector

Fire resistance

960 °C conforming to IEC 60595-2-1

handle front plate dimension

60 x 60 mm

Height

131 mm

Width

82.5 mm

Depth

106 mm

Product weight

0.422 kg

Standards

IEC 60947-4-1

Protective treatment

TC

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Number of Units in Package 1

1

Number of Units in Package 2

7

Number of Units in Package 3

112

Country of origin

CZ

Warranty (in months)

18
