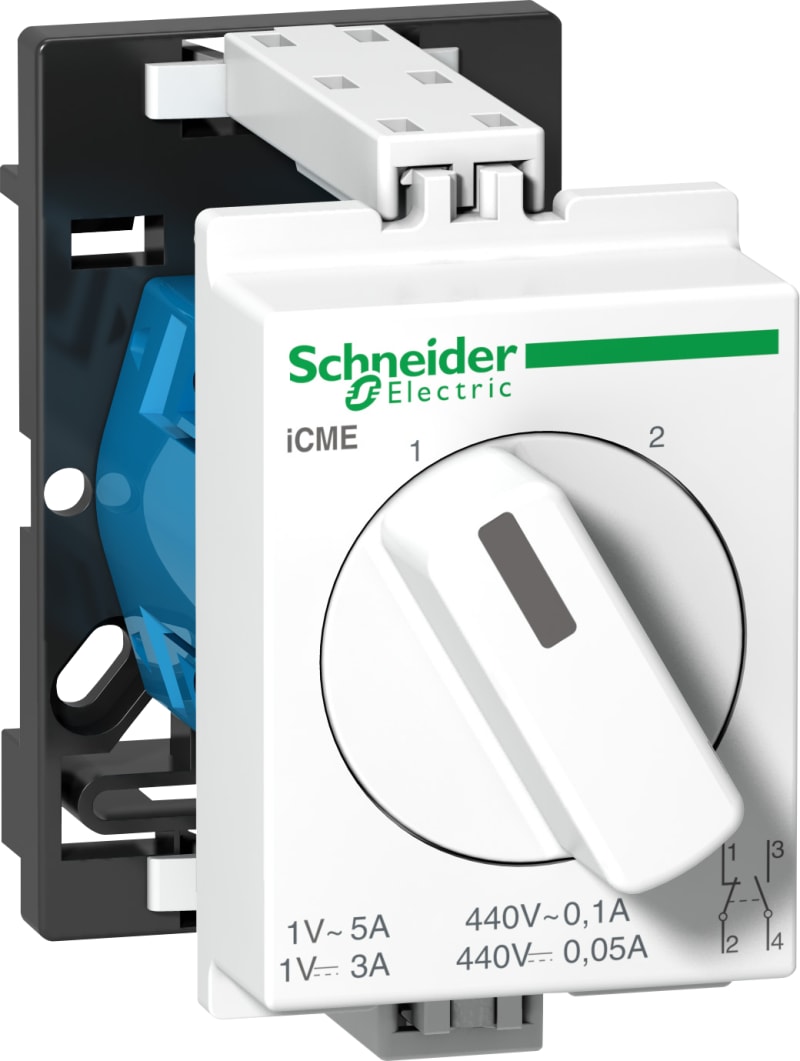

Schneider Electric 2 ways low level switch iCME 10 A 0,1..5 CA 0,05..3 CCA 2P U 1..440 VAC/VCCV CA A9E15122

Schneider Electric A9E15122 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Selector switch iCME 2-pos 10A.

Manufacturer part number (MPN)

A9E15122

EAN / GTIN

3606480377006

Sales unit

pcs

Package quantity

80 pcs

Rated current

10 A

range of product

Acti9

Product name

Acti9 iCM

Product or component type

Selector switch

Device short name

iCME

Device application

Electrical circuit control

Contacts type and composition

1 NO + 1 NC

Standards

EN 60947-3; IEC 60947-3; VDE 0660 part 107; UL

Maximum operating voltage

440 V

Control type

Rotary handle 2 positions

Marking

1 - 2

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

4

Height

60 mm

Width

36 mm

Depth

75 mm

Product weight

44 g

Colour

White

Mechanical durability

1000000 cycles

Electrical durability

AC-21A: 200000 cycles

Connections - terminals

Jumper terminals1.5 mm²

Wire stripping length

9 mm for downside connection

Tightening torque

1 N.m downside

IP degree of protection

IP20 conforming to IEC 60529

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-25…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

80

Warranty (in months)

18

Switching function

Control switch

Number of contacts as normally open contact

1

Number of contacts as normally closed contact

1

Number of poles

2

Rated voltage

415 V

Min. rated voltage

0 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

2

Built-in depth

75 mm

Degree of protection (IP)

IP20

Country of origin

Austria

HS Code

8536.20

• EAN 3606480377006
• SAP 1000343239
• Code 81003130
