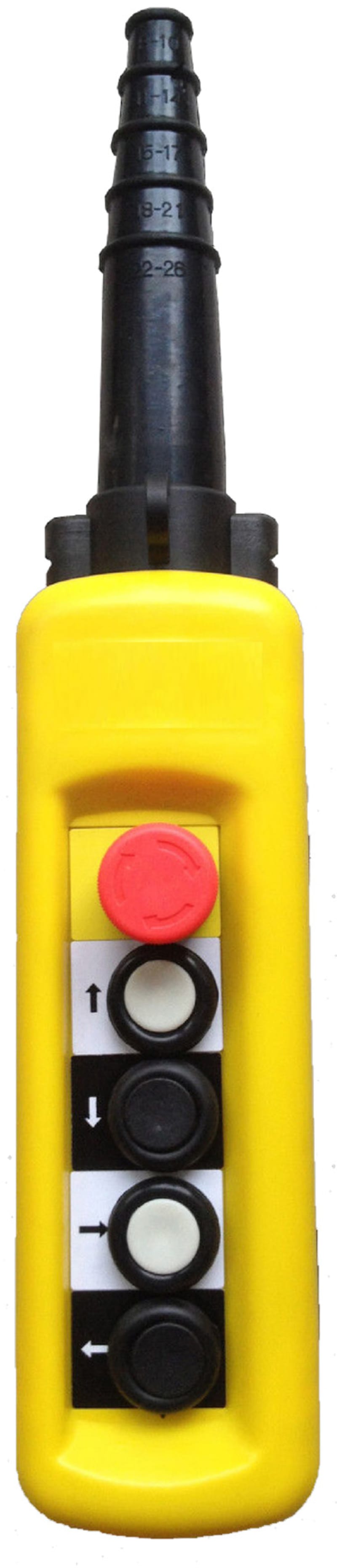

Schneider Electric Harmony XAC-A Pendant Station 4 Buttons + E-Stop

Schneider Electric Harmony XAC-A pendant control station for single-speed hoist control, comprising four direction pushbuttons (raise, lower, left, right; each 1NC + 1NO) plus a Ø40 mm latching emergency-stop button (1NC). Double-insulated polypropylene enclosure with mechanical interlocking between direction pairs. Compatible with ZB2BE102 and ZB2BE101 contact blocks; screw clamp terminals 0.5-2.5 mm². Package quantity: 6 pcs.

Manufacturer part number (MPN)

XACA4813

EAN / GTIN

3389110426885

Sales unit

pcs

Package quantity

6 pcs

Contact configuration

1 NO + 1 NC

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACA

Control station type

Double insulated

Enclosure material

Polypropylene

Electrical circuit type

Control circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Control station composition

4 push-buttons + 1 emergency stop

Control button type

First push-button 1 NC + 1 NO raise, slow; Second push-button 1 NC + 1 NO lower, slow; Stop push-button Ø 40 mm 1 NC latching; Fourth push-button 1 NC + 1 NO left, slow; Third push-button 1 NC + 1 NO right, slow

Product compatibility

ZB2BE102 for emergency stop; ZB2BE102 + ZB2BE101 for each direction

Mechanical interlocking

With mechanical interlocking between pairs

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Standards

IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60204-32

Product certifications

GOST; CCC

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

1000000 cycles

Cable entry

Rubber sleeve with stepped entry 8…26 mm

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3)

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Contact operation

Slow-break

Maximum resistance across terminals

25 MOhm

Operating force

13 N push-button; 8 N emergency stop

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(11-12)NC; (13-14)NO

Terminals description ISO n°2

(11-12)NC

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

0.815 kg

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

24

Country of origin

CZ

Warranty (in months)

18

Width

80 mm

Height

250 mm

Depth

107 mm

Number of command positions

4

Colour housing cover

Yellow

Suitable for emergency stop

Yes

Housing material

Plastic

Number of speeds

1

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Rated operation current Ie at AC-15, 600 V

1.2 A

HS Code

8537.10
