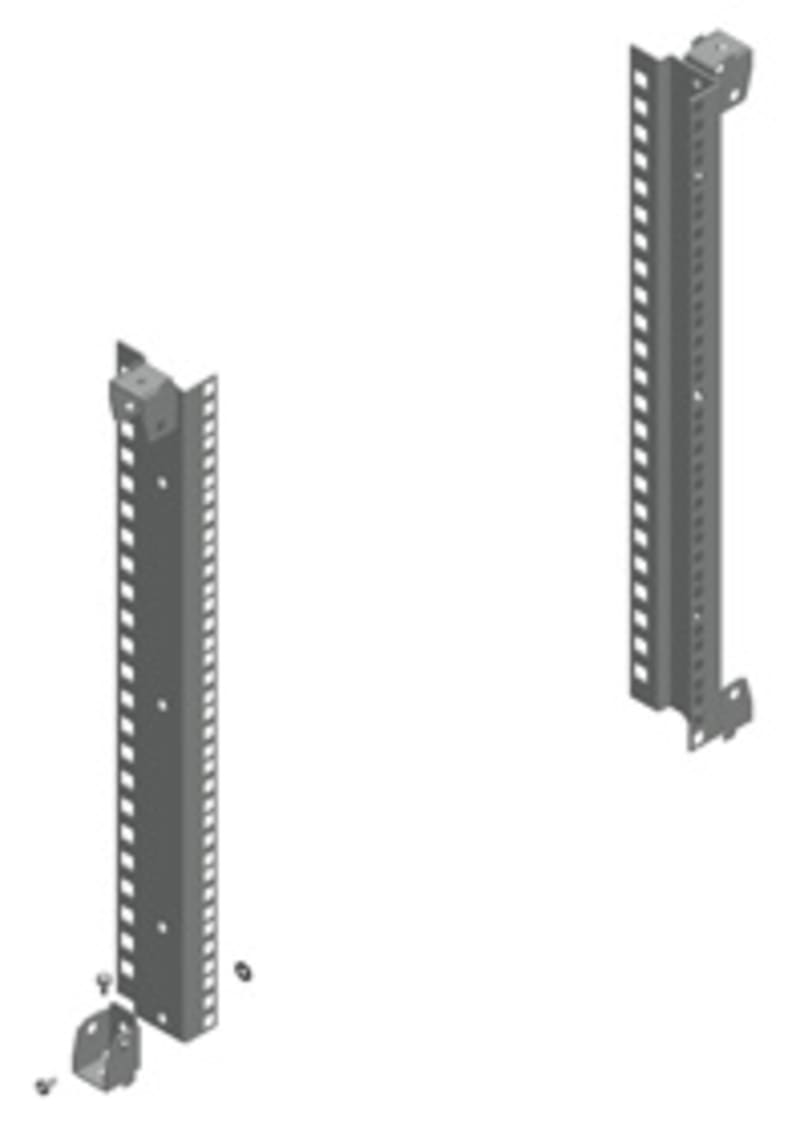

Schneider Electric PanelSeT SF/SM partial 19" fixed rack - 400 mm NSYRCKP8
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYRCKP8 Spacial SF/SM split 19" fast frame/rack - Montasjevinkler - 8U - 400 mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRCKP8
- EAN / GTIN
- 3606480066931
- Sales unit
- pcs
- Rack units
- 8U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- - H: 400 mm
- Rack type
- Fixed
- Mounting location
- Top front of enclosure
- Mounting support
- Cross rails
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- fixing elements; 2 upright
- Quantity per set
- Set of 1
- Number of units 19"
- 8
- Rack coverage
- Partial
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Permanent permissible load
- 2 kg per unit
- Height
- 400 mm
- Width
- Nominal: 600 mm; Nominal: 800 mm
- Depth
- 60 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 400 mm
- Max. load capacity
- 16 kg
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606480066931
- SAP 1200496792
- Code 82641058
Product Documentation
