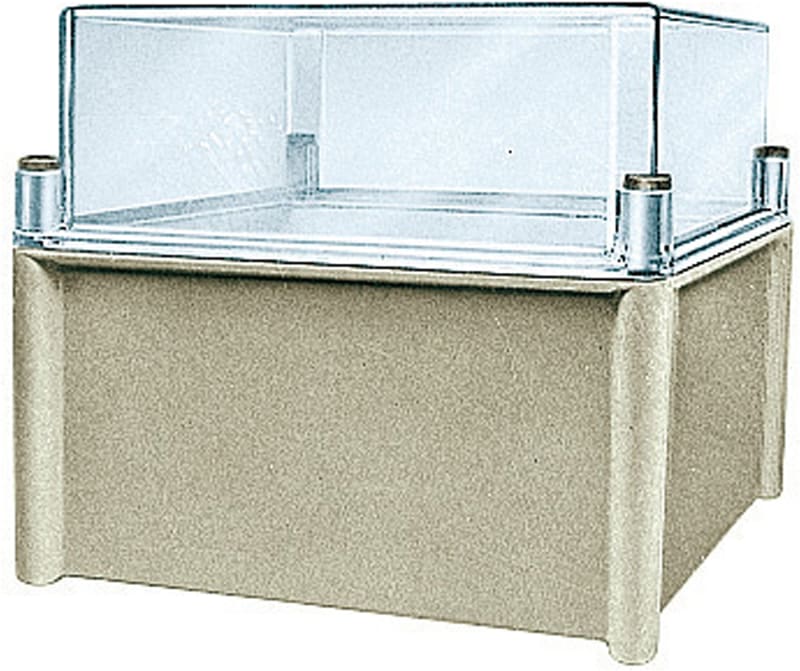

Schneider Electric PLS box, polyester rear, polyester cover IP65 27X54X18CM NSYPLSP2754G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLSP2754G sealed pole PLS 7035 box27x54x18.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLSP2754G EAN / GTIN: 3606480777264 Sales unit: pcs Package quantity: 60 pcs Range: PanelSeT Product name: PanelSeT PLS Device short name: PLS Enclosure type: Multi-purpose Category: Insulating modular box Nominal height: 270 mm Nominal width: 540 mm Nominal depth: 180 mm Enclosure mounting: Wall mounted Device composition: 1 cover: on enclosure; 1 rear part: on enclosure; locking screws Body type: One piece moulded Type of front cover: Low plain cover Lock type: Slot screw Removable parts: Cover locking screw material: Rear: polyester reinforced with fibreglass; Cover: polyester reinforced with fibreglass Colour: Body: grey (RAL 7035) Standards: NEMA classification 13; NEMA 4X; IEC 62208 Product certifications: UL Electrical insulation class: Class II IP degree of protection: IP66 conforming to IEC 60529 IK degree of protection: IK09 conforming to IEC 62262 Fire resistance: 960 °C conforming to IEC 62208 Ambient air temperature for storage: -30…70 °C Number of Units in Package 1: 1 Number of Units in Package 2: 60 Country of origin: ES Warranty (in months): 18 Width: 540 mm Height: 270 mm Depth: 180 mm RAL-number: 7035 With mounting plate: No Impact strength: IK09 Degree of protection (IP): IP66
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 3606480777264
- SAP 1200013078
- Code 81383021
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Fast charging station, Schneider StarCharge Fast 60, 60kW, 2XCCS2, 3.6M cable range, cable management, payment terminal EVD2S60TBBCC
Schneider Electric
Parallell luminaire ERI-10
FFS06720601
Schneider Electric
Schneider Electric TeSys LRD350L Thermal Overload Relay 37-50A, Class 20
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250 TM DC EP, 20KA/1500VDC, 4 poles, TM-DC trip unit 125A C25F4TM125D3
Schneider Electric
Actassi S-One Blind Plug for Unused Ports, Colour Code Light Grey
306580013
Schneider Electric
Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40N, 1P+N, 6A, C curve, 6000A, A-SI type, 300MA A9DF7606
Schneider Electric
Schneider Electric Vigi IC60 - earth leakage add-on block - 3P - 25A - 30MA - SI type A9V61325
Schneider Electric
Mounting frame 4X45 module Uni
INS52151
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYPLSP2754G?
- NSYPLSP2754G can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYPLSP2754G.
- What is the HS code for NSYPLSP2754G?
- The customs tariff (HS) code for NSYPLSP2754G is 3926.90.
- Who manufactures NSYPLSP2754G?
- NSYPLSP2754G is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYPLSP2754G?
- Yes — the NSYPLSP2754G datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYPLSP2754G?
- The minimum order quantity is 1.
- Is NSYPLSP2754G available?
- Yes — NSYPLSP2754G is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
