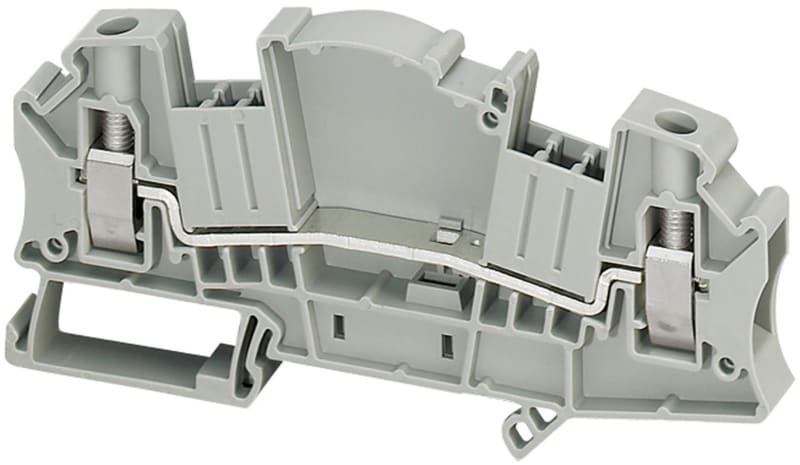

DIN-rail terminal measurement 6mm² GREY2P

Schneider Electric NSYTRV62TT DIN-rail terminal measurement 6mm² grey2p.

Manufacturer part number (MPN)

NSYTRV62TT

EAN / GTIN

3606480532405

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

6 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRV

Accessory / separate part category

Connection accessory

Terminal block type

Passthrough

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

6 mm²

Length

100.8 mm

Colour

Grey

Quantity per set

Set of 50

Width

8.2 mm

Height

49.6 mm

Connections - terminals

1 x screw terminal: upstream (M4); 1 x screw terminal: downstream (M4)

number of connections

2

Connection position

Inclined

Number of measurement input

6

Cable cross section

0.2…10 mm², solid; 0.2…10 mm², flexible without cable end; 0.2…6 mm², flexible with cable end

Tightening torque

1.5…1.8 N.m

Wire stripping length

10 mm

Tool type

Connection: screwdriver; Disconnection: screwdriver

[Ue] rated operational voltage

500 V conforming to EN/IEC 60947-7-1; 600 V UL; 600 V CSA

[In] rated current

30 A conforming to EN/IEC 60947-7-1; 30 A UL; 30 A CSA

Material

Polyamide 6/6: insulating case; Copper alloy: connector and screw; Copper alloy: commoning link; Chromium-nickel steel: spring

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

25.4 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; PrismaSeT XS; TeSys

Product compatibility

Spacial enclosures

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Product certifications

CSA; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

200

Country of origin

PL

Warranty (in months)

18

Suitable for conductor material

Aluminium/copper

Connectable conductor cross section solid-core

0.2–10 mm²

Connectable conductor cross section multi-wired

0.2–10 mm²

Rated current In

30 A

Rated voltage

500 V

Type of electrical connection 1

Screw connection

Type of electrical connection 2

Screw connection

Number of levels

1

Number of clamp positions per level

2

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

8.2 mm

Depth

100.8 mm

Explosion-tested version 'Ex e'

No

Closing plate required

Yes

Internally connected stages

No

HS Code

8536.90
