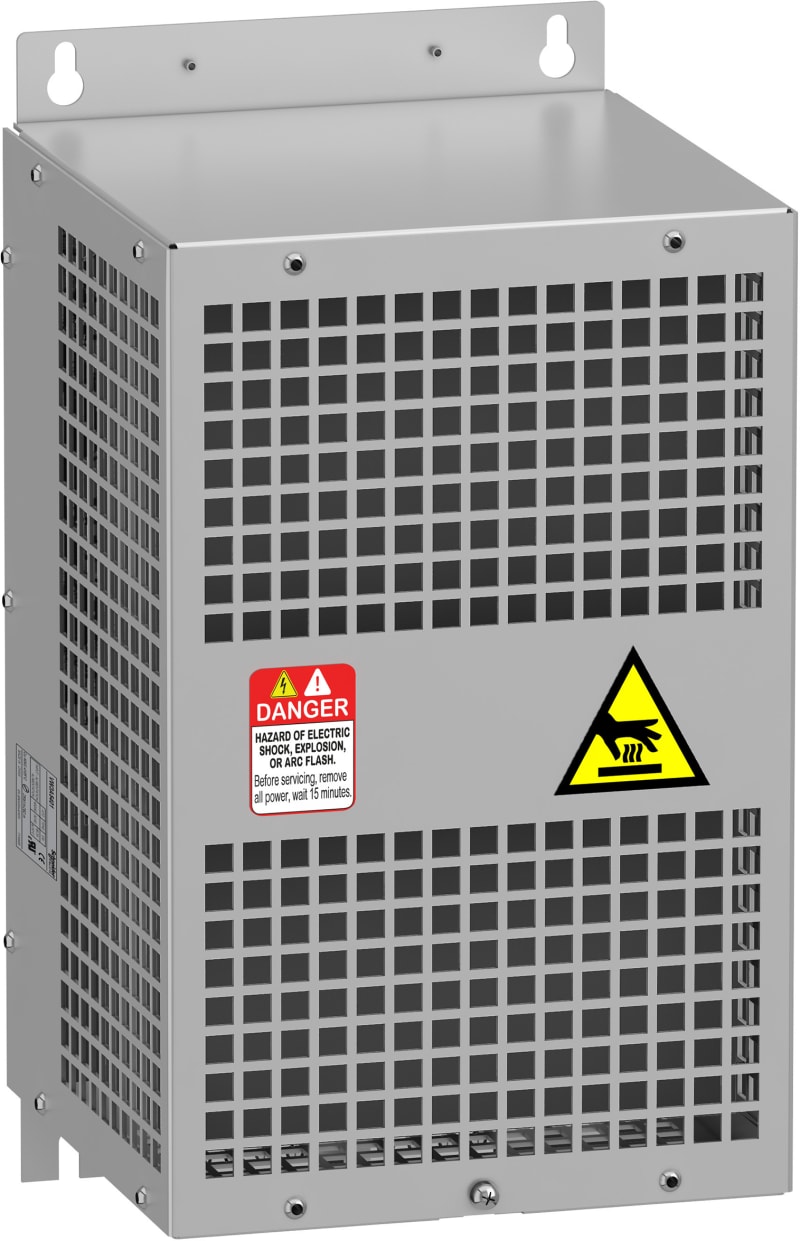

Sinus output filter IP20 15A

Schneider Electric VW3A5402 Sinus output filter IP20 15A.

Manufacturer part number (MPN)

VW3A5402

EAN / GTIN

3606480736810

Sales unit

pcs

IP rating

IP20

Product or component type

Sinus filter

Range compatibility

Altivar Process ATV900; Altivar Process ATV600

Product specific application

Output filter

Maximum motor cable length

1000 m unshielded cable; 500 m shielded cable

[In] rated current

15 A

Thermal losses

76 W at 4 kHz

Product compatibility

Variable speed drive ATV630 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV630 wall mount, motor: 1.5 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 2.2 kW, 200...240 V; Variable speed drive ATV630 wall mount, motor: 3 kW, 200...240 V; Variable speed drive ATV650 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV650 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 5.5 kW, 380...480 V; Variable speed drive ATV930 wall mount, motor: 1.5 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 2.2 kW, 200...240 V; Variable speed drive ATV930 wall mount, motor: 3 kW, 200...240 V; Variable speed drive ATV950 wall mount, motor: 3 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 4 kW, 380...480 V; Variable speed drive ATV950 wall mount, motor: 5.5 kW, 380...480 V

Electrical connection

terminal block, connection capacity: 6 mm² / 10 AWG

Operating altitude

<= 1000 m without current derating; 1000...4000 m with current derating 1 % per 100 m

Switching frequency

4...8 kHz

Maximum output frequency

100 Hz

Maximum voltage drop at rated load

8 %

Permissible voltage

480 V AC

Max current

1.20 x nominal current (duration = 60 s)

Width

220 mm

Height

455 mm

Depth

210 mm

Product weight

13.5 kg

IP degree of protection

IP20; IP21 (with kit VW3A53901)

Environmental characteristic

Biological pollution resistance class 3B1 conforming to IEC 60721-3-3; Chemical pollution resistance class 3C3 conforming to IEC 60721-3-3; Dust pollution resistance class 3S3 conforming to IEC 60721-3-3

Pollution degree

2 conforming to IEC 61800-5-1

Relative humidity

5…95 % without condensation

Ambient air temperature for operation

50…60 °C (with current derating 1.5 % per °C); -15…50 °C (without current derating)

Ambient air temperature for storage

-40…70 °C

Mechanical robustness

Shocks class 3M4 conforming to IEC 60721-3-3; Vibrations class 3M4 conforming to IEC 60721-3-3

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

CN

Warranty (in months)

18

Suitable as sinus filter

Yes

Suitable as du/dt-filter

No

Suitable as radio interference suppression filter

No

Suitable as audio frequency blockage

No

Number of poles, primary side

3

Rated clock frequency

8 kHz

Rated operating frequency

50–60 Hz

Max. rated operation voltage Ue

480 V

Rated current AC

15 A

Degree of protection (IP)

IP20

HS Code

8548.90
