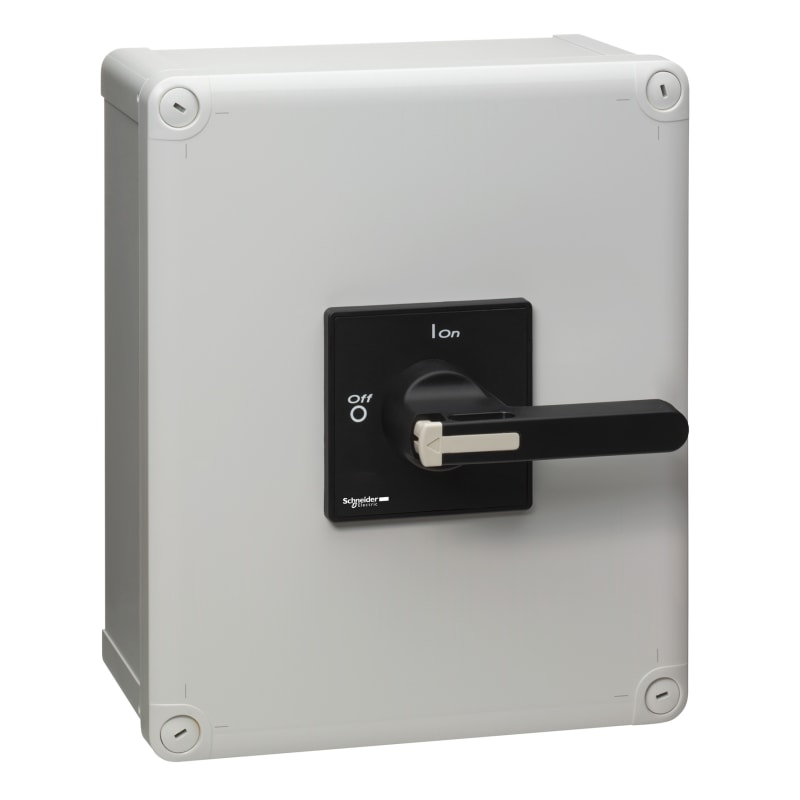

Schneider Electric TeSys Vario enclosed, main switch disconnector, 100A, IP65, long handle VBF5GEN

Schneider Electric VBF5GEN Safety switch 3P 100A enclosed.

Manufacturer part number (MPN)

VBF5GEN

EAN / GTIN

3389119413169

Sales unit

pcs

Package quantity

2 pcs

Rated current

100 A

Number of poles

3P

Range

TeSys

Product name

TeSys VARIO

Device short name

VBF

Device application

Preventive maintenance

Product or component type

Enclosed switch-disconnector

Performance level

High performance

Poles description

3P

Control type

Rotary handle

Type of operator

Long handle

Handle colour

Black

Handle front plate colour

Black

Rotary handle padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

[Ue] rated operational voltage

690 V AC

[Uimp] rated impulse withstand voltage

8 kV

[Ithe] conventional enclosed thermal current

100 A

[Ie] rated operational current

68.5 A (AC-23A) at 400 V

Rated operational power in W

37 kW at 400 V (AC-23); 30 kW at 400 V (AC-3)

Intermittent duty class

30

Making capacity ( I rms)

1250 A at 400 V AC-21A; 1250 A at 400 V AC-22A; 1250 A at 400 V AC-23A

[Icm] rated short-circuit making capacity

2.8 kA at 400 V at Ipeak

[Icw] rated short-time withstand Rms current

1500 A at 400 V duration: 1 s

Rated conditional short-circuit current

10 kA at 400 V - associated fuse 125 A aM; 10 kA at 400 V - associated fuse 125 A gG

Breaking capacity

1000 A at 400 V (AC-21A); 1000 A at 400 V (AC-22A); 1000 A at 400 V (AC-23A)

Mechanical durability

30000 cycles

Electrical durability

30000 cycles AC-21; 30000 cycles DC-1...5

Environmental characteristic

Standard environment

Suitability for isolation

Yes

Connections - terminals

Screw clamp terminals70 mm² - flexible - with cable end; Screw clamp terminals95 mm² - solid

Tightening torque

22.6 N.m - on screw clamp terminals

Fire resistance

960 °C conforming to IEC 60595-2-1

handle front plate dimension

90 x 90 mm

Height

280 mm

Width

220 mm

Depth

191 mm

Product weight

2.19 kg

Standards

IEC 60947-4-1; IEC 60204

Protective treatment

TC

IP degree of protection

IP65 conforming to IEC 60529

Mechanical robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient air temperature for operation

-20…50 °C

Country of origin

CZ

Warranty (in months)

18

• EAN 3389119413169
• SAP 1200284924
• Code 82296248
