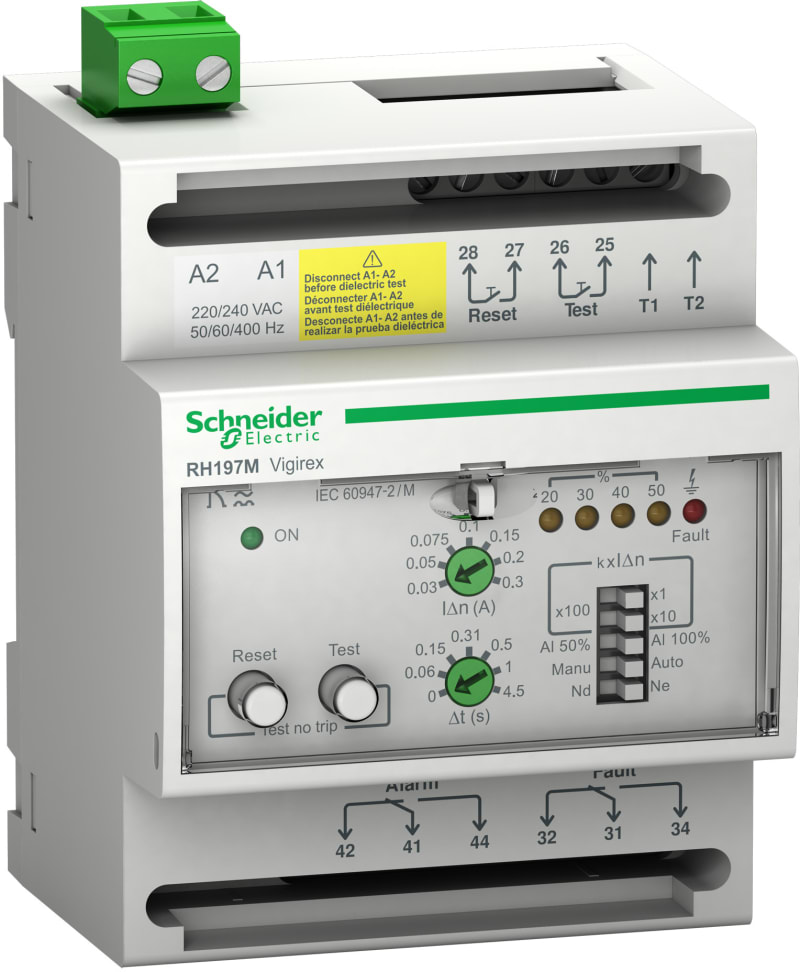

Jf.relay RH197M 110 for 130VAC

Schneider Electric 56516 Earth-fault relay Vigirex RH197M 110 for 130VAC auto or manual reset.

Manufacturer part number (MPN)

56516

EAN / GTIN

3606480359736

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Operating voltage AC 50 Hz

110–130 V

Operating voltage AC 60 Hz

110–130 V

External power supply required

Yes

Supply voltage AC 50 Hz

110–130 V

Supply voltage AC 60 Hz

110–130 V

Current measuring range

0.015–60 mA

Rated switch current

8 A

Rated operating frequency

50–400 Hz

Voltage measuring range

0–1000 V

Voltage type (operating voltage)

AC

Type of electric connection

Screw connection

Rated control supply voltage AC 50 Hz

110–130 V

Rated control supply voltage AC 60 Hz

110–130 V

Voltage type for actuating

AC

With detachable clamps

No

Function

For AC-current system

Rated voltage

0–1000 V

Rated frequency

50–400 Hz

Response value amperage 1

0.03–30 mA

Response value amperage 2

0–30000 mA

Min. adjustable delay-on energization time

0 s

Max. permitted delay-on energization time

4.82 s

Indication of difference current

No

Error registration possible

No

Number of contacts as change-over contact

2

Width

71.2 mm

Height

98.7 mm

Depth

65.8 mm

Country of origin

Italy

HS Code

8536.90

• EAN 3606480359736
• SAP 1200502929
• Code 82633999
