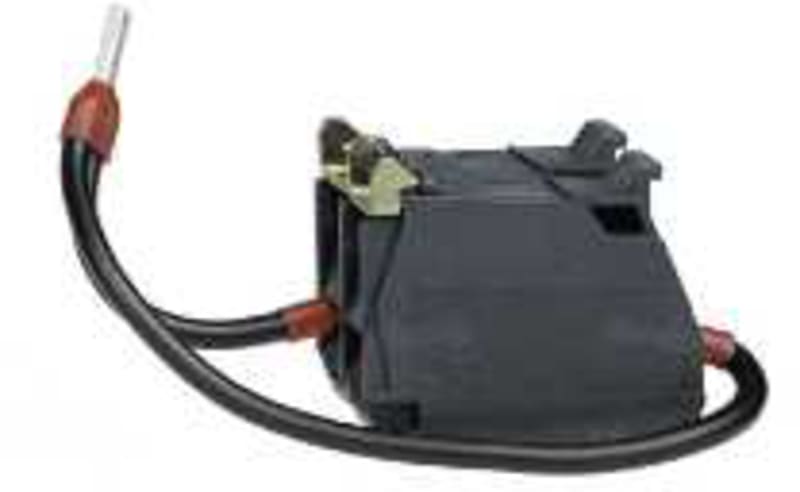

Diode Block FOR Lamp Test 230V
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZBZM156 Control and signalling devices, sign holders.
Technical Specifications
- Manufacturer part number (MPN)
- ZBZM156
- EAN / GTIN
- 3389118030114
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Voltage
- 230 V
- Range of product
- Harmony XB5; Harmony XB4
- Product or component type
- Block for test light
- Product compatibility
- Integral LED
- Light block type
- Double block for test light function
- [Us] rated supply voltage
- 48...230 V AC
- Electrical connection
- Wires
- Material
- Plastic
- Electrical shock protection class
- Class I for Harmony XB4 conforming to IEC 60536; Class II for Harmony XB5 conforming to IEC 60536
- Product weight
- 0.01 kg
- Ambient air temperature for storage
- -40…70 °C
- Ambient air temperature for operation
- -25…70 °C
- Standards
- IEC 60947-1; IEC 60947-5-4; IEC 60947-5-4; IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60947-5-5; IEC 60947-5-5; IEC 60947-5-1; JIS C 4520; IEC 60947-1
- Product certifications
- DNV; UL listed; LROS (Lloyds register of shipping); BV; CSA
- Vibration resistance
- 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 30 gn for 18 ms conforming to IEC 60068-2-27; 50 gn for 11 ms conforming to IEC 60068-2-27
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
- Type of electrical accessory/spare part
- Diode element
Standards & Compliance
- HS Code
- 8536.61
Cross References
- EAN 3389118030114
- SAP 1000070352
- Code 8560469
