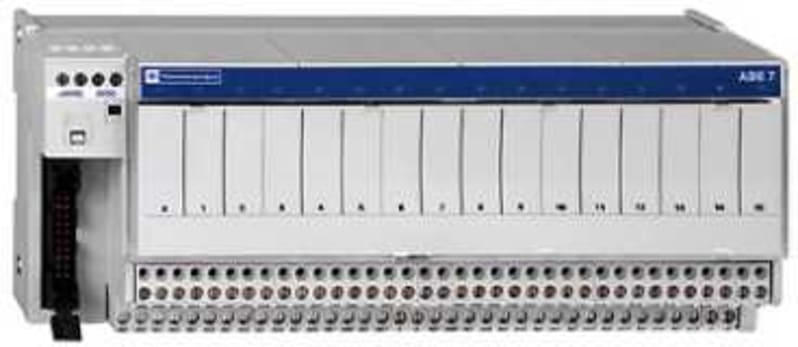

Schneider Electric Sub-base with plug-in electromechanical relay ABE7 - 16 channels - relay 10 mm ABE7R16T230
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ABE7R16T230 Telefast passiv in-/output modules 16 o, pot.fri, 1 c/o, relay 10mm.
Technical Specifications
- Manufacturer part number (MPN)
- ABE7R16T230
- EAN / GTIN
- 3389110644678
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range of product
- Modicon ABE7
- Product or component type
- Sub-base with plug-in electromechanical relay
- Sub-base type
- Output sub-base
- [Us] rated supply voltage
- 19...30 V conforming to IEC 61131-2
- Number of channels
- 16
- supply voltage type
- DC
- Product compatibility
- ABR7S23
- Contacts type and composition
- 1 C/O
- Status LED
- 1 LED per channel (green) channel status; 1 LED (green) power ON
- Polarity distribution
- Volt-free
- Short-circuit protection
- 1 A internal fuse, 5 x 20 mm, fast blow (PLC end)
- Fixing mode
- By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)
- Maximum supply current
- 1 A
- Voltage drop on power supply fuse
- 0.3 V
- [Ui] rated insulation voltage
- 2000 V terminals/mounting rails; 300 V coil circuit/contact circuits conforming to IEC 60947-1
- [Uimp] rated impulse withstand voltage
- 2.5 kV
- Installation category
- II conforming to IEC 60664-1
- Tightening torque
- 0.6 N.m with flat Ø 3.5 mm screwdriver
- Product weight
- 0.775 kg
- Product certifications
- UL; GL; DNV; CSA; EAC
- IP degree of protection
- IP2X conforming to IEC 60529
- Resistance to incandescent wire
- 750 °C conforming to IEC 60695-2-11
- Shock resistance
- 15 gn for 11 ms conforming to IEC 60068-2-27
- Vibration resistance
- 2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6
- Resistance to electrostatic discharge
- 4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2
- Resistance to radiated fields
- 10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3
- Resistance to fast transients
- 2 kV level 3 conforming to IEC 61000-4-4
- Ambient air temperature for operation
- -5…60 °C conforming to IEC 61131-2
- Ambient air temperature for storage
- -40…80 °C conforming to IEC 61131-2
- Pollution degree
- 2 conforming to IEC 60664-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Country of origin
- LV
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389110644678
- SAP 1000026221
- Code 8197957
Product Documentation
More from Schneider Electric
Schneider Electric

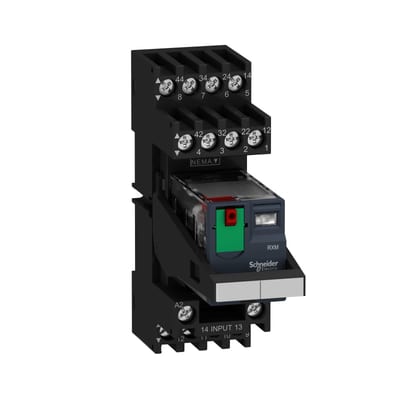

Schneider Electric Harmony, Miniature plug-in relay pre-assembled, 6 A, 4 CO, with lockable test button, mixed terminals socket, 24 V AC RXM4AB1B7PVM
Schneider Electric

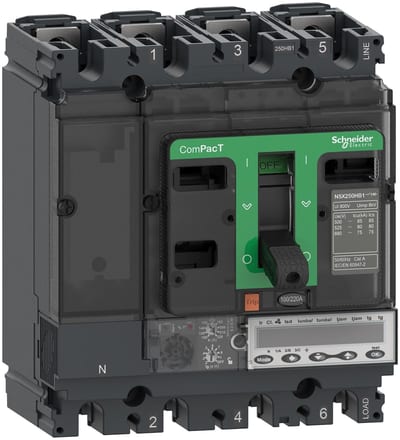

Schneider Electric Circuit breaker, ComPacT NSX250R, 200KA/415VAC, 3 poles, MicroLogic 6.2E-M trip unit 150A C25R36M150
Schneider Electric

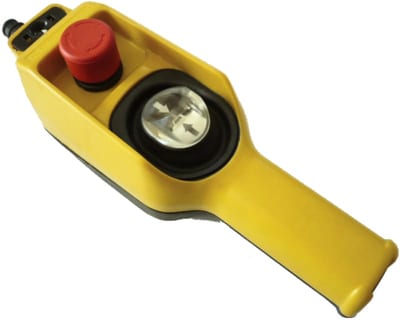

Schneider Electric XACD22P3121 Harmony XAC Pendant Control Station, 2-Pole, 2.2 kW
Schneider Electric
Schneider Electric Push button, KNX, Merten System Design, 4GANG, rockers, nickel metallic MTN6194-6050
Schneider Electric

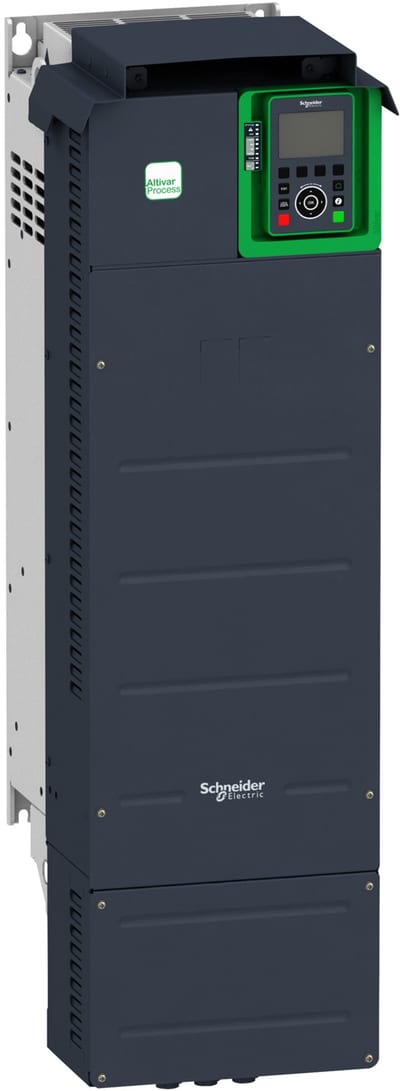

Schneider Electric variable speed drive, ATV930, 90kW, 400/480V, w/o braking unit, IP21 ATV930D90N4C
Schneider Electric
Telequick cover (AK2CA6)
Schneider Electric

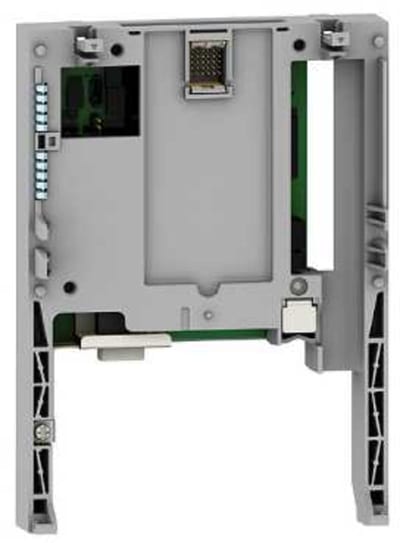

Schneider Electric Profibus DP communication card VW3A3307
Schneider Electric

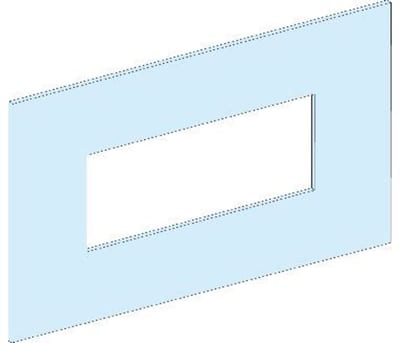

Front plate INS/NSX630 Man.Omk. Horizontal P
