Front plate INS/NSX630 Man.Omk. Horizontal P
Pricing
Request a quote
We reply within 24 hours
Product Description

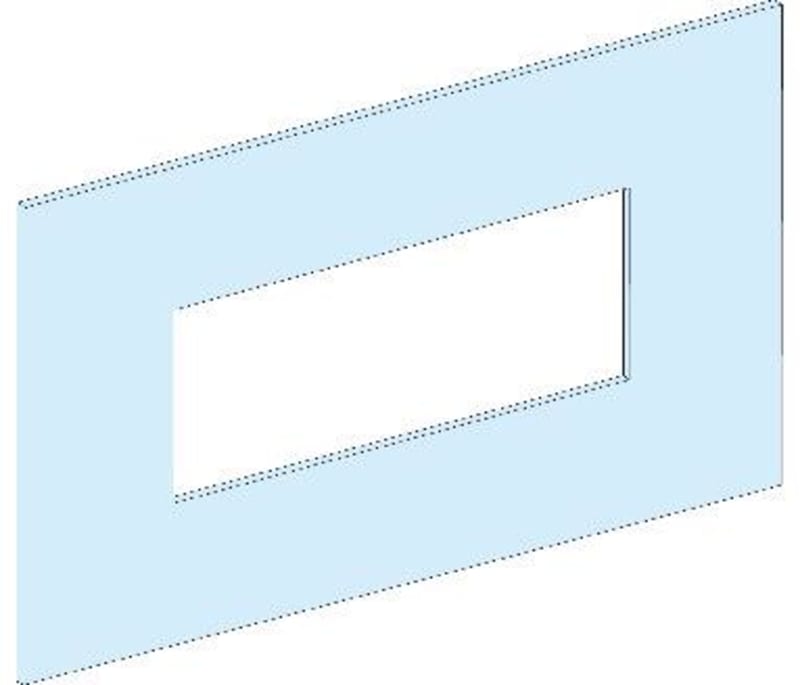

Schneider Electric LVS03659 Front plate for INS250-630/NSX400/630 Manual Changeover switch-Horizontal mounting PrismaSeT P-650mm section.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03659
- EAN / GTIN
- 3606481872456
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed INS320...630 source changeover - control: direct front rotary handle - horizontal installation; ComPact: fixed INV320...630 source changeover - control: direct front rotary handle - horizontal installation; Source changeover: fixed NSX400...630 source changeover without earth leakage protection - control: direct front rotary handle - horizontal installation
- Poles description
- 2 x 3P: mounting plate support: NSX400...630 source changeover horizontal installation; 2 x 4P: mounting plate support: NSX400...630 source changeover horizontal installation; 2 x 3P: mounting plate support: INS320...630 source changeover horizontal installation; 2 x 4P: mounting plate support: INS320...630 source changeover horizontal installation; 2 x 3P: mounting plate support: INV320...630 source changeover horizontal installation; 2 x 4P: mounting plate support: INV320...630 source changeover horizontal installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 10
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 500 mm
- Product weight
- 1.62 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INS320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle ComPact INV320...630 source changeover fixed direct front rotary handle horizontal 4P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 3P 2 direct 10; 650 mm 400 mm PrismaSeT P cubicle source changeover NSX400...630 source changeover without fixed direct front rotary handle horizontal 4P 2 direct 10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Number of Units in Package 3
- 36
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 10
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872456
- SAP 1200546720
- Code 82879755
