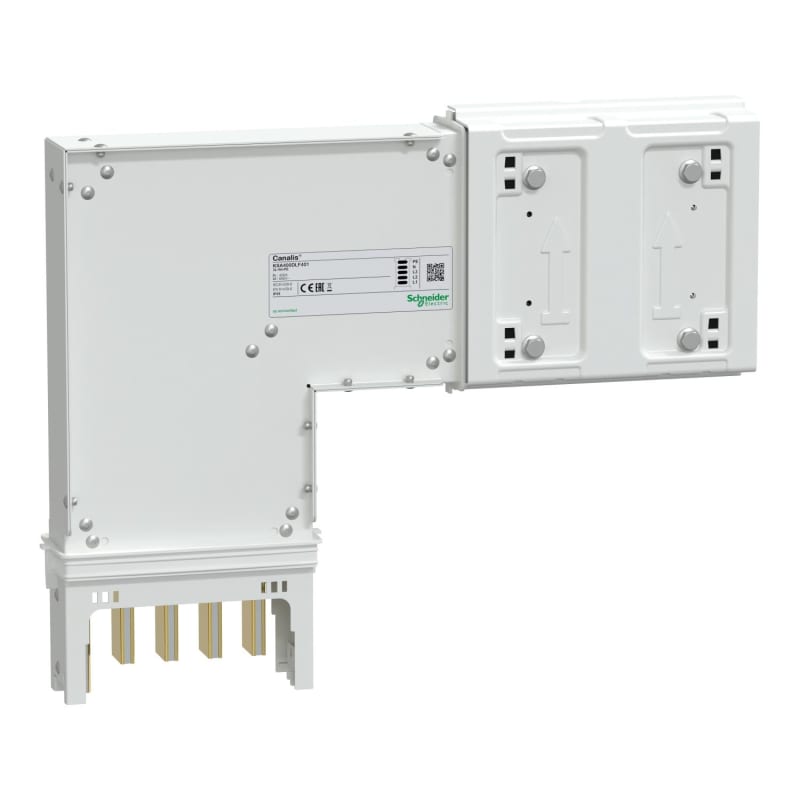

Angle NED 100-250A (KSA250DLF401)

Schneider Electric KSA250DLF401 Canalis KSA 250A - angle - down - 3L+N+PE - standard - white.

Manufacturer part number (MPN)

KSA250DLF401

EAN / GTIN

3606489602024

Sales unit

pcs

Package quantity

7 pcs

Range of product

Canalis

Product name

KS

Device short name

KSA

Offer type

Classic

Product or component type

Elbow

Busbar description

Standard

Product compatibility

Canalis KSC busbar trunking 630…800 A

Device application

Change direction

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

[Ie] rated operational current

250 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

Operating angle

90 °

Direction change type

direction 1: edgewise to downward -

Colour

White (RAL 9001)

Dimension type

Fix

Length

250 mm for side A; 250 mm for side B

Width

54 mm

Height

146 mm

Product weight

2.6 kg

Mounting location

On trunking

Mounting position

Any position

Electrical connection

Lubricated sliding contact

mounting mode

By screws

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Number of Units in Package 1

1

Number of Units in Package 2

7

Country of origin

FR

Warranty (in months)

18

Model

Elbow box

Flexible

No

Number of poles

5

Number of conductors (without earthing)

4

Rated current AC 50 Hz

250 A

Rated voltage AC 50 Hz

230–690 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90
