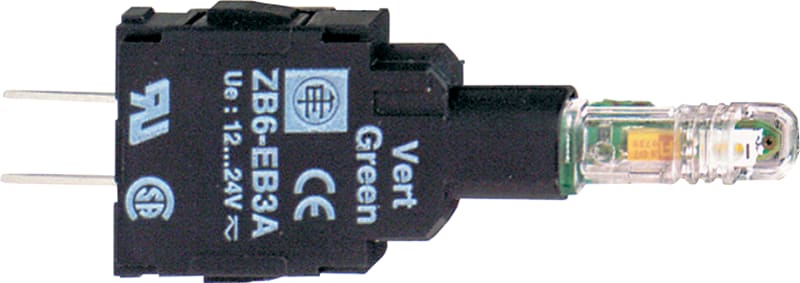

Schneider Electric green light block with body/fixing collar with integral LED 12...24V ZB6EB3A

Schneider Electric ZB6EB3A Control device 16mm, accessories.

Manufacturer part number (MPN)

ZB6EB3A

EAN / GTIN

3389110784251

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB6

Product or component type

Complete body for pilot lights

Device short name

ZB6

Sale per indivisible quantity

5

Connections - terminals

Pins for printed circuit board, connection size: 1 x 0.5 mm

Light source

LED

Bulb base

Integral LED

Light block supply

Direct

Light source colour

Green

[Us] rated supply voltage

12...24 V AC/DC

Product weight

0.003 kg

Operating position

Any position

[Ui] rated insulation voltage

250 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Signalling type

Steady

Supply voltage limits

6…30 V AC/DC

Current consumption

15 mA

Surge withstand

1 kV in contact conforming to IEC 61000-4-5; 2 kV in free air conforming to IEC 61000-4-5

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class II conforming to IEC 61140

Standards

JIS C 852; IEC 60947-5-5; JIS C 4520; UL 508; CSA C22.2 No 14; IEC 60947-5-1; IEC 60947-1

Product certifications

UL; GOST; CSA; CCC

Vibration resistance

+/- 3 mm (f= 2…500 Hz) conforming to IEC 60068-2-6; 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Resistance to fast transients

2 kV conforming to IEC 61000-4-4

Resistance to electromagnetic fields

10 V/m conforming to IEC 61000-4-3

Resistance to electrostatic discharge

6 kV on contact (on metal parts) conforming to IEC 61000-2-6; 8 kV in free air (in insulating parts) conforming to IEC 61000-2-6

Electromagnetic emission

Class B conforming to IEC 55011

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

660

Country of origin

FR

Warranty (in months)

18

Transformer integrated

No

With integrated voltage decreasing resistor

No

With integrated diode

Yes

Colour light source

Green

Lamp type

LED

Type of fastening

Front fastening

With light source

Yes

Connection type auxiliary circuit

PCB connection

Rated voltage Ue at AC 50 Hz

12–24 V

Rated voltage Ue at AC 60 Hz

12–24 V

Rated voltage Ue at DC

12–24 V

Voltage type for actuating

AC/DC

HS Code

8531.80
