Schneider Electric XACD22P3121 Harmony XAC Pendant Control Station, 2-Pole, 2.2 kW

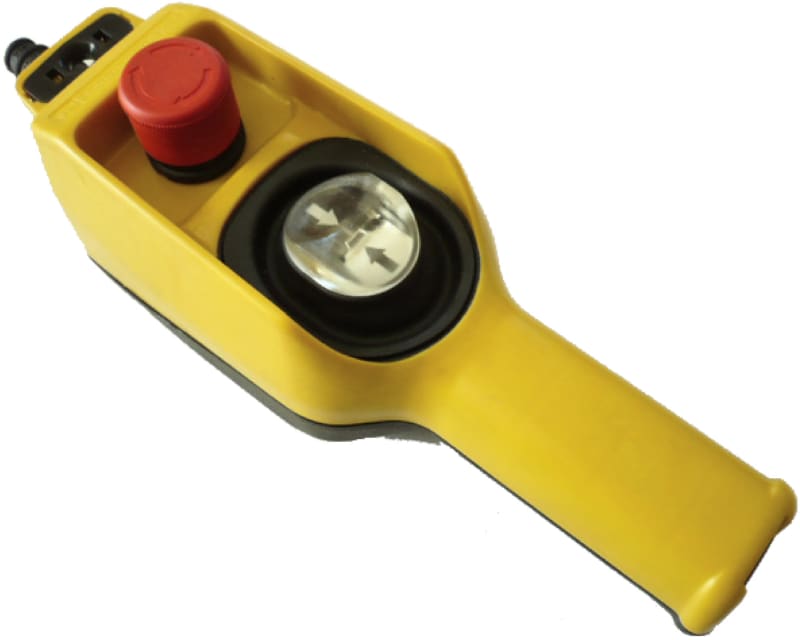

Schneider Electric XACD22P3121 is a Harmony XAC double-insulated pendant control station for single-speed hoist motor control up to 2.2 kW. The unit is fitted with a 2-directional pushbutton (1 NO per direction, brake, 2-pole) and a Ø30 mm 3 NC latching emergency-stop pushbutton, with mechanical interlocking. Enclosure is polypropylene in yellow, rated IP65, with screw-clamp terminals and an operating range of -25…70 °C.

Manufacturer part number (MPN)

XACD22P3121

EAN / GTIN

3389110656114

Sales unit

pcs

Power

2.2 kW

Number of poles

2P

Contact configuration

1 NO

Range of product

Harmony XAC

Product or component type

Pendant control station

Device short name

XACD

Control station type

Double insulated

Enclosure material

Polypropylene

Control type

Intuitive

Electrical circuit type

Power circuit

enclosure type

Complete ready for use

Control station application

Control of single speed hoist motor

Motor starter type

Reversing

Control station composition

1 2-directional button + 1 emergency stop

Control button type

Stop push-button Ø 30 mm 3 NC latching; First direction button 1 NO (brake) 2-pole raise, slow; Second direction button 1 NO (brake) 2-pole lower, slow

Product compatibility

XEDS3121 for reversing operation; XENT1991 for emergency stop

Mechanical interlocking

With mechanical interlocking

Control station colour

Yellow

Connections - terminals

Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end

Standards

IEC 60947-5-1; CSA C22.2 No 14; UL 508; IEC 60204-32

Protective treatment

TH

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Mechanical durability

3000000 cycles

Cable entry

Rubber sleeve with stepped entry 7…18 mm

[Ithe] conventional enclosed thermal current

10 A XENT....; 16 A XEDS....

[Ui] rated insulation voltage

500 V (pollution degree 3) conforming to IEC 60947-1; Emergency stop contact: 400 V (pollution degree 3)

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1; 4 kV emergency stop contact

Contact operation

Snap action

Operating force

28 N

Short-circuit protection

6 A fuse protection by cartridge fuse type aM

Rated operational power in W

2200 W AC-3 at 400 V conforming to IEC 60947-3 appendix A; 2200 W AC-4 at 400 V conforming to IEC 60947-3 appendix A; 3000 W AC-23B at 400 V

Electrical durability

1000000 cycles AC-3, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A; 1000000 cycles AC-4, 2200 W at 400 V, operating rate <10 cyc/mn, load factor = 0.4 conforming to IEC 60947-3 appendix A

Terminals description ISO n°1

(5-6)P; (1-2)P; (7-8)P; (15-16)NO; (13-14)NO; (3-4)P

Terminals description ISO n°2

(11-12)NC; (21-22)NC; (31-32)NC

Terminal identifier

(11-12)NC; (13-14)NO

Product weight

0.41 kg

Warranty (in months)

18

Width

82 mm

Height

300.5 mm

Depth

101 mm

Number of command positions

2

Colour housing cover

Yellow

Housing material

Plastic

Number of speeds

1

Type of executable motions

Transport - hoist

Degree of protection (IP)

IP65

Country of origin

France

HS Code

7907.00
