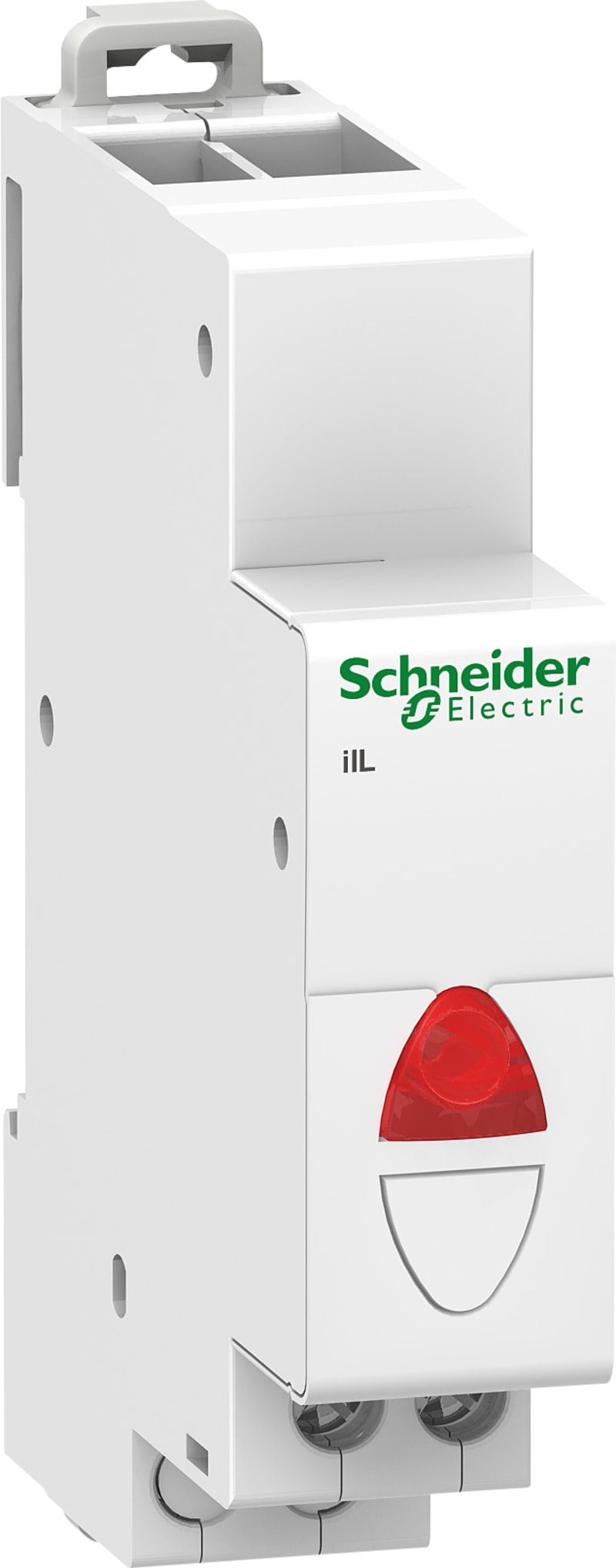

Schneider Electric ACTI9 iIL single indicator light - Red - 12-48 Vac/dc A9E18330
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18330 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Indicator lamp iIL red 12-48 AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18330
- EAN / GTIN
- 3606480088414
- Sales unit
- pcs
- Package quantity
- 12 pcs
- range of product
- Acti9
- Product name
- Acti9 iIL
- Product or component type
- Modular pilot light
- Device short name
- iIL
- [Us] rated supply voltage
- 12...48 V AC at 50/60 Hz; 12...48 V DC
- indicator light
- 1 LED red, service life 100000 h of constant lighting efficiency (consumption 0.3 W)
- mounting mode
- Fixed
- Mounting support
- Symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 69.5 mm
- Colour
- White (RAL 9003)
- Auxiliary connection terminal
- Tunnel type terminal 1 cable(s) rigid 0.5 mm²; Tunnel type terminal 2 cable(s) rigid 2.5 mm²; Tunnel type terminal 1 cable(s) flexible 0.5 mm²; Tunnel type terminal 2 cable(s) flexible 2.5 mm²; Tunnel type terminal 2 cable(s) flexible with ferrule 2.5 mm²
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Standards
- IEC 60947-5-1
- IP degree of protection
- IP2; IPxx B
- Pollution degree
- 3
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.000 cm
- Package 1 Width
- 2.000 cm
- Package 1 Length
- 7.000 cm
- Package 1 Weight
- 39.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 12
- Package 2 Height
- 8.000 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 23.500 cm
- Package 2 Weight
- 523.000 g
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 108
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 5.342 kg
- Country of origin
- BE
- Warranty (in months)
- 18
- Colour calotte
- Red
- Lamp type
- LED
- Max. lamp power
- 0.3 W
- Rated voltage
- 48 V
- Voltage type
- AC/DC
- Width in number of modular spacings
- 1
- Built-in depth
- 69.5 mm
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480088414
- SAP 1000343265
- Code 8378968
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ACTI9 iPB 1NO-1NC single push button grey A9E18033
Schneider Electric
Schneider Electric KNX power supply REG-K/640 mA with emergency power input, light grey MTN683890
Schneider Electric
Schneider Electric Painted steel cover cut-out 125X125MM with filter IP55 NSYCAP125LZF
Schneider Electric
Schneider Electric Illuminated selector switch, Harmony XB4, metal, red handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 24V AC DC XB4BK124B5
Schneider Electric
Schneider Electric Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC RPZF1
Schneider Electric
Schneider Electric basic digital output kit STB - 24 V DC - 16 O STBDDO3705KS
Schneider Electric
Mushroom Head Yellow Ø40mm
ZB5AC5
Schneider Electric
Schneider Electric A9F08201 ACTI9 IC60H Miniature Circuit Breaker 2P 1 A, Curve D
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy A9E18330?
- A9E18330 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is A9E18330.
- What is the HS code for A9E18330?
- The customs tariff (HS) code for A9E18330 is 8531.80.
- Who manufactures A9E18330?
- A9E18330 is a Schneider Electric product in the Control & Automation range.
- Is a datasheet available for A9E18330?
- Yes — the A9E18330 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for A9E18330?
- The minimum order quantity is 1.
- Is A9E18330 available?
- Yes — A9E18330 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
