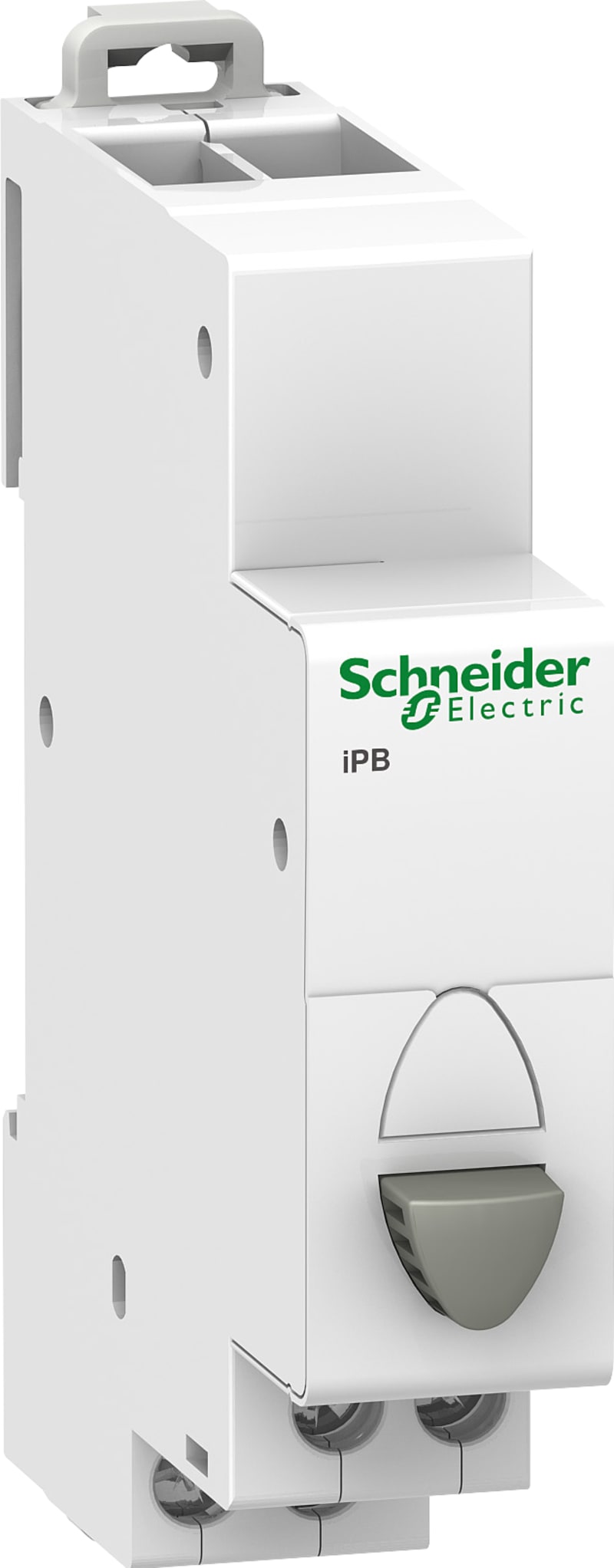

Schneider Electric ACTI9 iPB 1NO-1NC single push button grey A9E18033
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9E18033 — Acti9 auxiliary contact. Auxiliary or alarm contact block for the Acti9 modular range. Push-button iPB 1NO-1NC grey.
Technical Specifications
- Manufacturer part number (MPN)
- A9E18033
- EAN / GTIN
- 3606480088254
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Contact configuration
- 1 NO + 1 NC
- range of product
- Acti9
- Product name
- Acti9 iPB
- Product or component type
- Push-button
- Device short name
- iPB
- Standards
- IEC 60669-1; IEC 60947-5-1
- Contacts type and composition
- 1 NO + 1 NC
- [Ie] rated operational current
- 20 A
- [Ue] rated operational voltage
- 250 V AC
- Control type
- 1 push-button grey
- mounting mode
- Fixed
- Mounting support
- 35 mm symmetrical DIN rail
- Comb busbar and distribution block compatibility
- Upside: Clario; Upside: Librio; Upside: ProDis
- 9 mm pitches
- 2
- Height
- 82 mm
- Width
- 18 mm
- Depth
- 71.5 mm
- Colour
- White
- Electrical durability
- AC-22: 30000 cycles AC 50/60 Hz
- Connections - terminals
- Staggered tunnel terminal1 cable(s) 0.5 mm² rigid; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible; Staggered tunnel terminal1 cable(s) 0.5 mm² flexible with ferrule; Staggered tunnel terminal2 cable(s) 2.5 mm² rigid; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible; Staggered tunnel terminal2 cable(s) 2.5 mm² flexible with ferrule
- Wire stripping length
- 9 mm
- Tightening torque
- 1 N.m
- Tropicalisation
- 2
- Relative humidity
- 95 % at 55 °C
- Ambient air temperature for operation
- -35…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 12
- Number of Units in Package 3
- 108
- Warranty (in months)
- 18
- Number of contacts as normally closed contact
- 1
- Number of contacts as normally open contact
- 1
- Switching current
- 20 A
- Switching voltage
- 250 V
- Voltage type
- AC
- With signal lamp
- No
- Colour calotte
- Grey
- Colour button
- Grey
- Width in number of modular spacings
- 1
- Built-in depth
- 50 mm
- Degree of protection (IP)
- IP20
- Country of origin
- Belgium
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480088254
- SAP 1000343244
- Code 8378936
Product Documentation
More from Schneider Electric
Schneider Electric

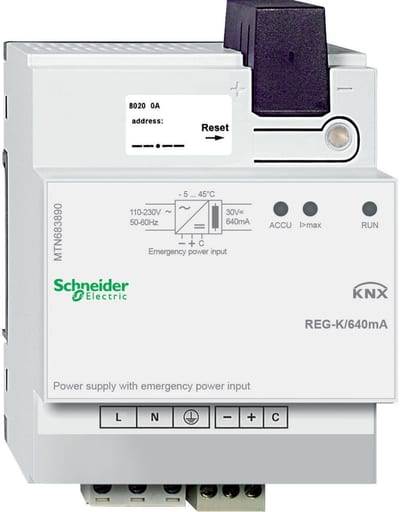

Schneider Electric KNX power supply REG-K/640 mA with emergency power input, light grey MTN683890
Schneider Electric

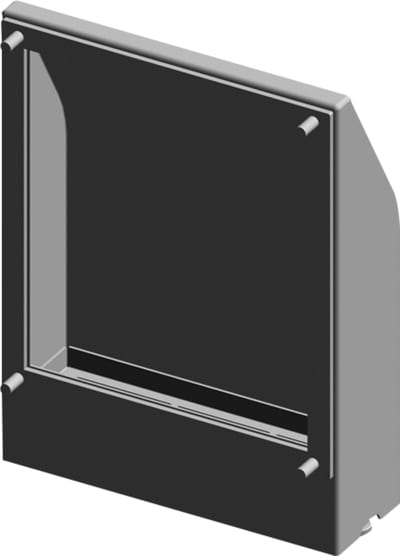

Schneider Electric Painted steel cover cut-out 125X125MM with filter IP55 NSYCAP125LZF
Schneider Electric

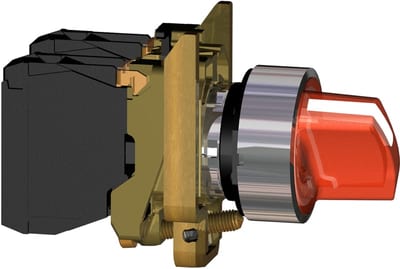

Schneider Electric Illuminated selector switch, Harmony XB4, metal, red handle, 22mm, universal LED, 2 positions, 1NO + 1NC, 24V AC DC XB4BK124B5
Schneider Electric

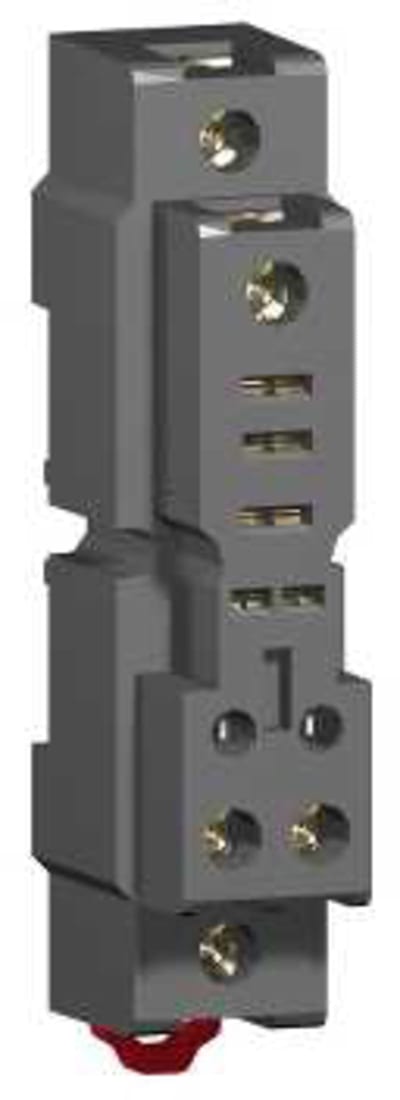

Schneider Electric Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC RPZF1
Schneider Electric

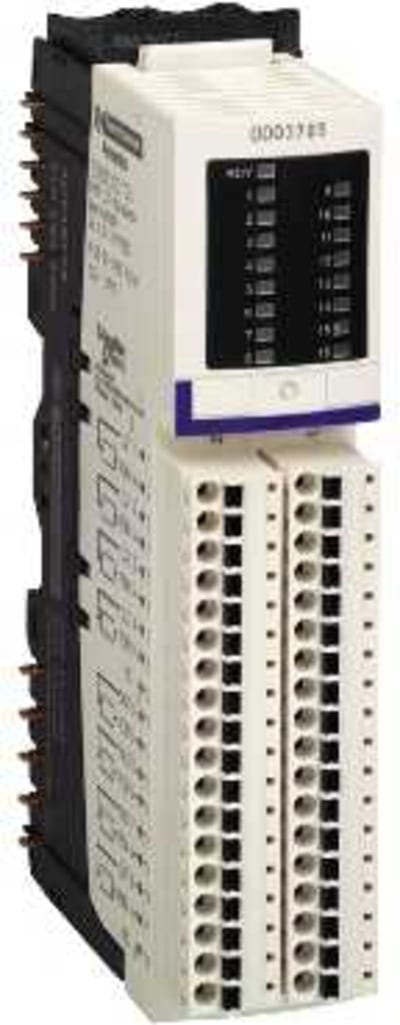

Schneider Electric basic digital output kit STB - 24 V DC - 16 O STBDDO3705KS
Schneider Electric

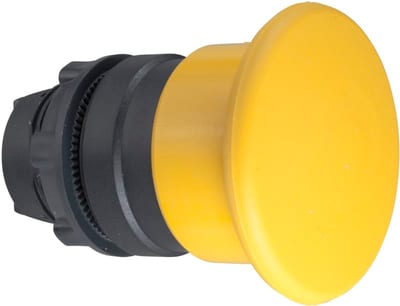

Mushroom Head Yellow Ø40mm
ZB5AC5
Schneider Electric

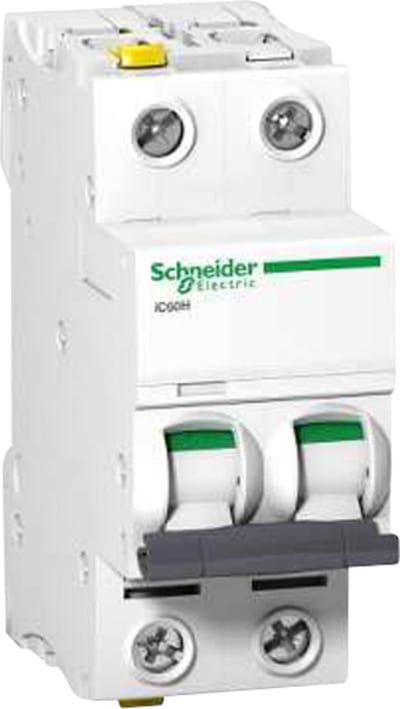

Schneider Electric A9F08201 ACTI9 IC60H Miniature Circuit Breaker 2P 1 A, Curve D
Schneider Electric

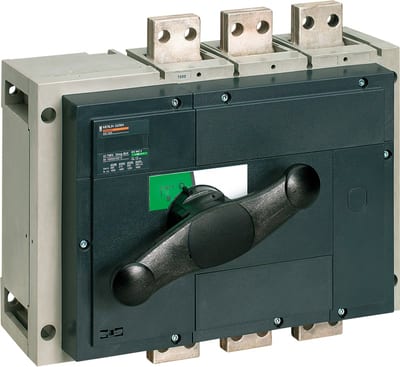

INS800 3P (31330)
