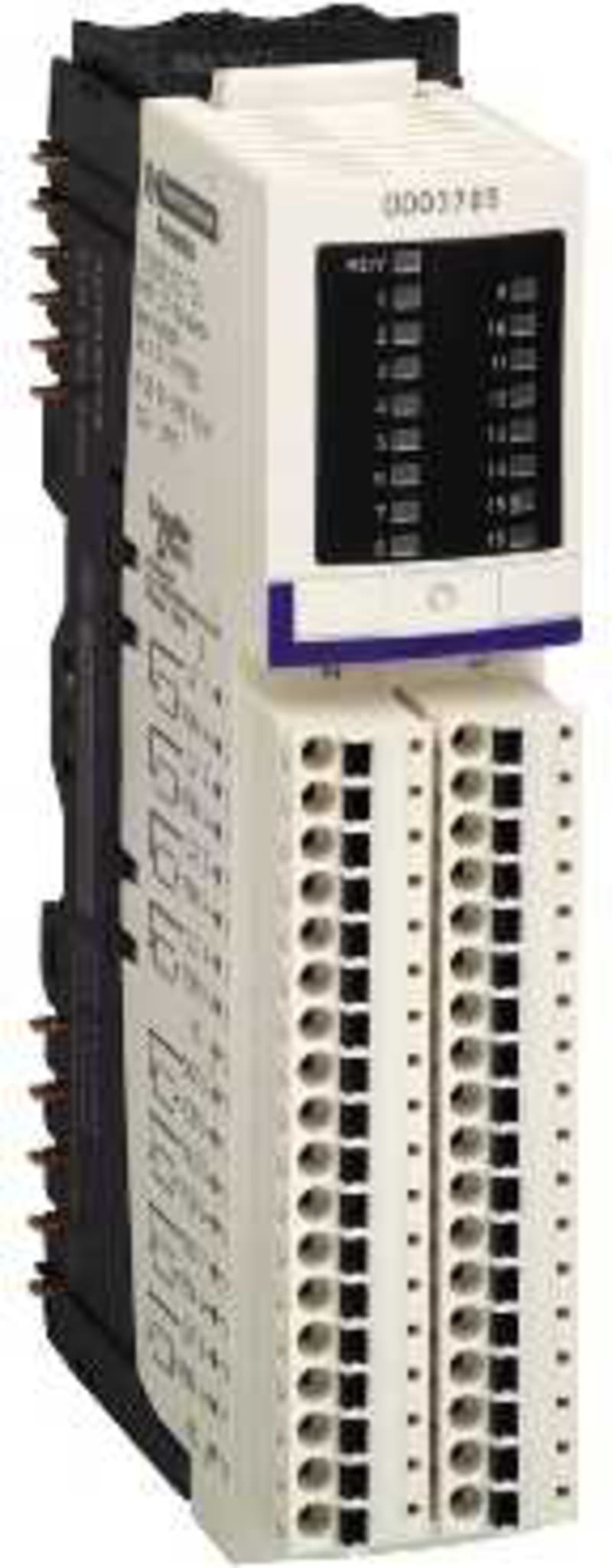

Schneider Electric basic digital output kit STB - 24 V DC - 16 O STBDDO3705KS

Schneider Electric STBDDO3705KS STB kit 16 out, 24VDC,0.5A protected.

Manufacturer part number (MPN)

STBDDO3705KS

EAN / GTIN

3595863932638

Sales unit

pcs

Package quantity

34 pcs

Voltage

24 V DC

Range of product

Modicon STB distributed I/O solution

Product or component type

Basic digital output kit

Kit composition

STBDDO3705 module; STBXBA3000 base; STBXTS1180, 18-terminal screw type connector

Product compatibility

Power distribution module STBPDT3100/3105; I/O base STBXBA3000

Range compatibility

Logic/motion controller - Modicon M262; Modicon M580; Third party

Device application

Industrial application

Discrete output number

16

Discrete output logic

Positive logic (source)

Discrete output voltage

24 V DC for solid state

Discrete output current

500 mA

Response time on output

< 10 ms off to on; < 10 ms on to off

Maximum leakage current

0.4 mA 30 V DC at state 0

Typical current consumption

135 mA at 5 V DC

Electrical connection

Screw terminal

Height

13.9 mm

Width

128.3 mm

Depth

70 mm

Product weight

0.086 kg

IP degree of protection

IP20

Marking

CE

Product certifications

UL; CSA; FM Class 1 Division 2

Standards

IEC 61131-2

Relative humidity

95 % at 60 °C without condensation

Operating altitude

<= 2000 m

Pollution degree

2

Shock resistance

30 gn for 11 ms conforming to IEC 88 reference 2-27

Number of Units in Package 1

1

Number of Units in Package 2

20

Number of Units in Package 3

320

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

Number of digital outputs

16

Digital inputs configurable

No

Digital outputs configurable

Yes

Input current at signal 1

0.4 mA

Permitted voltage at input

19.2–30 V

Type of voltage (input voltage)

DC

Output current

0.5 A

Permitted voltage at output

24 V

Type of output voltage

DC

Short-circuit protection, outputs available

Yes

With optical interface

No

Supporting protocol for TCP/IP

Yes

Supporting protocol for PROFIBUS

Yes

Supporting protocol for CAN

Yes

Supporting protocol for INTERBUS

Yes

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

Yes

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Time delay at signal change

2 ms

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8538.90
