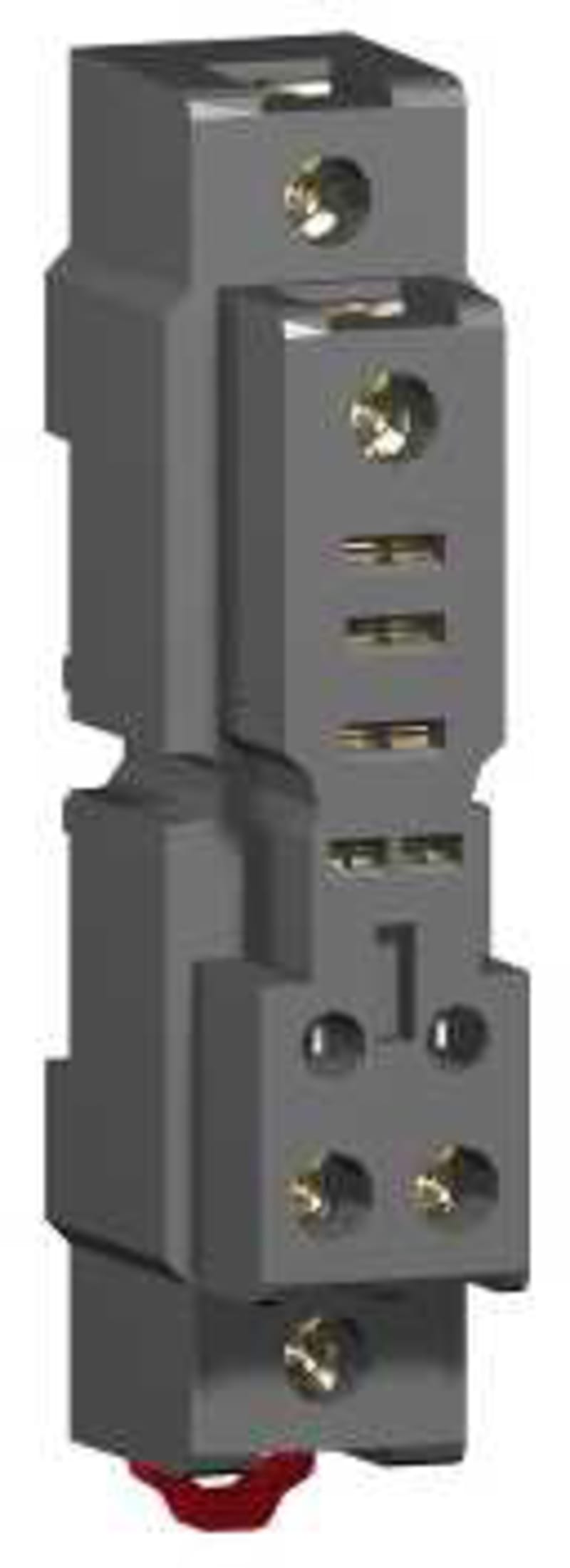

Schneider Electric Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC RPZF1

Schneider Electric RPZF1 Plinth effektrelé 1CO.

Manufacturer part number (MPN)

RPZF1

EAN / GTIN

3389119402286

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RPZ

Product or component type

Socket

Product compatibility

Plug-in relay RPM with 1 C/O contact

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

16 A

[Ue] rated operational voltage

250 V

Contact terminal arrangement

Mixed

Tightening torque

< 1 N.m for M3.5 screw(s); < 0.8 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

4 kV

Overvoltage category

III

Pollution degree

3

Product weight

0.031 kg

Connections - terminals

Contact terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...4 mm² / 20 AWG...12 AWG; Contact terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...4 mm² / 20 AWG...12 AWG; Contact terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...2.5 mm² / 20 AWG...14 AWG; Contact terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...2.5 mm² / 20 AWG...14 AWG; Coil terminal - screw clamp terminals, 2 wires solid cable without cable end 0.5...2.5 mm² / 20 AWG...14 AWG; Coil terminal - screw clamp terminals, 1 wire solid cable without cable end 0.5...2.5 mm² / 20 AWG...14 AWG; Coil terminal - screw clamp terminals, 2 wires flexible cable with cable end 0.5...1.5 mm² / 20 AWG...16 AWG; Coil terminal - screw clamp terminals, 1 wire flexible cable with cable end 0.5...1.5 mm² / 20 AWG...16 AWG

IP degree of protection

IP20 conforming to IEC 60529

Dielectric strength

2500 V

Standards

IEC 61984; CSA C22.2 No 14; UL 508

Product certifications

CSA; UL; EAC; CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-40…55 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3 cm

Package 1 Width

2.1 cm

Package 1 Length

8.5 cm

Package 1 Weight

30 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

6.5 cm

Package 2 Width

9 cm

Package 2 Length

10.7 cm

Package 2 Weight

335 g

Unit Type of Package 3

S03

Number of Units in Package 3

240

Package 3 Height

30 cm

Package 3 Width

30 cm

Package 3 Length

40 cm

Package 3 Weight

8.593 kg

Country of origin

CN

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Width

21 mm

Height

80 mm

Depth

31 mm

With detachable clamps

No

Function extension possible

Yes

Type of electric connection

Screw connection

Number of pins

3

HS Code

8536.69
