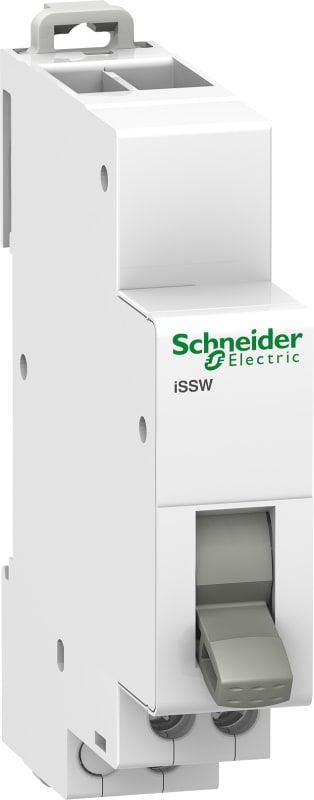

Schneider Electric A9E18073 linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions

Schneider Electric A9E18073 linear switch - iSSW - 1 C/O - 20A - 250 V AC - 3 positions is listed under Switchgear & Protection / Disconnect Switches. Sales unit: pcs; Package quantity: 12 pcs; range of product: Acti9; Product name: Acti9 iSSW; Product or component type: Changeover switch; Device short name: iSSW.

Manufacturer part number (MPN)

A9E18073

Sales unit

pcs

Package quantity

12 pcs

range of product

Acti9

Product name

Acti9 iSSW

Product or component type

Changeover switch

Device short name

iSSW

Device application

Electrical circuit control

Poles description

1P

Contacts type and composition

1 C/O

[Ue] rated operational voltage

250 V AC 50/60 Hz

Standards

IEC 60669-1; IEC 60947-5-1

[Ie] rated operational current

20 A

Control type

Toggle 3 positions

Marking

1 - 0 - 2

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

2

Height

82 mm

Width

18 mm

Depth

75 mm

Colour

White

Electrical durability

AC-22: 30000 cycles cos Phi = 0.8

Connections - terminals

Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² flexible; Staggered tunnel terminal (downside) 2 cable(s) 0.5…2.5 mm² rigid without cable end

Wire stripping length

9 mm

Tightening torque

1 N.m

IP degree of protection

IP20 conforming to IEC 60529

Tropicalisation

2

Pollution degree

3

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-20…50 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.900 cm

Package 1 Width

7.500 cm

Package 1 Length

9.000 cm

Package 1 Weight

44.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

12

Package 2 Height

8.000 cm

Package 2 Width

10.000 cm

Package 2 Length

23.000 cm

Package 2 Weight

588.000 g

Unit Type of Package 3

S03

Number of Units in Package 3

108

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.790 kg

Country of origin

BE

Warranty (in months)

18

EAN

3606480088506

Switching function

Two-way switch

Number of contacts as change-over contact

1

Number of poles

2

Rated current

20 A

Rated voltage

250 V

Min. rated voltage

250 V

Voltage type

AC

With signal lamp

No

Colour calotte

White

Width in number of modular spacings

1

Built-in depth

75 mm

Degree of protection (IP)

IP40

Imprint/indication

None

HS Code

8536.50
