Doorswitch Spacial 3D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYINLCRN — Door switch for PanelSet WM enclosure. N/C contact (on lock), 240 V AC/3 A.
Technical Specifications
- Manufacturer part number (MPN)
- NSYINLCRN
- EAN / GTIN
- 3606480181986
- Sales unit
- pcs
- Package quantity
- 24 pcs
- Range
- PanelSeT
- Product or component type
- Door switch
- Application
- Multi-purpose
- Nominal dimensions of the housing
- -
- Mounting location
- Enclosure
- Range compatibility
- PanelSeT cannot be installed on 19" mounting plates; PanelSeT S3D, CRN, S3X enclosures
- Device composition
- Fixing elements; 1 x switch/commutator unit; 1 x fixing support
- Quantity per set
- Set of 1
- Fixing mode
- Direct fixing - enclosure location
- Input type
- NC + NO
- Absolute maximum input
- 3 A/240 V
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.500 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 18.000 cm
- Package 1 Weight
- 198.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 24
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.752 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 384
- Package 3 Height
- 171.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 87.000 kg
- Country of origin
- ID
- Warranty (in months)
- 18
Cross References
- EAN 3606480181986
- SAP 1000488803
- Code 8928865
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F08220 ACTI9 IC60H Miniature Circuit Breaker 2P 20 A, Curve D
Schneider Electric

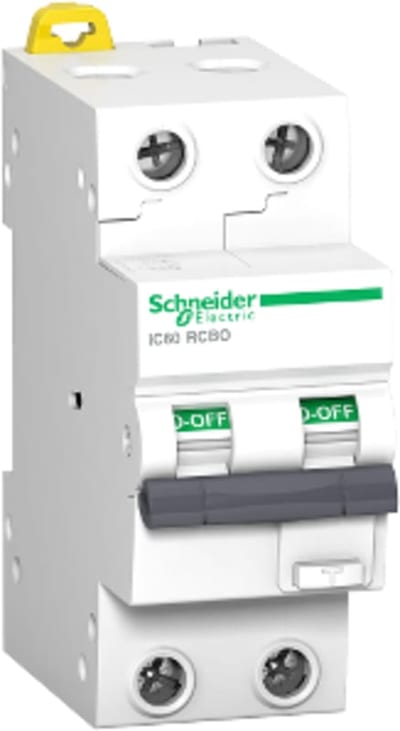

Schneider Electric Residual current breaker with overcurrent protection (RCBO), ACTI9 IC60, 2P, 10A, C curve, 10000A/15KA, A type, 300MA A9D54210
Schneider Electric

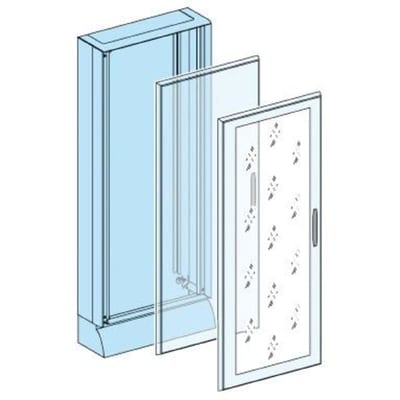

Schneider Electric Floor standing enclosure, PrismaSeT G, W 600mm, H 1880mm (33M), IP30 LVS08204
Schneider Electric

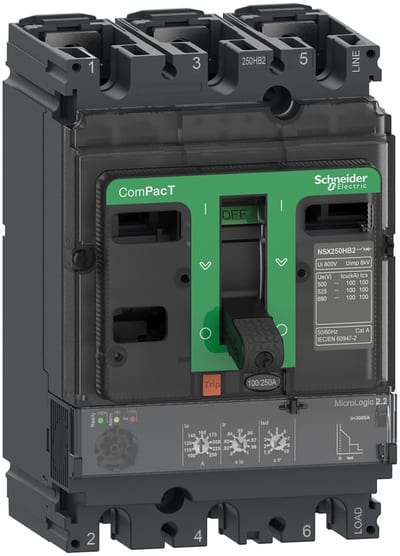

Schneider Electric Circuit breaker, ComPacT NSX100B, 25KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 100A C10B32D100
Schneider Electric

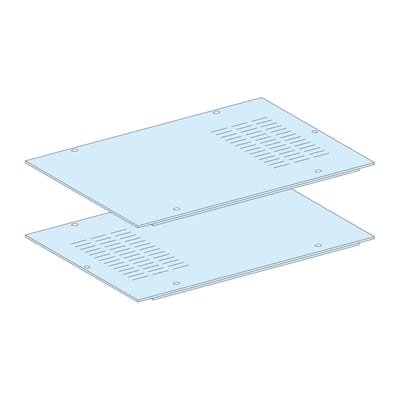

Backplate IP30 width 800mm PrismaSeT P
LVS08738
Schneider Electric

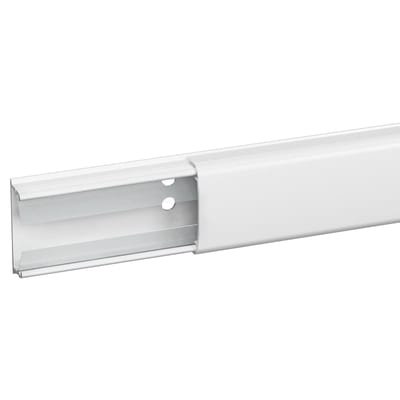

Schneider Electric OptiLine - minitrunking - 12 x 30 mm - PVC - cable retain function - polar white ISM14230P
Schneider Electric
Schneider Electric BMXAMI0800 non-isolated analogue input module X80 - 8 inputs - fast speed
Schneider Electric

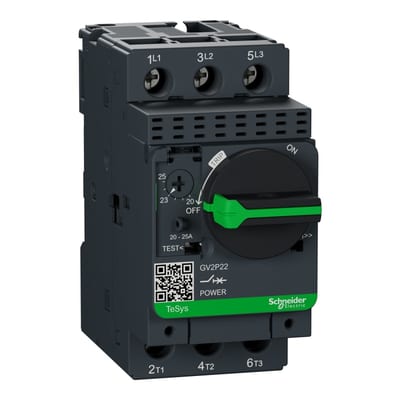

Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 20-25 A, thermal magnetic, screw clamp terminals GV2P22
