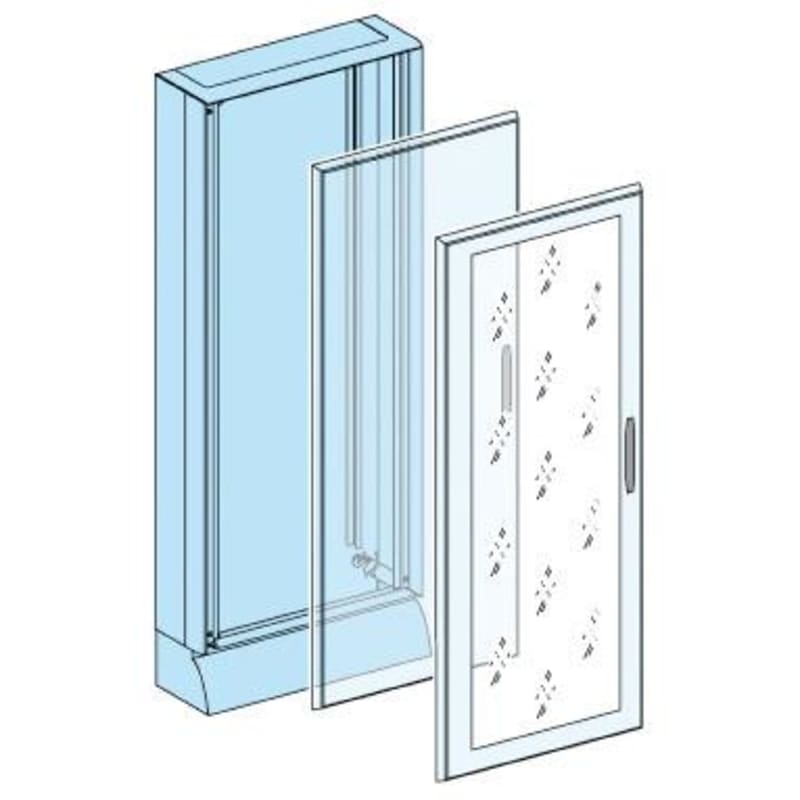

Schneider Electric Floor standing enclosure, PrismaSeT G, W 600mm, H 1880mm (33M), IP30 LVS08204
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08204 Floor-standing cabinet PrismaSeT G-630A-IP30-33 modules-width 600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08204
- EAN / GTIN
- 3606481876362
- Sales unit
- pcs
- IP rating
- IP30
- Modular width
- 33 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form; Metal enclosure; Indoor enclosure
- Enclosure/cubicle description
- Floor-standing enclosure - width 600 mm
- Kit composition
- uprights; rear plate; 2 side panel; top plate; bottom plate; plinth
- Additional information
- Can be combined side by side
- type of front plate
- Without to be ordered separately
- Number of vertical modules [50 mm]
- 33
- Number of 18 mm modules per row
- 24
- Standards
- IEC 61439-1; IEC 61439-2; IEC 62208
- Product certifications
- ASTA; EAC
- [Ui] rated insulation voltage
- 1000 V on main rear busbars conforming to IEC 61439-2
- Network frequency
- 50/60 Hz
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Short-circuit current
- 50 kA
- [Icw] rated short-time withstand current
- 25 kA 1 s conforming to IEC 61439-1
- [Ipk] rated peak withstand current
- 53 kA conforming to IEC 61439-1
- Electrical insulation class
- Class I
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 595 mm
- Height
- With plinth: 1880 mm
- Depth
- 205 mm
- Product weight
- 27.3 kg
- IP degree of protection
- IP30 with front plate; IP40 with door; IP41 with door and canopy; IP43 with door, canopy and IP43 gasket
- IK degree of protection
- IK07 with front plate; IK08 with transparent door; IK10 with plain door
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 8
- Country of origin
- FR
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK07
- Degree of protection (IP)
- IP30
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
