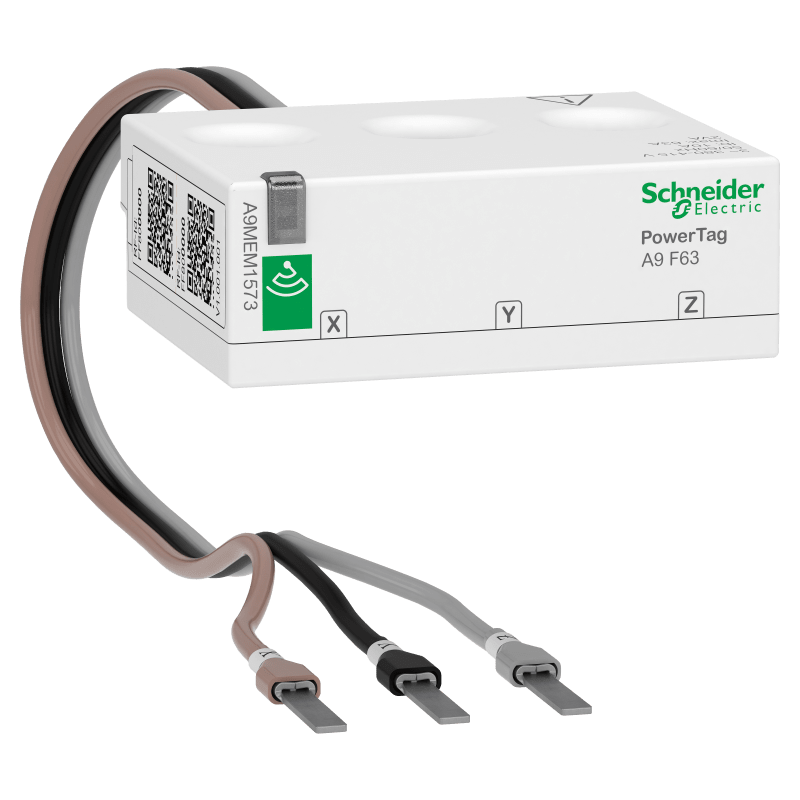

Schneider Electric energy sensor PowerTag Flex 63A 3P top and bottom position A9MEM1573

Schneider Electric A9MEM1573 Acti 9 PowerTag FLEX 3P 63A wireless energy meter for mounting on all fuses.

Manufacturer part number (MPN)

A9MEM1573

EAN / GTIN

3606489940843

HS code

8544.42

Sales unit

pcs

Package quantity

30 pcs

Range of product

PowerLogic

Product name

PowerTag A9 F63

Product or component type

Energy sensor

Poles

3P

Maximum current [Imax]

63 A

[Ib] Basic current

10 A

Starting current

40 mA

Saturation current

130 A

Product specific application

Cost allocation; Load monitoring; Overload alarm; Circuit monitoring; Energy management

Concentrator compatibility

EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Harmony Hub; Acti9 PowerTag Link; Acti9 PowerTag Link HD

Application

Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm

Range compatibility

TeSys TeSys D LC1D for contactor In <= 63 A; Acti9 for circuit breaker In <= 63 A; TeSys TeSys GV2 for circuit breaker; TeSys TeSys GV3 for circuit breaker In <= 63 A; Acti9 Acti9 DT40 Vigi; Acti9 Acti9 iDT40; Acti9 Acti9 iC40; Acti9 Acti9 C40; Acti9 Acti9 iC60; Multi9 Multi9 C60; Acti9 Acti9 iDPN Vigi; Acti9 Acti9 C120 In <= 63 A; Acti9 Acti9 NG125 In <= 63 A; TeSys TeSys U; TeSys TeSys K

Type of measurement

Voltage; Active energy; Active power; Current; Power factor

Accuracy class

Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12

Mounting location

Top or bottom

Mounting support

On circuit breaker

Product destination

Switchboard

Event management

Voltage loss with measured current at voltage loss

Transmission support medium

Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4

Emission power

10 mW

Form factor

Flex

Mounting mode

By screws (terminals)

Electrical connection (voltage sensing & power supply)

Wires with cable end

Cable cross section

1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²

Cable length

0.25 m

supply voltage

380...415 V AC, +/- 20 %, between phases

Network frequency

50 Hz; 60 Hz

Maximum power consumption

2 VA

Standards

IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1

Product certifications

IEC; DNV Marine

Height

Sensor element: 19.5 mm

Width

Sensor element: 54 mm

Depth

Sensor element: 43 mm

Product weight

38 g

Colour

White (RAL 9003)

Compatibility code

PowerTag A9 F63

Quality labels

CE

Directives

2014/53/EU - radio equipment directive

Operating altitude

0...2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Overvoltage category

III conforming to IEC 61010-1

Measurement category

Category III conforming to IEC 61010-2-030

IP degree of protection

IP20 conforming to IEC 60529

IK degree of protection

IK05

Pollution degree

3

Relative humidity

0…95 % at 45 °C conforming to IEC 60721-3-3

Vibration resistance

3M4 conforming to IEC 60721-3-3

Electromagnetic compatibility

Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311

environmental characteristics

Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use

Number of Units in Package 1

1

Number of Units in Package 2

48

Warranty (in months)

18

HS Code

8544.42

• EAN 3606489940843
• SAP 1200445191
• Code 82499707
