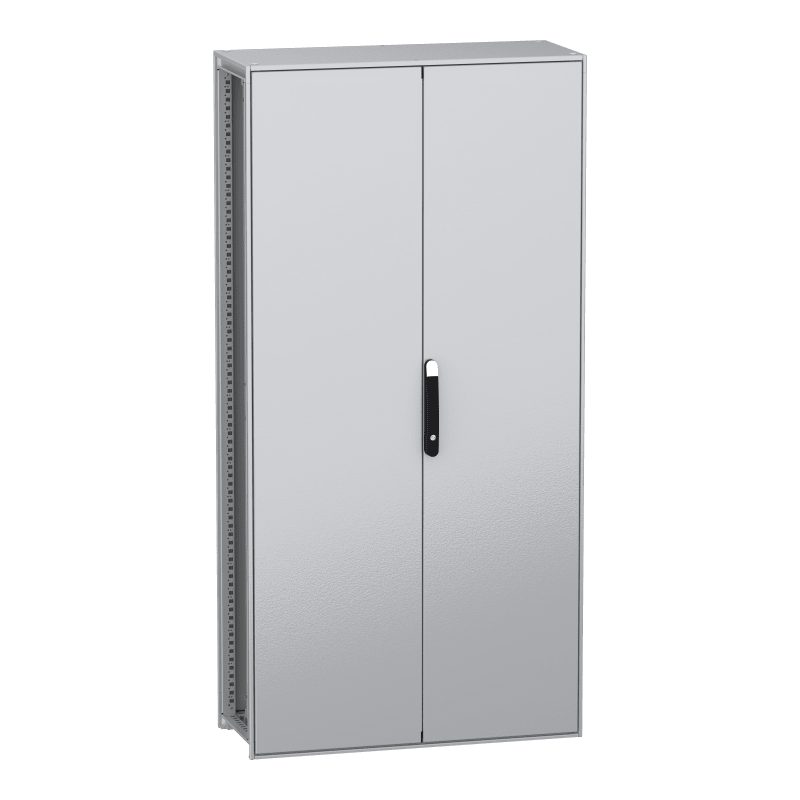

Floor-standing cabinet SFN m/m.pl 2000X1000X400 2DOOR
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFN2010402DP — Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, plate, 2000x1000x400mm, 2 doors, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFN2010402DP
- EAN / GTIN
- 3606486103425
- Sales unit
- pcs
- Dimensions
- 2000×1000×400
- Range
- PanelSeT
- Extended range
- PanelSeT SFN
- Application
- Multi-purpose
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 1000 mm
- Enclosure nominal depth
- 400 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 2 sliding rails; 4 mounting plate quick-fixing brackets; 1 structure: right door; 1 rear panel; 1 roof; 1 mounting plate; 2 door; 1 locking system with handle; 1 locking bar system 4 points: right door; 1 locking bar system 2 points: left door
- Structure type
- Panels and doors built into the structure; Formed from a single section; Vertical uprights joined with top and bottom frames; Perforated structure with a pitch of 25 mm
- Door opening side
- Left (120 °); Right (120 °)
- Door type
- Plain front
- Mounting plate description
- Plain
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front right door
- Number of doors
- Front face: 2 door(s)
- Accessibility for operation
- Sides of enclosure; Front; Rear
- Removable parts
- Door by screws hinge; Mounting plate by screws mounting plate bracket; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Enclosure: grey (RAL 7035); Handle: black (RAL 9005)
- Product weight
- 137.3 kg
- Standards
- IEC 62208; UL; CUL
- NEMA degree of protection
- NEMA 3R/12
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 213.000 cm
- Package 1 Width
- 105.000 cm
- Package 1 Length
- 49.000 cm
- Package 1 Weight
- 149.500 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 2
- Package 2 Height
- 213.000 cm
- Package 2 Width
- 105.000 cm
- Package 2 Length
- 98.000 cm
- Package 2 Weight
- 299.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 1000 mm
- Height
- 2000 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Connectable
- Yes
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486103425
- SAP 1200727715
- Code 83867006
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Pilot light, Harmony XB4,metal, blue, 22mm, universal LED, plain lens, 24V AC DC XB4BVB6
Schneider Electric
Mountings foot in grey plastic m/100 mm pipe
XVZ02
Schneider Electric
Contact element 2NO (ZBE203)
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 40A, A-SI type, 100MA, double terminal A9Z32440
Schneider Electric
Schneider Electric ZBA710 Silicone boot for flush and projecting double-headed push button Ø22, clear
Schneider Electric

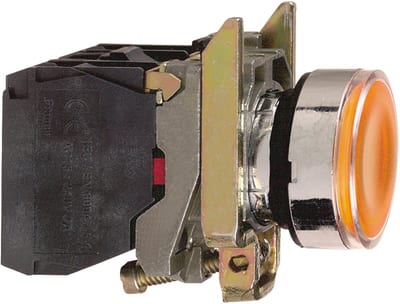

Schneider Electric Illuminated push button, Harmony XB4, metal, orange flush, 22mm, universal LED, plain lens, 1NO + 1NC, 24V AC DC XB4BW35B5
Schneider Electric

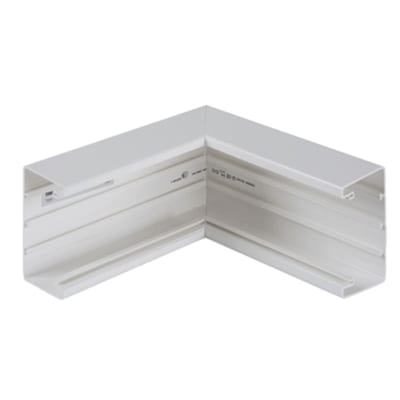

Inner-Corner PVC10 0 PV
5576101
Schneider Electric

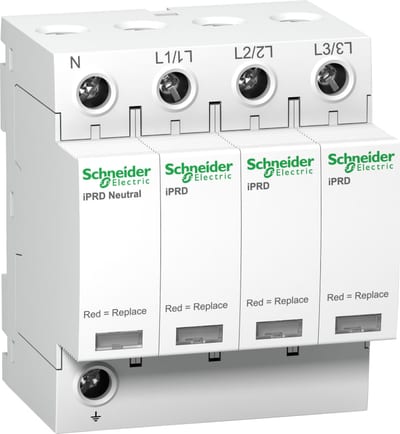

Schneider Electric IPRD40R modular surge arrester - 3P + N - 350V - with remote transfert A9L40601
