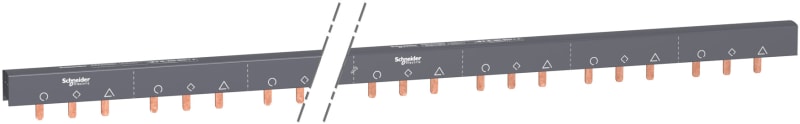

Schneider Electric ACTI9 - comb busbar - 3L wtih Aux - 18 mm pitch - 57 modules - 100A A9XAH357
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9XAH357 Busbar 3 pole for 3 pole circuit breaker. (L1-L-2-L3)+9mm auxiliary contact, length 57 modules.
Technical Specifications
- Manufacturer part number (MPN)
- A9XAH357
- EAN / GTIN
- 3606480485169
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Number of poles
- 3
- Range
- Acti9
- Product or component type
- Comb busbar
- mounting mode
- Horizontal
- Accessory / separate part category
- Connection accessory
- Lines description
- 3L
- Length in 18 mm modules
- 57
- Standards
- EN/IEC 61439-1
- Number of ways
- 16 ways Aux + 3 L
- Distribution type
- Aux L1 L2 L3
- Poles configuration for 1 way
- 1 x 3P
- Connection pitch
- 18 mm
- Connector type
- Tooth
- Distance between way
- 63 mm
- Marking
- L1 L2 L3
- Insulation
- Insulated
- Device presentation
- Cuttable
- Provided equipment
- Set of 10 end piece
- [Ie] rated operational current
- 100 A at 40 °C
- [Ue] rated operational voltage
- 415 V AC
- [Ui] rated insulation voltage
- 500 V AC conforming to IEC 61439-2
- Mounting location
- Top or bottom on tunnel type terminals; Top or bottom on double terminal
- 9 mm pitches
- 114
- Width
- 1000 mm
- Colour
- White (RAL 9003)
- Range compatibility
- Acti9 iC60; Acti9 iK60; Acti9 iID; Acti9 iID K; Acti9 iSW; Acti9 iSW-NA; Multi9 C60
- Fire resistance
- 960 °C ( 30 s ) conforming to IEC 60695-2-1
- Pollution degree
- 3 conforming to IEC 60947-7-1
- IP degree of protection
- IP20 with end-pieces and tooth covers
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480485169
- SAP 1000326906
- Code 81164840
Product Documentation
