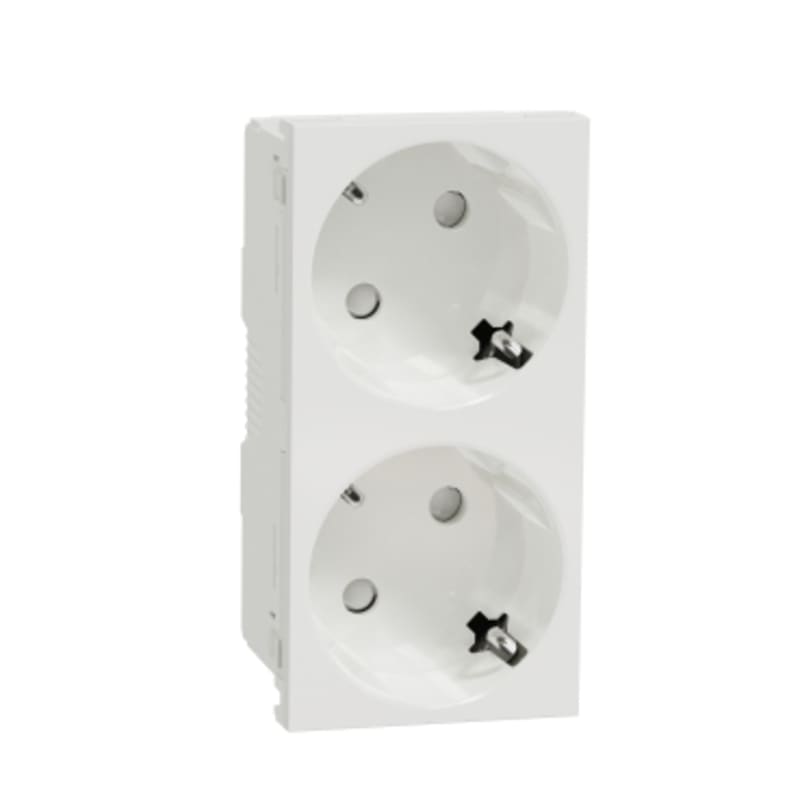

Schneider Electric 2 Socket-outlet, New Unica, mechanism, 2P, 16A, Schuko, with shutter, screwless terminals, glossy, untreated, white NU306618

Schneider Electric NU306618 2 way outlet 2P+E quick-connect terminal white.

Manufacturer part number (MPN)

NU306618 EAN / GTIN: 3606481464125 Sales unit: pcs Package quantity: 10 pcs Range: New Unica Product or component type: Socket-outlet Device presentation: Mechanism with cover plate Device mounting: Flush Socket number: 2 Outlet poles configuration: 2P + E Outlet standard: CEE 7/3 Outlet standard deviation: Schuko Outlet standard description: Side earth Ground lug position: 45° ground lug Rated current: 16 A Condition of use: Indoor Device application: Power supply Cover type: With shutter [Ue] rated operational voltage: 230 V Network type: AC Network frequency: 50/60 Hz Number of modules: 4 modules fixing mode: Clip-in Colour tint: White (RAL 9003) Connections - terminals: Screwless terminals Cable cross section: 0…2.5 mm² cable(s), 2 - cable stiffness: flexible; 0…2.5 mm² cable(s), 2 - cable stiffness: rigid minimum load breaking capacity: 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 Electrical durability: 5000 cycles, cos phi = 0.8 Insulation resistance: > 5 MOhm at 500 V Dielectric strength: 2000 V material: PC: mechanism cover; PC (polycarbonate) GF10 FR: casing Surface finish: Glossy Quantity per set: Set of 1 flow-pack Standards: IEC 60884-1 Product certifications: SEMKO; DEMKO; EAC Embedding depth: 30 mm Depth: 39.4 mm Width: 45 mm Height: 90 mm Product weight: 0.075 kg surface treatment: Untreated resistance to chemical agents: Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane Ambient air temperature for operation: -5…35 °C Ambient air temperature for storage: -5…50 °C IK degree of protection: IK04 IP degree of protection: IP21D Environmental characteristic: Acetone; Bleach; UV resistant; Petrol; Oil; Alcohol; Window-cleaning fluid; Liquid soap Number of Units in Package 1: 1 Number of Units in Package 2: 10 Number of Units in Package 3: 40 Warranty (in months): 18 Nominal current: 16 A Nominal voltage: 230 V Mounting method: Flush-mounted Assembly arrangement: Basic element with central cover plate Colour: White Model: Socket outlet with protective contact CEE 7/3 (type F) Halogen free: Yes Number of units: 2 Lockable: No With hinged lid: No Connection type: Push-in clamp Surface protection: Untreated With signal lamp: No Number of socket outlets: 2 Number of phases: 1 With enhanced contact protection: Yes Frequency: 50–60 Hz With on/off switch: No Protective contact: Yes Label space/information surface: No Eject-mechanism: No material quality: Thermoplastic Rotated central insert: No Overvoltage protection: No Fault current protection: No Special power supply: None Insulated mounting: No Type of fastening: Snap mounting (engagement) Imprint/indication: None RAL-number (similar): 9003 Impact strength: IK04 Concurrently switching neutral conductor: No Transparent: No Surface finishing: Glossy With miniature fuse: No With loop through function: No Suitable for degree of protection (IP): IP21 Device width: 45 mm Device height: 90 mm Device depth: 39.4 mm With function lighting: No With orientation lighting: No With built-in USB power supply: No IFTTT support available: No Number of active contacts (round): 4 Protective earth pin round: No Min. depth of built-in installation box: 40 mm With Wi-Fi signal repeater: No Compatible with Apple HomeKit: No Compatible with Google Assistant: No Compatible with Amazon Alexa: No Metallic colour: No With built-in bluetooth speaker: No Number of loop throughs: 2 Socket outlets phase-separated: No Anti-bacterial treatment: No Country of origin: Spain

HS Code

8536.69

• EAN 3606481464125
• SAP 1200475031
• Code 82548743
