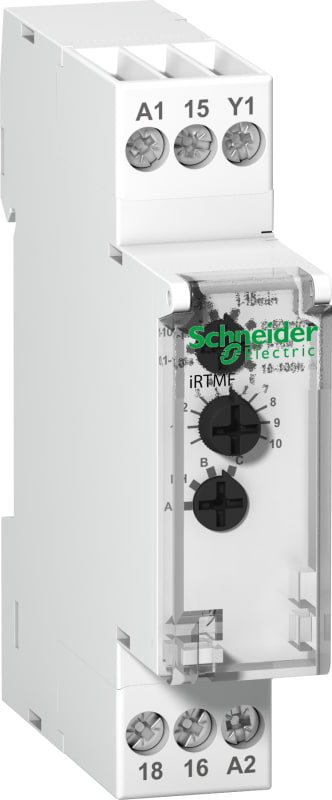

Schneider Electric iRTMF multifunction time delay relay - 1 OC - 12-240 VAC/DC A9E16070

iRTMF multifunction relay. Allows time-delayed switching on and off.

Manufacturer part number (MPN)

A9E16070

EAN / GTIN

3606480377464

Sales unit

pcs

Package quantity

12 pcs

Relay application

Time delay relay

Time delay type

Multifunction

Range

Acti9

Product name

IRT

Device short name

iRTMF

Signal contacts composition

1 C/O

[Ie] rated operational current

8 A at 250 V AC; 8 A at 250 V DC; 0.01 A at 5 V DC

Impulse duration

> 100 ms

Local signalling

LED, flashing for time delay

Type of setting

A B C or H: 4 time delay types selection; Rotary knob: time delay configuration

Time delay range

0.1...360000 s

Accuracy error

+/- 10 %

Repeat accuracy

+/- 0.5 %

[Uc] control circuit voltage

12...240 V AC 50/60 Hz; 12...240 V DC

[Us] rated supply voltage

12...240 V AC at 50/60 Hz; 12...240 V DC

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

9 mm pitches

2

Height

93 mm

Width

18 mm

Depth

72 mm

Product weight

0.065 kg

Colour

White

Mechanical durability

5000000 cycles

Electrical durability

AC-1: 100000 cycles

Undervoltage behaviour

100 ms

Connections - terminals

Tunnel type terminals for 2 cable(s) 1.5 mm² flexible with cable end; Tunnel type terminals for 2 cable(s) 1.5 mm² flexible without cable end; Tunnel type terminals for 2 cable(s) 2.5 mm² rigid with cable end; Tunnel type terminals for 2 cable(s) 2.5 mm² rigid without cable end

IP degree of protection

IP20

Immunity to microbreaks

20 ms

Ambient air temperature for operation

-5…55 °C

Ambient air temperature for storage

-40…70 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.200 cm

Package 1 Width

7.400 cm

Package 1 Length

10.200 cm

Package 1 Weight

83.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

40

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

3.814 kg

Country of origin

ID

Warranty (in months)

18

Degree of protection (IP)

IP20

Voltage type (operating voltage)

AC/DC

Voltage type for actuating

AC/DC

Nominal current

8 A

Number of outputs, undelayed, change-over contact

1

Number of outputs, delayed, change-over contact

1

Type of excitation

Analogue with multi function

Width in number of modular spacings

1

HS Code

8536.49
