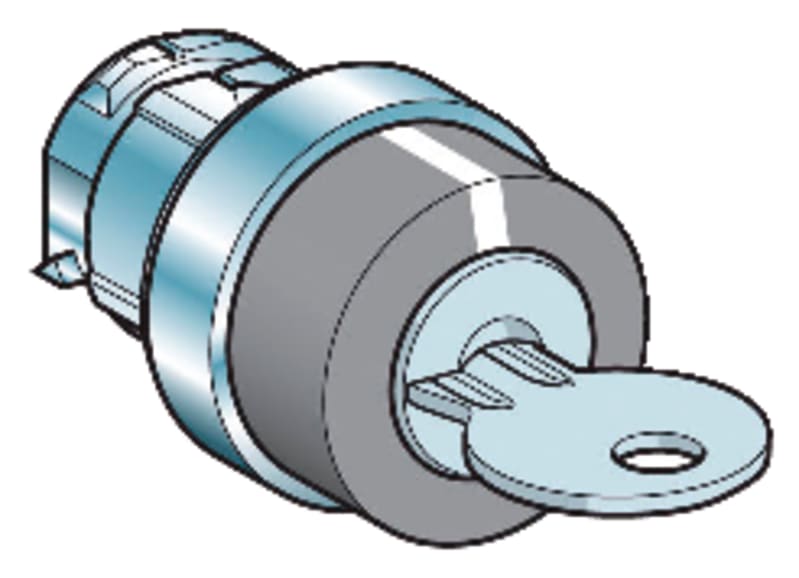

Schneider Electric KAXZ1S161 Harmony K Key Selector Head 60° Key 455 Ø22 mm

Schneider Electric KAXZ1S161 is a cam switch operating head from the Harmony Series K, configured as a key selector with a 60° switching angle for key 455. Ø22 mm mounting hole with a Ø28.5 mm chromium-plated metal bezel, IP65 protection and a mechanical durability of 1,000,000 cycles. Compatible with 12 A and 20 A front-mounting bodies. Operating range -25 to 55 °C. Manufactured in the Czech Republic.

Manufacturer part number (MPN)

KAXZ1S161

EAN / GTIN

3389110980813

Sales unit

pcs

Package quantity

50 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAX

Product compatibility

Front mounting bodies 12 and 20 A by Ø 22 mm hole

Cam switch head type

With bezel Ø 28.5 mm, metal

Type of operator

key key 455

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Switching angle

60 °

Mechanical durability

1000000 cycles

CAD overall width

29 mm

CAD overall height

29 mm

CAD overall depth

21 mm

Product weight

0.065 kg

Compatibility code

KAX

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP65 conforming to IEC 529; IP65 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

1600

Country of origin

CZ

Warranty (in months)

18

Hole diameter

22.5 mm

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP65/IP67

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Type of control element

Key

Switching function latching

No

HS Code

8538.90
