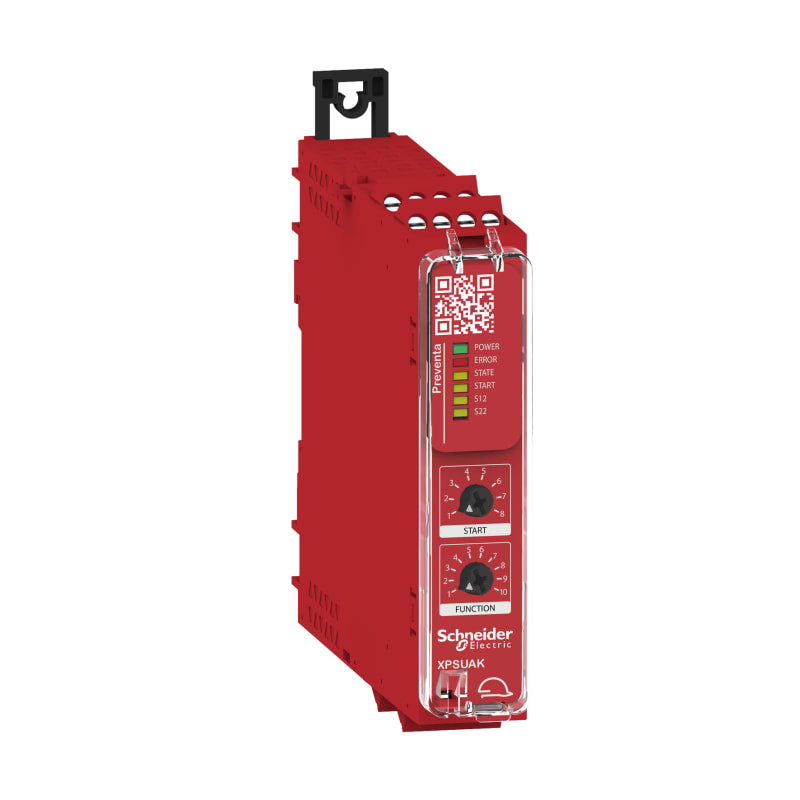

Schneider Electric XPSUAK32AP Preventa Universal Cat.4 Safety Relay 48-240 V Screw

Schneider Electric XPSUAK32AP is a Preventa universal safety module rated Category 4 with two safety-mat inputs and 2 NO + 1 NC outputs, wired via screw terminals for a 48-240 V AC/DC control supply. Supports emergency stop, guard, light-curtain, RFID switch, magnetic switch, pressure-sensitive edge and 4-wire sensing mat monitoring with PNP or PNP/NPN sensor combinations. Reaches PL e / Category 4 per ISO 13849-1 and SIL 3 / SILCL 3 per IEC 61508 and IEC 62061 on the normally open safety contacts.

Manufacturer part number (MPN)

XPSUAK32AP EAN / GTIN: 3606489601676 Sales unit: pcs Package quantity: 16 pcs Voltage: 48-240 V Range of product: Harmony Safety Automation Product or component type: Safety module Safety module name: XPSUAK Safety module application: Monitoring antivalent contacts; For emergency stop, guard and light curtain monitoring; Monitoring of pressure-sensitive 4-wire protective devices Function of module: Emergency stop button with 2 NC contacts; Guard monitoring with 1 or 2 limit switches; Monitoring 2 PNP sensors; Magnetic switch monitoring; Light curtain monitoring; RFID switch; Monitoring of electro-sensitive protection equipment (ESPE); Sensing mat/edges; Proximity sensor monitoring; Monitoring 1 PNP + 1 NPN sensor Safety level: Can reach PL e/category 4 for normally open relay contact conforming to ISO 13849-1; Can reach SILCL 3 for normally open relay contact conforming to IEC 62061; Can reach SIL 3 for normally open relay contact conforming to IEC 61508; Can reach PL c/category 1 for normally closed relay contact conforming to ISO 13849-1; Can reach SILCL 1 for normally closed relay contact conforming to IEC 62061; Can reach SIL 1 for normally closed relay contact conforming to IEC 61508 Safety reliability data: MTTFd > 30 years conforming to ISO 13849-1; Dcavg >= 99 % conforming to ISO 13849-1; PFHd = 1.61E-09 conforming to ISO 13849-1; HFT = 1 conforming to IEC 62061; PFHd = 1.61E-09 conforming to IEC 62061; SFF > 99% conforming to IEC 62061; HFT = 1 conforming to IEC 61508-1; PFHd = 1.61E-09 conforming to IEC 61508-1; SFF > 99% conforming to IEC 61508-1; Type = B conforming to IEC 61508-1 Electrical circuit type: NC pair; PNP pair; Antivalent pair; OSSD pair Connections - terminals: Removable screw terminal block, 0.2...2.5 mm² solid or flexible; Removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor; Removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor; Removable screw terminal block, 2 x 0.25...1 mm² flexible with ferrule without cable end, with bezel; Removable screw terminal block, 2 x 0.5...1.5 mm² flexible with ferrule with cable end, with bezel [Us] rated supply voltage: 48...240 V AC/DC - 10...10 % Synchronisation time between inputs: 0.5 s; 2 s; 4 s Type of start: Automatic/manual/monitored Power consumption in W: 3.0 W 48 V DC Power consumption in VA: 6.5 VA 240 V AC 50/60 Hz Input protection type: Internal, electronic safety outputs: 2 NO + 1 NC safety inputs: 2 safety input 24 V DC 5 mA maximum wire resistance: 500 Ohm Input compatibility: Normally closed circuit conforming to ISO 14119; XC limit switch conforming to ISO 14119; Mechanical contact conforming to ISO 14119; Normally closed circuit conforming to ISO 13850; Antivalent pair conforming to ISO 14119; OSSD pair conforming to IEC 61496-1-2; 3-wire proximity sensors PNP [Ie] rated operational current: 5 A AC-1 for normally open relay contact; 3 A AC-15 for normally open relay contact; 5 A DC-1 for normally open relay contact; 3 A DC-13 for normally open relay contact; 3 A AC-1 for normally closed relay contact; 1 A AC-15 for normally closed relay contact; 3 A DC-1 for normally closed relay contact; 1 A DC-13 for normally closed relay contact control outputs: 3 on/off configurable pulsed output Input/output type: Semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related [Ith] conventional free air thermal current: 8 A Associated fuse rating: 10 A gG for NO relay output circuit conforming to IEC 60947-1 minimum output current: 10 mA for relay output minimum output voltage: 12 V for relay output [Ui] rated insulation voltage: 250 V (pollution degree 2) conforming to IEC 60947-1 [Uimp] rated impulse withstand voltage: 4 kV overvoltage category II conforming to IEC 60947-1 Mounting support: 35 mm symmetrical DIN rail Depth: 120 mm Height: 100 mm Width: 22.5 mm Product weight: 0.200 kg Ambient air temperature for operation: -25…55 °C Standards: IEC 60947-5-1; IEC 61508-1 functional safety standard; IEC 61508-2 functional safety standard; IEC 61508-3 functional safety standard; IEC 61508-4 functional safety standard; IEC 61508-5 functional safety standard; IEC 61508-6 functional safety standard; IEC 61508-7 functional safety standard; ISO 13849-1 functional safety standard; IEC 62061 functional safety standard Product certifications: TÜV; cULus IP degree of protection: IP20 (terminals) conforming to IEC 60529; IP40 (housing) conforming to IEC 60529; IP54 (mounting area) conforming to IEC 60529 Relative humidity: 5…95 % non-condensing Number of Units in Package 1: 1 Number of Units in Package 2: 16 Number of Units in Package 3: 128 Country of origin: ID Warranty (in months): 18 Operating voltage DC: 24 V Power consumption: 1.1 W Supply voltage DC: 24 V Rated switch current: 1.1 A Control voltage 1: 24 V Control voltage 2: 24 V Voltage type (operating voltage): DC Type of control voltage 1: DC Type of control voltage 2: DC Model: Basic device Suitable for monitoring of position switches: Yes Suitable for monitoring of emergency-stop circuits: Yes Suitable for monitoring of valves: No Suitable for monitoring of tactile sensors: No Suitable for monitoring of magnetic switches: Yes Suitable for monitoring of proximity switches: Yes Type of electric connection: Screw connection Suitable for rail mounting: Yes Voltage type for actuating: AC/DC With detachable clamps: Yes Evaluation inputs: 2-channel With start input: Yes With muting function: No With feedback circuit: Yes Number of outputs, safety related, undelayed, with contact: 3 Type of safety according to IEC 61496-1: 4 Stop category according to IEC 60204: 0 Performance level according to EN ISO 13849-1: Level e SIL according to IEC 61508: 3 With approval for BG BIA: No With approval according to UL: Yes

HS Code

8536.41

• EAN 3606489601676
• SAP 1200332010
• Code 82317626
