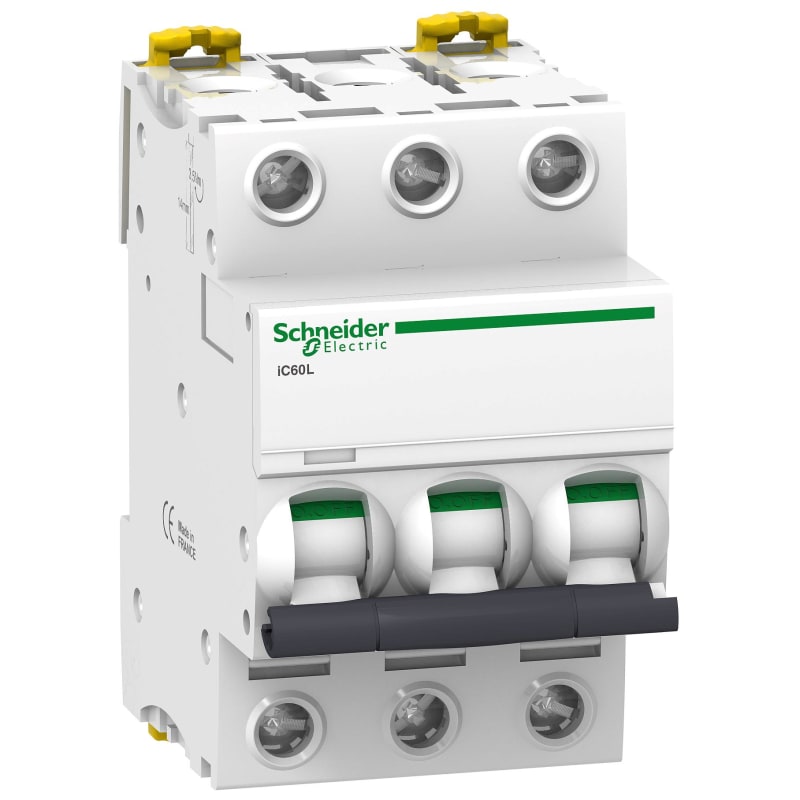

Schneider Electric A9F92301 ACTI9 IC60L Miniature Circuit Breaker 3P 1 A, Curve Z

Schneider Electric A9F92301 is an Acti9 iC60L miniature circuit breaker (MCB), 3P, rated 1 A with a type Z tripping curve. It provides overload and short-circuit protection for final and sub-distribution circuits on 35 mm DIN rail. The type Z magnetic release operates at 3 x In (±20%), suited to electronic and semiconductor circuits requiring high sensitivity. Current-limiting design with rated breaking capacity Icn 15 000 A per IEC/EN 60898-1; ultimate breaking capacity Icu per IEC/EN 60947-2 depends on rating. Rated voltage Ue 230/400 V AC, rated insulation voltage Ui 500 V, rated impulse withstand Uimp 6 kV. Multi-standard to IEC/EN 60898-1 and IEC/EN 60947-2.

Manufacturer part number (MPN)

A9F92301

EAN / GTIN

3606480085406

Product type

Acti9 iC60L miniature circuit breaker (MCB)

Poles

3P

Rated current In

1 A

Tripping curve

type Z (magnetic trip 3 x In (±20%))

Rated operational voltage Ue

230/400 V AC, 50/60 Hz

Rated breaking capacity Icn

15 000 A (IEC/EN 60898-1); current-limiting

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

6 kV

Endurance

20 000 mechanical / 10 000 electrical operations

Degree of protection

IP20 (terminals); IP40 in modular enclosure

Operating temperature

-25 °C to +70 °C

Mounting

35 mm DIN rail (clip-on)

Conforms to

IEC/EN 60898-1, IEC/EN 60947-2

HS code

8536.90

Sales unit

pcs

Package quantity

4 pcs

Range

Acti9

Product name

Acti9 iC60

Product or component type

Miniature circuit-breaker

Device short name

iC60L

Device application

Distribution

Poles description

3P

Number of protected poles

3

[In] rated current

1 A

Network type

AC; DC

Trip unit technology

Thermal-magnetic

Curve code

Z

Utilisation category

Category A conforming to EN/IEC 60947-2

Suitability for isolation

Yes conforming to EN/IEC 60947-2; Yes conforming to EN/IEC 60898-1

Standards

EN/IEC 60947-2; EN/IEC 60898-1

Network frequency

50/60 Hz

[Ue] rated operational voltage

12...133 V AC 50/60 Hz; 220...240 V AC 50/60 Hz; 380...415 V AC 50/60 Hz; 440 V AC 50/60 Hz; <= 180 V DC

Magnetic tripping limit

3 x In +/- 20 %

Breaking capacity

100 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 100 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 100 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 70 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA Icu at <= 180 V DC conforming to EN/IEC 60947-2; 15000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1

[Ics] rated service breaking capacity

100 kA 100 % x Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2; 100 kA 100 % x Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2; 100 kA 100 % x Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2; 70 kA 100 % x Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2; 20 kA 100 % x Icu at <= 180 V DC conforming to EN/IEC 60947-2

Limitation class

3 conforming to EN/IEC 60898-1

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

Yes

Control type

Toggle

Local signalling

Trip indicator

mounting mode

Clip-on; Removable comb busbar installed

Mounting support

35 mm DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

Connection pitch

18 mm between phases

9 mm pitches

6

Height

85 mm

Width

54 mm

Depth

78.5 mm

Product weight

0.375 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Single terminal (top or bottom) , for 1 cable(s) , 1…25 mm², rigid, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible, copper; Single terminal (top or bottom) , for 1 cable(s) , 1…16 mm², flexible with ferrule, copper; Single terminal (top or bottom) , for 1.0 cable(s) , flexible, copper or aluminium, with ring terminal and accessory

Wire stripping length

14 mm for top or bottom connection

Tightening torque

2 N.m top or bottom

Earth-leakage protection

Separate block

IP degree of protection

IP20 conforming to IEC 60529; IP40 in modular enclosure (Insulation class II) conforming to IEC 60529

Pollution degree

3 conforming to EN/IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

Warranty (in months)

18

Standard

IEC/EN 60898-1

HS Code

8536.90
