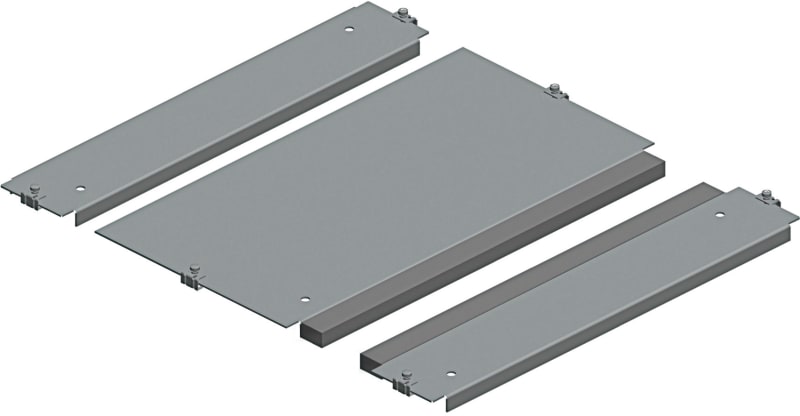

Gland Plate 2-piece 8X6
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYEC861 Flange plate 2-piece 8X6.
Technical Specifications
- Manufacturer part number (MPN)
- NSYEC861
- EAN / GTIN
- 3606485126302
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Electronic application; Multi-purpose
- Range compatibility
- PanelSeT SF; PanelSeT SFM
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Cable entry
- 1 entry
- Device composition
- fixing elements; 1 plate; self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Height
- 30 mm
- Width
- Nominal: 800 mm; Useful: 616 mm
- Depth
- Nominal : 600 mm; Real : 650 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 34.500 cm
- Package 1 Length
- 65.000 cm
- Package 1 Weight
- 4.600 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 30
- Package 2 Height
- 58.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 149.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Surface protection
- Galvanised
- Pre-stamping
- Yes
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126302
- SAP 1000089132
- Code 8581444
