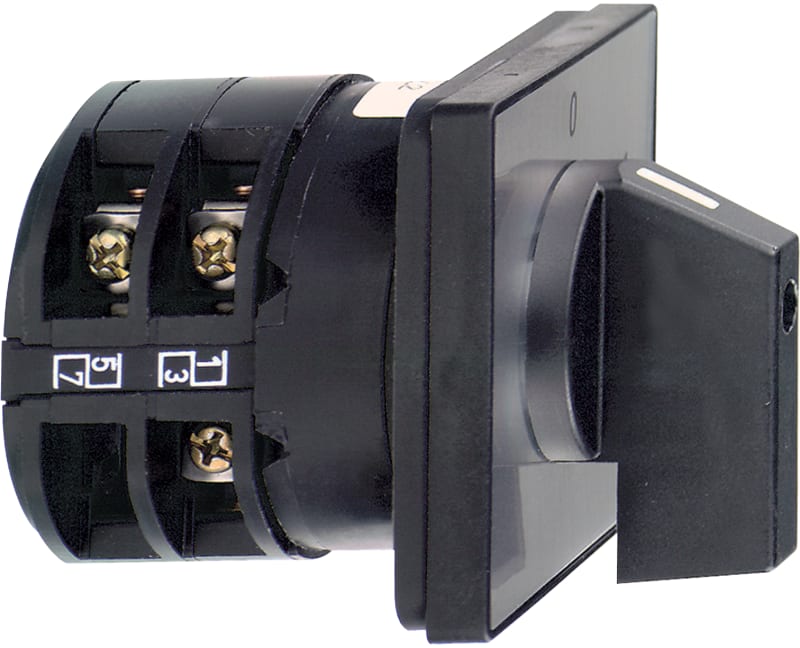

Schneider Electric Harmony K1, K2, Cam reversing switch, 3 poles, with off position, 60° switching angle, 32 A, multi-fixing K30E003WP

Schneider Electric K30E003WP Drei.Ret.Vend.3-Pole.0 Still.

Manufacturer part number (MPN)

K30E003WP

EAN / GTIN

3389110084993

Sales unit

pcs

Package quantity

30 pcs

Number of poles

3

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K30

[Ith] conventional free air thermal current

32 A

Product mounting

Front mounting

fixing mode

4 holes

Cam switch head type

With front plate 64 x 64 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 1 - 0 - 2 black marking

Cam switch function

Reversing switch

Return

Without

Off position

With Off position

Poles description

3P

Switching positions

Right: 0° - 60°; Left: 0° - 300°

IP degree of protection

IP40 conforming to IEC 60529

Switching angle

60 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

Short-circuit current

5000 A

Short-circuit protection

50 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 947-1; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 4 mm²; Captive screw clamp terminals solid, clamping capacity: 2 x 6 mm²

Tightening torque

1.2 N.m

Switching capacity in mA

11000 mA DC at 120 V 2 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 180 V 3 contact(s) for inductive load (T = 50 ms); 11000 mA DC at 60 V 1 contact(s) for inductive load (T = 50 ms); 1200 mA DC at 220 V 1 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 440 V 2 contact(s) for resistive load (T = 1 ms); 1200 mA DC at 660 V 3 contact(s) for resistive load (T = 1 ms); 16000 mA DC at 140 V 3 contact(s) for inductive load (T = 50 ms); 16000 mA DC at 48 V 1 contact(s) for inductive load (T = 50 ms); 16000 mA DC at 95 V 2 contact(s) for inductive load (T = 50 ms); 23000 mA DC at 120 V 2 contact(s) for resistive load (T = 1 ms); 23000 mA DC at 180 V 3 contact(s) for resistive load (T = 1 ms); 23000 mA DC at 60 V 1 contact(s) for resistive load (T = 1 ms); 25000 mA DC at 30 V 1 contact(s) for inductive load (T = 50 ms); 25000 mA DC at 60 V 2 contact(s) for inductive load (T = 50 ms); 25000 mA DC at 90 V 3 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 110 V 1 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 220 V 2 contact(s) for inductive load (T = 50 ms); 3200 mA DC at 330 V 3 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 140 V 3 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 24 V 1 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 24 V 1 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 48 V 1 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 48 V 2 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 48 V 2 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 70 V 3 contact(s) for inductive load (T = 50 ms); 32000 mA DC at 70 V 3 contact(s) for resistive load (T = 1 ms); 32000 mA DC at 95 V 2 contact(s) for resistive load (T = 1 ms); 400 mA DC at 440 V 1 contact(s) for resistive load (T = 1 ms); 400 mA DC at 660 V 2 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 110 V 1 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 220 V 2 contact(s) for resistive load (T = 1 ms); 6500 mA DC at 330 V 3 contact(s) for resistive load (T = 1 ms)

Mechanical durability

300000 cycles

CAD overall width

64 mm

CAD overall height

64 mm

CAD overall depth

106 mm

Product weight

0.385 kg

Standards

IEC 60947-3

Product certifications

CULus 120 V 2 hp 1 phase; CULus 240 V 5 hp 1 phase; CULus 240 V 5 hp 3 phases; CULus 480 V 20 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536; Class II conforming to NF C 20-030

Number of Units in Package 1

1

Number of Units in Package 2

30

Country of origin

AT

Warranty (in months)

18

Model

Reverser

Rated permanent current Iu

32 A

With zero (off) position

Yes

With retraction in 0-position

No

Degree of protection (IP), front side

IP40

Type of electrical connection of main circuit

Screw connection

Type of control element

Long rotary handle

Suitable for floor mounting

No

Suitable for front mounting

Yes

Suitable for distribution board installation

No

Suitable for intermediate mounting

Yes

Complete device in housing

Yes

HS Code

8536.50

• EAN 3389110084993
• SAP 1000071592
• Code 8765622
