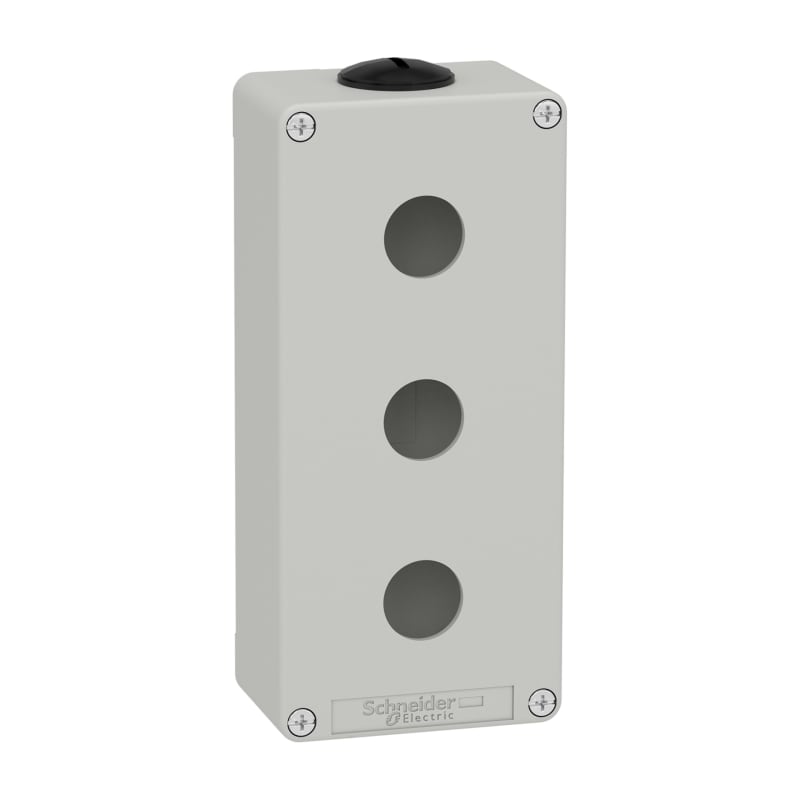

Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M25, 3 cut-outs 22mm, 80 x 175 x 51,5 XAPD3203

Schneider Electric XAPD3203 Push-Button Station empty in light grey metal with 3 x Ø22 mm holes and 2 x M25 cable glands 175 x 80 x 51,5 mm.

Manufacturer part number (MPN)

XAPD3203

EAN / GTIN

3389118321779

Sales unit

pcs

Package quantity

6 pcs

Diameter

22 mm

Range of product

Harmony XAP

Product or component type

Die-cast empty control station

Device short name

XAPD

Product destination

For Ø 22 mm control and signalling units

Product front plate size

80 x 175 mm

Usable depth

49 mm

Number of cut-out

3 cut-outs

Colour of base of enclosure

Grey (RAL 7035)

Colour of cover

Grey (RAL 7035)

Material

Die cast zinc

Sale per indivisible quantity

1

IP degree of protection

IP65 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP66 conforming to EN/IEC 60529 and EN/IEC 60947-5-1; IP69 conforming to EN/IEC 60529 and EN/IEC 60947-5-1

Number of vertical rows

1

Number of horizontal rows

3

Cut-out dimensions

Ø 22 mm

Control station type

Metal

Cable entry

2 x cable gland conforming to ISO

Thread type

M25 x 1.5

CAD overall width

80 mm

CAD overall height

175 mm

CAD overall depth

51.5 mm

Product weight

0.87 kg

Protective treatment

TC

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-25…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

IK degree of protection

IK07 conforming to IEC 62262

Resistance to chemical agents

Special treatment can be obtained on request

Product certifications

EAC

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

MA

Warranty (in months)

18

Width

80 mm

Height

175 mm

Depth

51.5 mm

Diameter openings

22.5 mm

Number of command positions

3

Colour housing cover

Grey

Housing material

Zinc

Construction type housing

Surface mounted housing

HS Code

7907.00

• EAN 3389118321779
• SAP 1200565694
• Code 82952784
