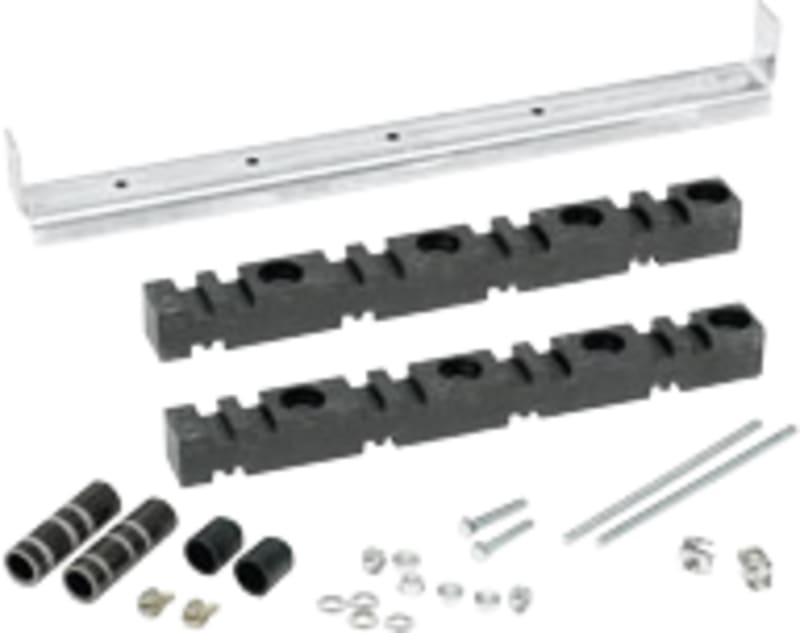

Schneider Electric Horizontal bar support up to 3200 A 800 mm NSYBHS800
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYBHS800 Horizontal support for inntakskinne up to 3200A - Length=800.
Technical Specifications
- Manufacturer part number (MPN)
- NSYBHS800
- EAN / GTIN
- 3606480062902
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Busbar accessory
- Product or component type
- Busbar support
- Anwendung
- Prisma application; Multi-purpose
- Enclosure nominal dimensions
- -
- Mounting location
- On structure of enclosure
- Mounting support
- Vertical uprights
- Busbar position
- Horizontal
- Range compatibility
- PanelSeT PanelSeT SF; Linergy Linergy LGYE; Linergy Linergy BS; Prisma Prisma POLAR WHITE; PanelSeT PanelSeT SFM; PanelSeT PanelSeT SFX
- Cubicle-device connection
- Linergy BS horizontal busbar - fixed
- Device composition
- fixing elements; 1 metal support; 2 insulating bar support
- Quantity per set
- Set of 1
- Material
- Bar support: plastic; Metal support: steel
- Fixing mode
- By fixing element
- Height
- 59.25 mm
- Width
- Fixing centers: 710 mm
- Depth
- 39 mm
- [In] rated current
- 3200 A
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 13.000 cm
- Package 1 Length
- 71.000 cm
- Package 1 Weight
- 1.952 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 50
- Package 2 Height
- 35.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 112.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 3200 A
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480062902
- SAP 1000088917
- Code 8913098
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric LC2D65ABBE TeSys Deca Advanced Reversing Contactor, 3-Pole 65 A AC-3, EverLink, 24 V DC Coil
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250N, 50KA/415VAC, 4 poles, MicroLogic 2.2 trip unit 100A C25N42D100
Schneider Electric
Schneider Electric IEM3310 energy meter - 125 A - 1 pulse O - MID A9MEM3310
Schneider Electric
Castell Lock Mounting Set for MTZ1 Pocket, without Lock
LV833771SP
Schneider Electric
Schneider Electric Coupling Piece Holder, 4 Modules
13361
Schneider Electric

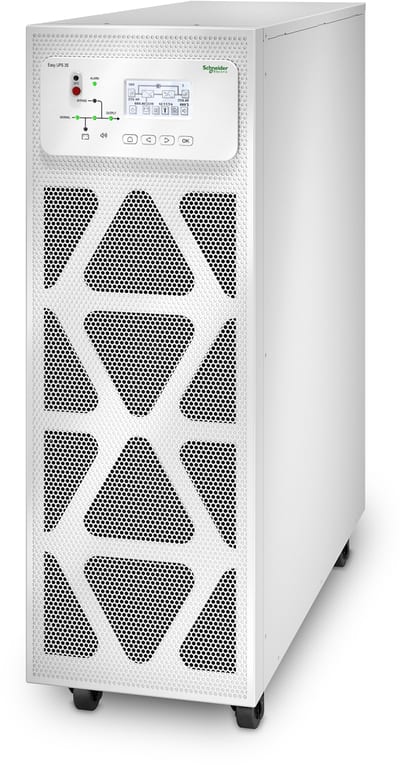

Easy UPS 3S 40 kVA 400 V 3:3
E3SUPS40KH
Schneider Electric
Mounting plate ATS 800-1600A-3P/4P Prisma P
LVS03431
Schneider Electric

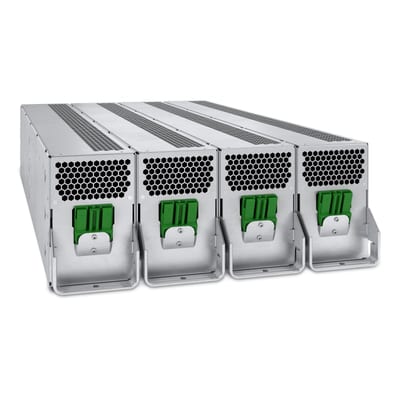

Schneider Electric Galaxy VS Smart Modular Battery String High Capacity 9AH GVSBTH4
