Mounting plate ATS 800-1600A-3P/4P Prisma P
Pricing
Request a quote
We reply within 24 hours
Product Description

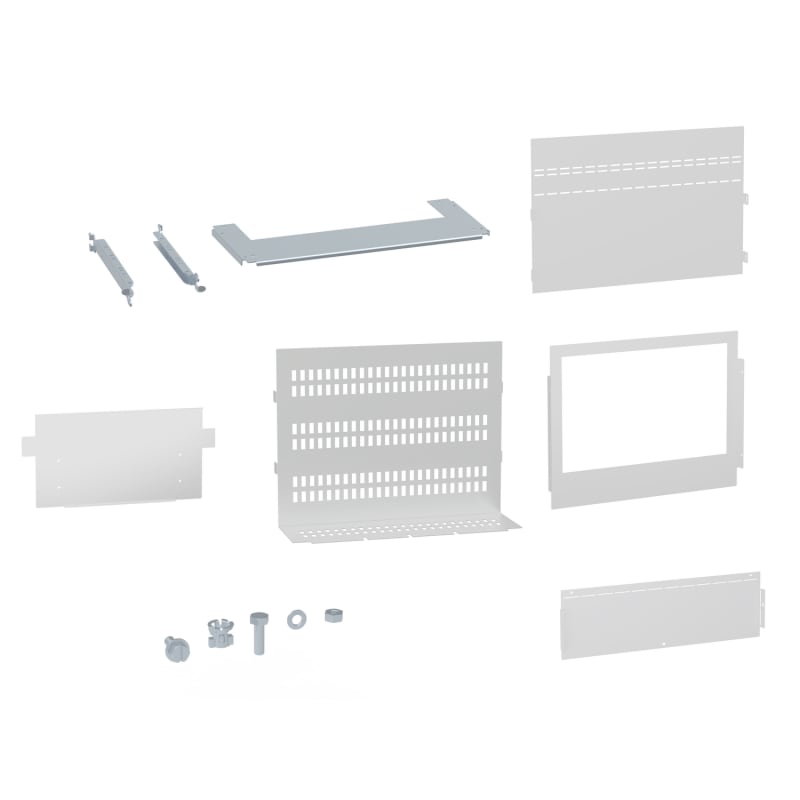

Schneider Electric LVS03431 Mounting plate-PrismaSeT P-TransferPacT 800-1600A-vertical 3P/4P-L650mm-D600mm.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03431
- EAN / GTIN
- 3606487389576
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Mounting plate; Front connection cover
- Accessory / separate part category
- Installation accessory; Interface accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- installation description
- Cubicle - width 650 mm depth 600 mm
- Mounting plate description
- Dedicated
- Type of rail
- Modular
- Poles description
- 1 x 3P or 4P: panel mounting TransferPacT 800...1600 vertical installation
- Standards
- IEC 61439-2
- Product certifications
- IEC
- Material
- Sheet steel; PC (polycarbonate)
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 650 mm
- Height
- 364 mm
- Product weight
- 2.7 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP2X 0...50 °C conforming to IEC 61439-2
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 13.500 cm
- Package 1 Width
- 69.000 cm
- Package 1 Length
- 70.000 cm
- Package 1 Weight
- 8.368 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 5
- Package 2 Height
- 90.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 54.000 kg
- Warranty (in months)
- 18
- Built-in location
- Base
- RAL-number
- 9003
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606487389576
- SAP 1200968753
- Code 84294291
Product Documentation
