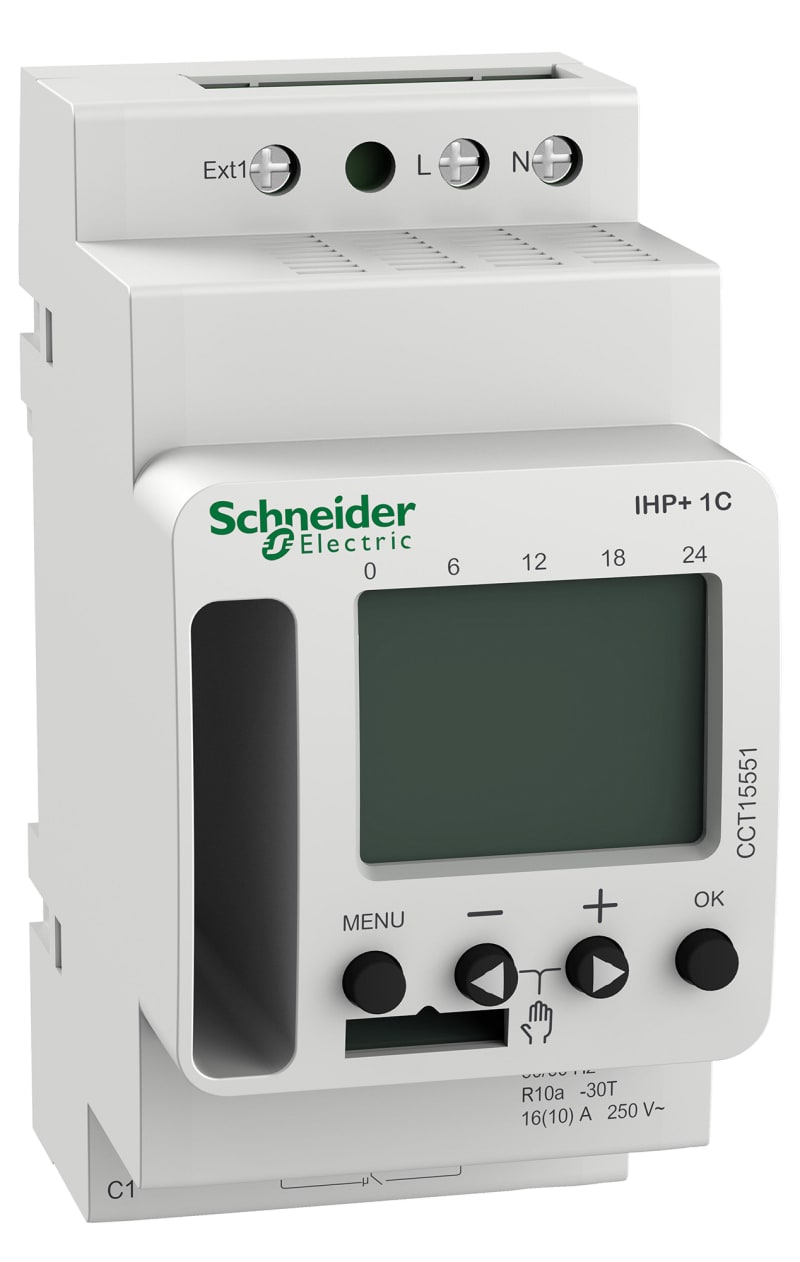

Schneider Electric ACTI9 IHP+ 1C (24H/7D) SMARTw programmable time switch CCT15551

Schneider Electric CCT15551 Acti 9 IHP+ 1C (24h/7d) SMARTw programmerbart weekly timer.

Manufacturer part number (MPN)

CCT15551 EAN / GTIN: 3606489524494 Sales unit: pcs Package quantity: 40 pcs range of product: Acti9 Product name: Acti9 IHP Device short name: IHP+ Product or component type: Programmable digital time switch Device application: Building Number of channels: 1 Available equipment: Memory stick User language: English; French; German; Dutch; Italian; Spanish; Portuguese; Danish; Norwegian; Swedish; Finnish Load type: incandescent lamp: 2600 W; halogen lamp: 2600 W; non-corrected fluorescent tube: 2600 VA; serial-compensated fluorescent tube: 2600 VA; parallel compensated fluorescent lamp: 400 VA (48 µF); compact fluorescent lamp: 400 W; 2 W LED lamp: 200 W Maximum power consumption in W: 0.5 W standby Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Electrical insulation class: Class II Output type: Dry contact Accuracy: +/- 0.25 s/day 25 °C contacts type: C/O Cycle duration: 24 hours + 7 days Maximum number of switchings: 84 minimum interval duration: 1 s Function available: External input for override; Code lock function; Holiday schedules; Automatic winter/summer time changeover; On/off switching times; Pulse programming; Cycle programming; Switch preselection control button type: 4 push-buttons Display type: Backlit LCD Information displayed: Operating time counter Backup time: 10 years time and program saving Type of setting: Weekly programming; Random program 2 Connections - terminals: 2 x 0.5…2.5 mm² screw terminals solid or flexible; 1 x 2.5 mm² screw terminals solid or flexible with sleeve Mounting support: TH35 DIN rail conforming to EN 60715 Width: 45 mm Height: 92.6 mm Depth: 66.7 mm Product weight: 115 g Marking: CE Overvoltage category: Class 3 Function: Pulse programming, random function, external input for override Absence for holidays: Yes Time changeover: Automatic Updated by: None Standards: EN 60730-2-7:2010 Ambient air temperature for operation: -30…55 °C ambient air temp for storage/transportation: -30…70 °C Relative humidity: 90 %, non-condensing IP degree of protection: IP20 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Country of origin: DE Warranty (in months): 18 Shortest switching time channel 1: 1 s Mounting method: DIN rail Voltage type (supply voltage): AC Autonomy in hours: 87600 Autonomy in years: 10 Accuracy per day: 0.25 s Contact type: Change-over contact Number of memory locations: 84 Nominal switching current at 250 V AC: 16 A Degree of protection (IP): IP20 Width in number of modular spacings: 2.5

HS Code

8537.10

• EAN 3606489524494
• SAP 1200314496
• Code 82302459
